Casement hardware

Quick Learner from Charleston
Operators
5 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

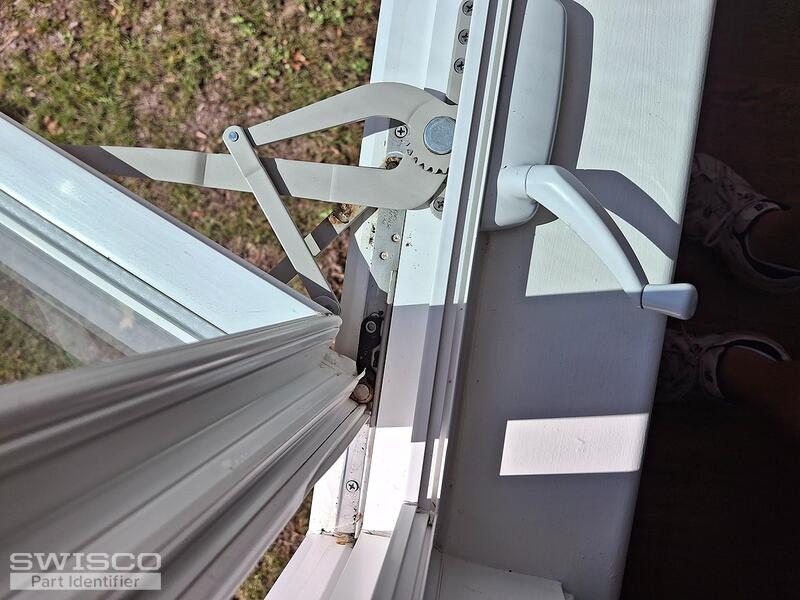

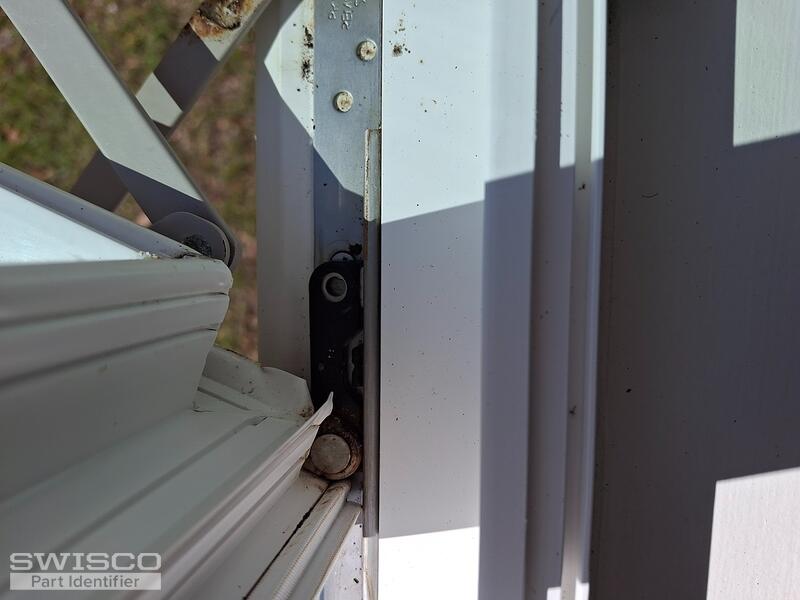

Your operator resembles either the 39-253RB and 39-253LB or the 39-438B and 39-439B. The main difference between the two styles is the guide at the end of the straight arm. Please review the video below for more information.

Also see the 39-451 and 39-452 or the 39-375 and 39-376 cover and handles depending on style preference.

If you also need new hinges, start by reviewing the 36-048 2-bar hinge set that has a 10" sill track. Compare dimensions to confirm a good fit! Please note that both the top and bottom hinges will need to be replaced at the same time. Let us know if you have any questions!
