Casement left side window hinges

Question

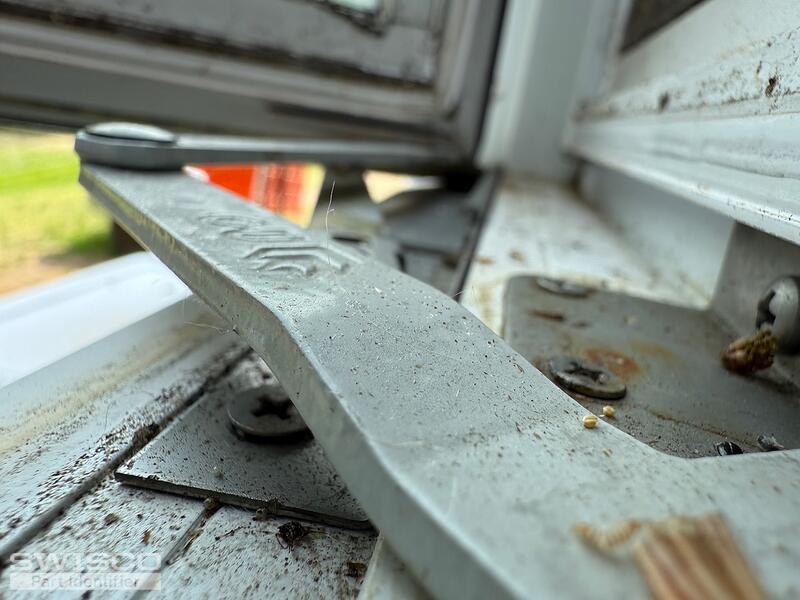

From what I've found I have FERCO brand windows, the arm that attaches to the window frame is 71/2" and the sliding arm is 7". I also need the opening mechanism as the housing is cracked.

Jasmine · Accepted Answer

Thanks for writing in! Your hinge can very likely be replaced with the 39-048 2-Bar Hinge Set. Although, to confirm that this is the right replacement, you'll need to confirm the length of the hinge track.

This set can be used to replace the top and bottom hinges for left and right handed applications.

Detail of 36-048

The operator you have is an older, discontinued GU operator. We suggest using the 39-315 Truth Dyad Operator to replace it. The opposite version is the 39-316. The compatible handle is the 39-114L Crank Handle.

Take a look at the video tutorial below for a detailed explanation on installing the new operators.
