Casement window crank operator

Question

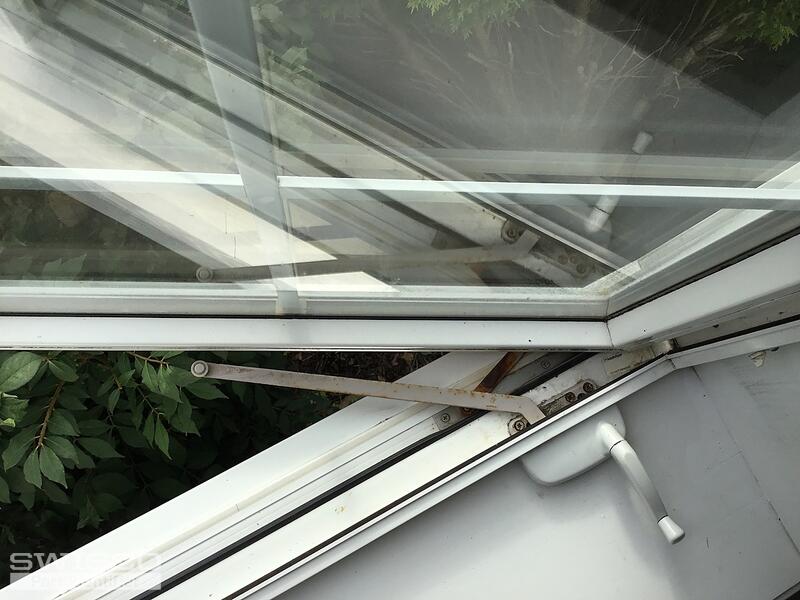

This is from a Kohler window made in Canada.  The opening through which the crank mechanism is inserted is 3 1/2" long by 1/2" high.  The length of the arm from the end to the angled elbow is 12" and the elbow itself is 1 1/2".  We wish to order two (2) of these operators (same dimensions and opening position).

Jasmine · Accepted Answer

Your Kohler window casement operator can be replaced with the 39-013 Casement Window Operator; the opposite version is the 39-014. Double check the diagram below to confirm that this is the correct match.

The compatible handle is the 39-114L Crank Handle.

Dimensions for 39-013

The compatible handle is the 39-114L Crank Handle.

Dimensions for 39-013
