Casement window hardware

A home owner from Two Harbors Minnesota says:

January 3, 2023

The hardware says "Truth" and the number 3084 IL. The longest piece is about 5.5" The piece that attaches to the corner of the window is about 4.5". The shortest piece is about 2/5"

Thumbnail of the uploaded file named Lodge window.jpg

Thumbnail of the uploaded file named Lodge window 2.jpg

Lauren from SWISCO responded:

January 5, 2023

Hello, than you for posting,

It appears you may have an older version of the 39-035 or 39-036 operators, but we will need to see the operator removed where we can see a clear image of the base to confirm. Thank you!

A home owner from Two Harbors Minnesota says:

January 5, 2023

I am out of the country and won't be there until the 14th. I'll send that picture then.

Thanks

Lauren from SWISCO responded:

January 6, 2023

No problem!

A home owner from Two Harbors Minnesota says:

January 14, 2023

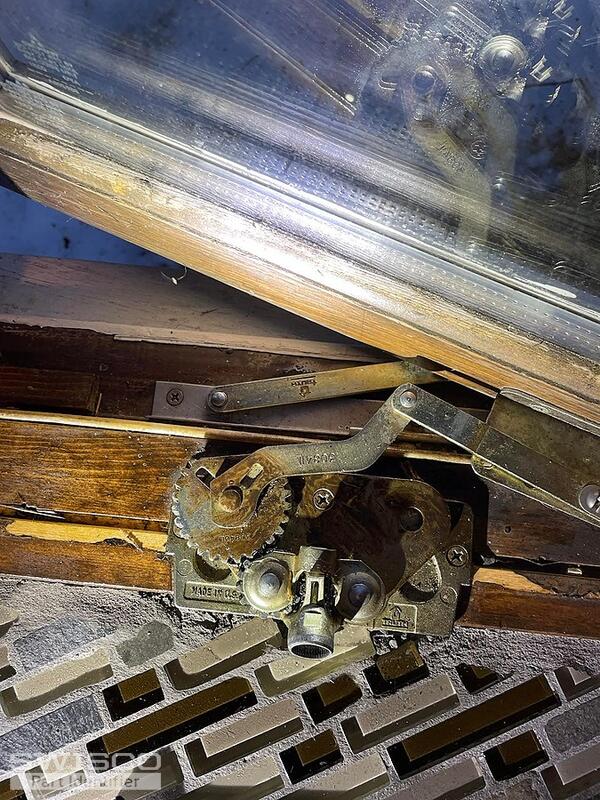

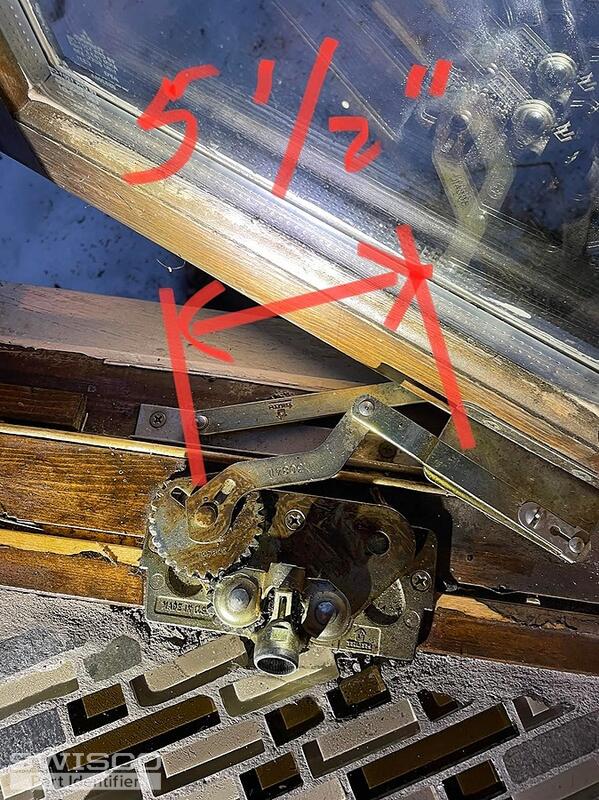

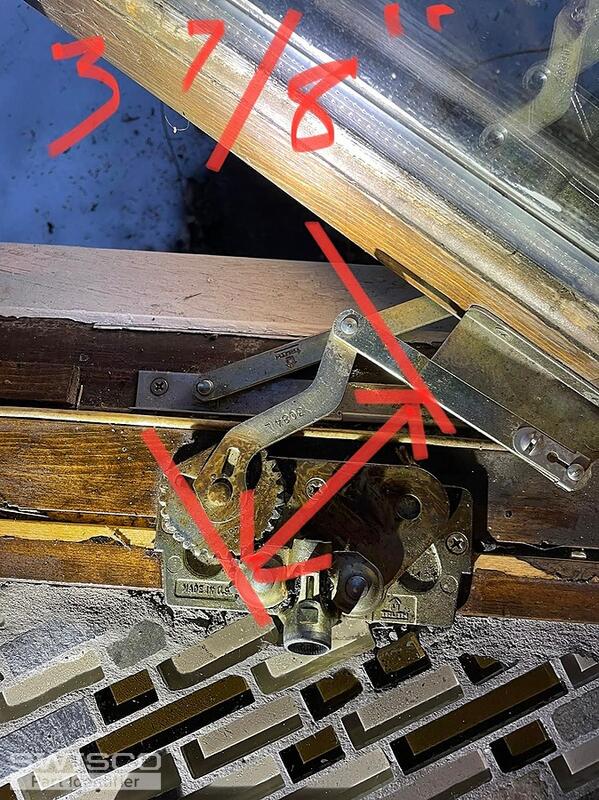

I've added photos of the part. I added dimensions of the arms of the crank and also one photo without any writing on it. If you can get this part, let me know ASAP. This house is sold and I need to fix this window as part of the agreement. Thankyou

Thumbnail of the uploaded file named Window part 1.jpg

Thumbnail of the uploaded file named WIndow part 2.jpg

Thumbnail of the uploaded file named Window part 3.jpg

Thumbnail of the uploaded file named Window part 4.jpg

Tom from SWISCO responded:

January 17, 2023

Hello! I agree with Lauren's assessment: our 39-035 and 39-036 are what you want. Your original operator is an older version of these two Truth brand parts.

The other component you have highlighted in your third photo is the hinge assembly. This is separate from the operator and can be reused if you replace your operators.

A home owner from Two Harbors Minnesota says:

January 17, 2023

Thank you so much for your help!

Tom from SWISCO responded:

January 17, 2023

You're welcome! Please let me know if you had any other questions.
