Channel Balance

A contractor from Palmetto, FL says:
March 25, 2020
Width: 1/2"
Length: 23"
Text: "22 4 FR CALDWELL"

Small Windows: same brand with same hooks needed
No channel balance to measure
Window Height: 12"
Window Width: 24"
Estimated weight: 10lbs?
Thumbnail of the uploaded file named 91195121_535182913854288_1672634288547299328_n.jpg
Thumbnail of the uploaded file named 90950823_211646286716696_7966855220988739584_n.jpg
Thumbnail of the uploaded file named 91099272_210297880228626_211620576341524480_n.jpg

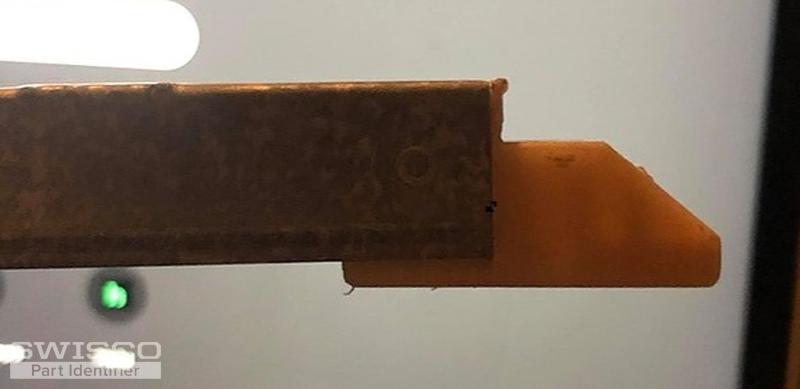

Thumbnail of the uploaded file named 90815016_551904542125303_8490787672858558464_n.jpg
Profile picture of Bob
Bob from SWISCO responded:
March 26, 2020

This looks like either an S351-23 or S390-23. The only difference between these two balances is the 'depth' of the bottom nylon shoe, or the heel-to-toe measurement, so compare both with your old hardware to see what matches best. You will need a stamp option of 2240.
23" Series 351 Channel Balance
23" Series 351 Channel Balance
S351-23
$9.91
23" Series 390 Channel Balance
23" Series 390 Channel Balance
S390-23
$9.59
