Channel Balance 2740 Stamp

Home Owner

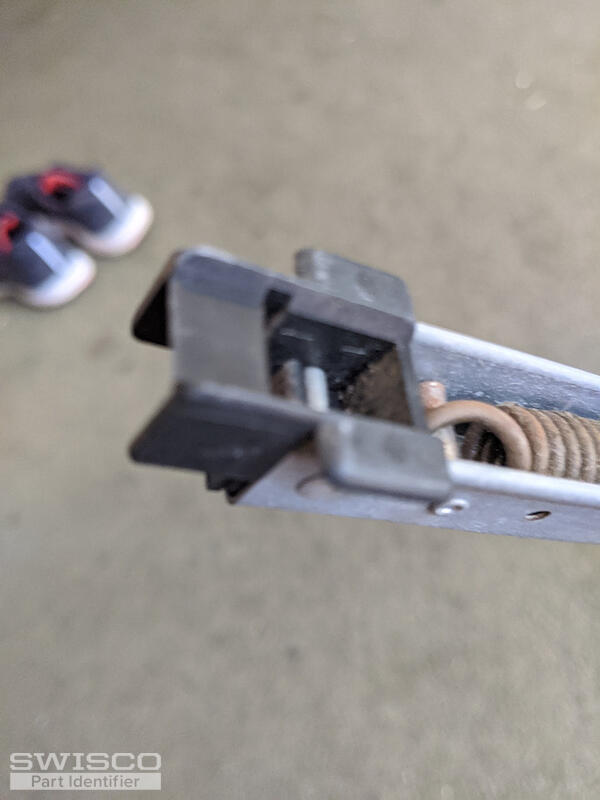

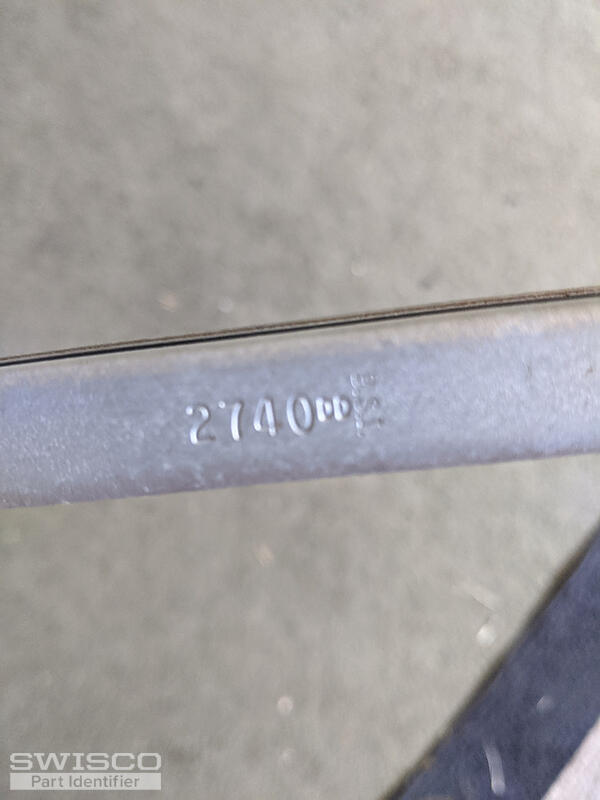

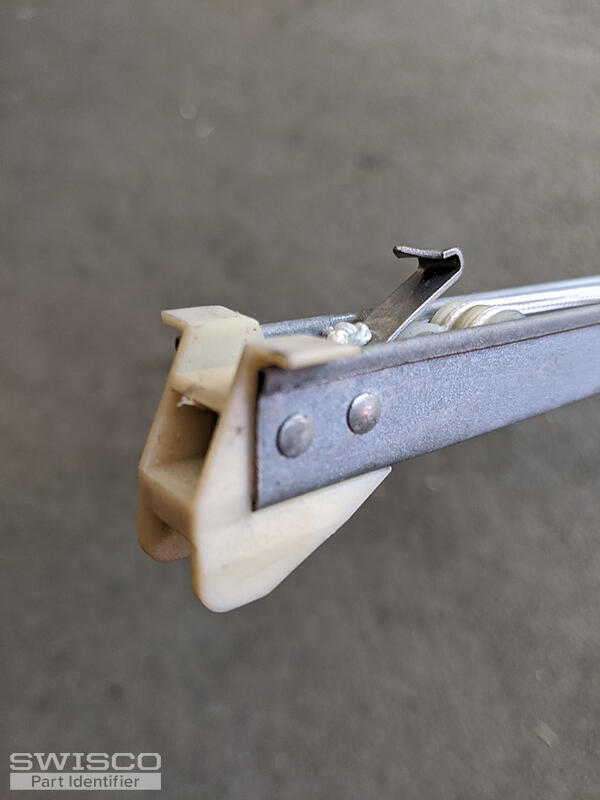

Please identify the correct part number for the ballast in these photos. I also need a part number for the take-out clip. The ballast is 28 inches long. Thank you.

3 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

This appears to be either an S380-28 or S385-28 Channel Balance. The only difference between these two balances is the depth of the bottom nylon shoe, or the 'heel-to-toe' measurement, so compare both with your old hardware to see what matches best. See the diagram below for reference. In either case for a new stamp option choose 2740.

For the take out clips, see if our 16-002 match up.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
