Channel Balance 3140

Hello,

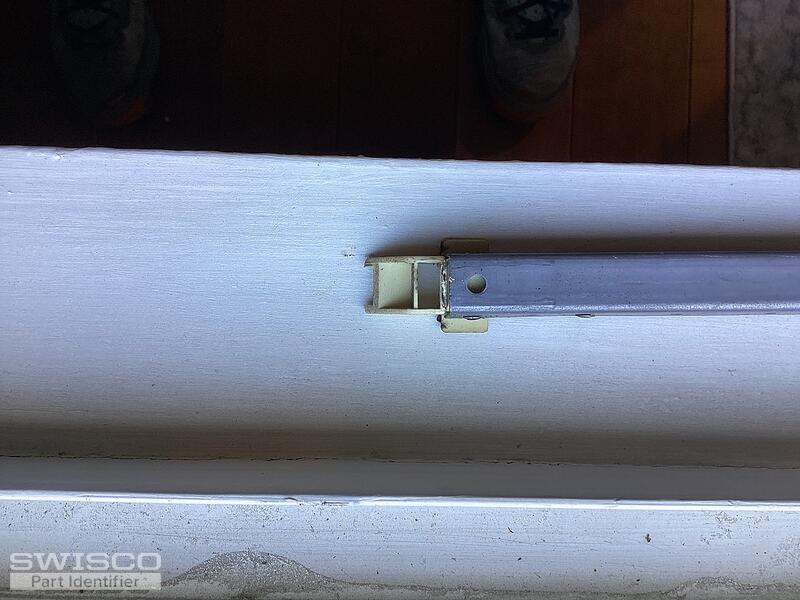

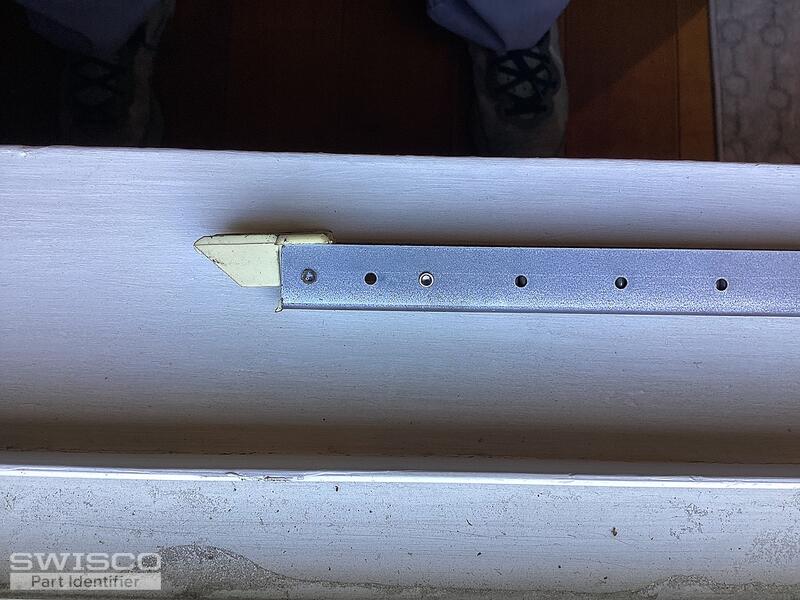

With this combination of attachments, you could have either the S380-32 or S385-32 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3140 spring strength options for your replacement balances.

Comparison of the S378, S380 and S385 balance shoes.

As for your take-out clip, see the 16-002 commonly used with these non-tilt window balances. Thank you and let us know if you have any other questions or concerns.

Alternate image for 16-002

Great, then you would need the S385-32 with 3140 strength options to support a sash between 23-28 lbs. Just let us know if you need anything else.

It is important to use strength options that support your exact sash weight. If your window sash weighs 28 pounds, 3150 balances would be too strong, which could prevent the sash from closing properly or even damaging the hardware.
