Confirming if I need the Series 795 balance

Home Owner from Clarksburg, MD
Aug 29, 2017 7:14 pm

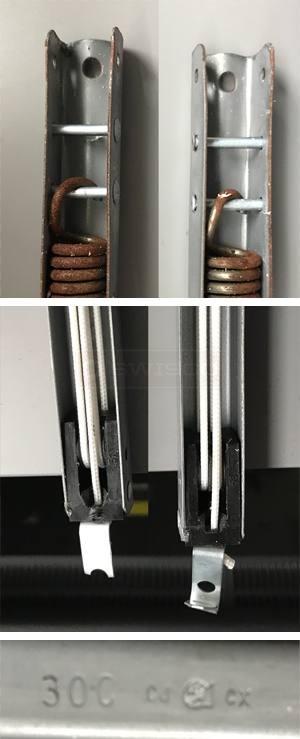

Hi, I am looking for the correct channel balance to purchase. The only marking on my current channel balance is 30C - I am guessing the 30" Series 795 Channel Balance is the correct item to purchase, but I would like to know for sure. Thank you!

4 Replies

Paul from SWISCO
Sep 5, 2017 10:38 am


The company that made your tilt balance has gone out of business. I believe you have a Patriot window that uses our S795-30 tilt balance. However, one important thing to keep in mind is that our top balance clip is screwed on, but I can't tell if yours is screwed on or hooked on. If it is hooked on, we will need to custom make a special S795-30 with a 15-198 hook at the top. Let me know! Also keep in mind that this balance comes with a 1-1/4" wide shoe. I would double check the width of your shoe just to be sure it's right.

Home Owner from Clarksburg, MD
Sep 21, 2017 2:16 pm
Hi There, sorry I dropped the ball on replying. The top balance clip is, I believe, clipped on. There's a hole that it slips into. How can I measure the width of my shoe? I'm not sure what that is.

Tom from SWISCO
Sep 26, 2017 1:08 pm


Thanks! Then we'll need to custom make your balance with a 15-198 hook at the top.
The shoe should be a "T" shaped piece of plastic that attaches to the bottom of the channel. It's what connects the balance to the sash and should look like either our 15-195 (1-1/4" wide) or 15-194 (1" wide). Since your balance has to be custom made, I also need to know how many you need.
The shoe should be a "T" shaped piece of plastic that attaches to the bottom of the channel. It's what connects the balance to the sash and should look like either our 15-195 (1-1/4" wide) or 15-194 (1" wide). Since your balance has to be custom made, I also need to know how many you need.
