Channel Balance Identification

Quick Learner from Boerne, Texas
Jun 10, 2024 4:05 pm
Can you help me in identifying the replacement materials for this balance? Thank you.
t lock shoe assembly t lock shoe assembly hook attachment 27B stamped channel
4 user uploaded images
4 Replies
Emily
Emily from SWISCO
Jun 12, 2024 12:44 pm
SWISCO
EXPERT

Hello there!

I'm afraid we don't sell a direct match for this balance configuration. At one point, we used to recommend the Series 795 and 15-272 shoe but we never got confirmation if it worked. What makes things trickier is the fact that your old balance uses the 15-198 hook for installation. Before we go any further, can you show us a photo of the hole at the top of the window where your old hook installs?

Quick Learner from Boerne, Texas
Jun 12, 2024 1:26 pm

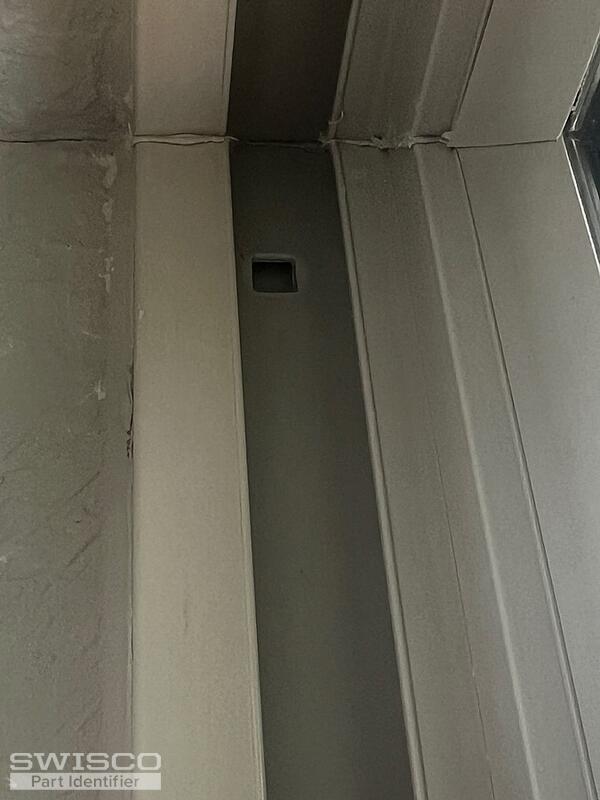

Sure thing, it is a square hole (attached picture)
square hole
1 user uploaded images
Quick Learner from Boerne, Texas
Jun 12, 2024 1:27 pm
Attached
square hole
1 user uploaded images
Emily
Emily from SWISCO
Jun 12, 2024 3:41 pm
SWISCO
EXPERT

Thank you! Since the hole is squared-shaped, you could consider the S795-27 and 26-200 screw plug. The video below will go over the details. We can't promise it will work but it is the best option we can offer. Note that the 15-272 shoe won't fit in the metal channel but we hope that the S795 t-lock shoe can work as is.

Please let us know if you decide to try this out! We'd be interested in knowing how the repair goes.
