Channel Balance Replacement

A quick learner from Alexandria, VA says:
April 4, 2023
Hi,

I need to replace a few channel balances on my windows. Looking thru your site I think they are the 36" Series 795 but I would like some confirmation. The balance on the window are 36" long, measured as the photo on the 795.

Thank you,
Robert

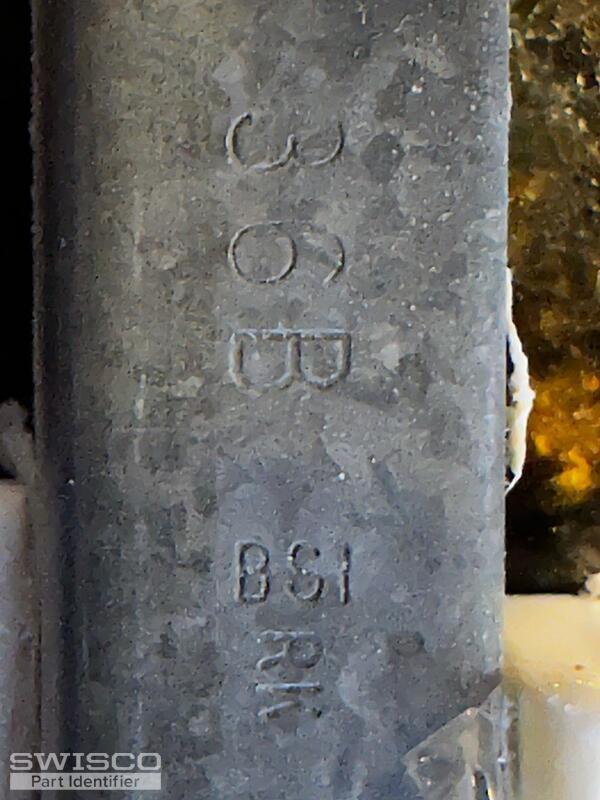

Thumbnail of the uploaded file named Marking.JPG

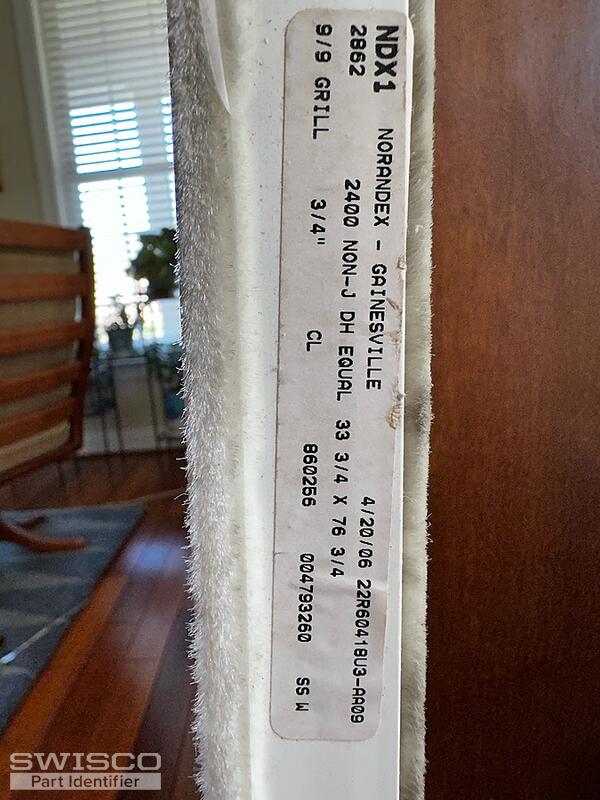

Thumbnail of the uploaded file named WindowSticker.JPG

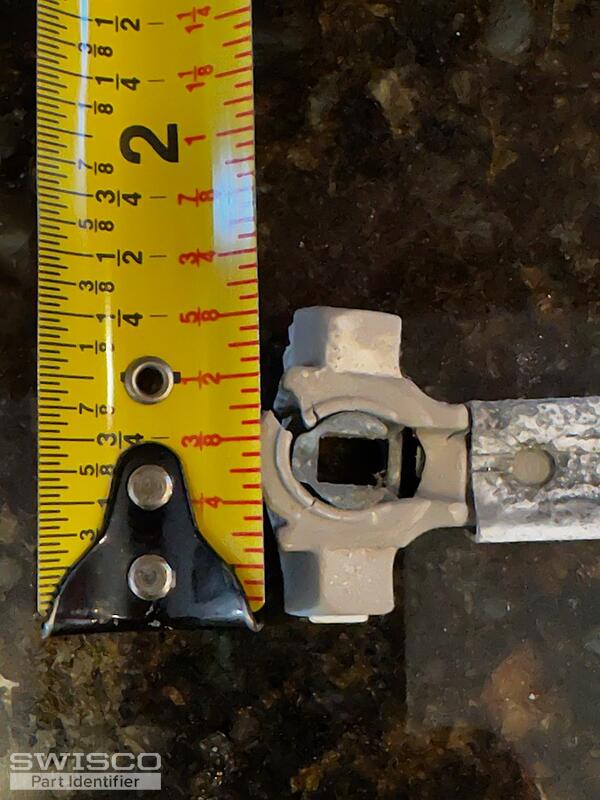

Thumbnail of the uploaded file named Shoe.JPG

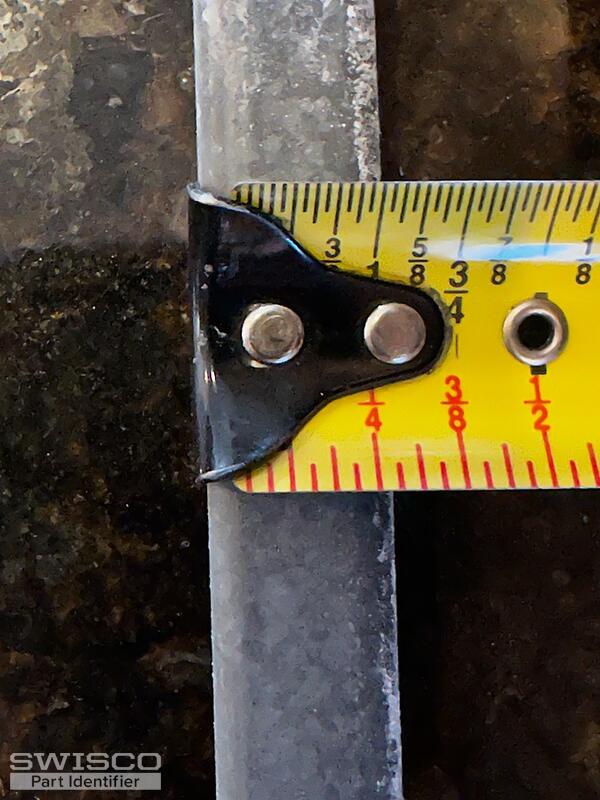

Thumbnail of the uploaded file named Channel-Deep.JPG

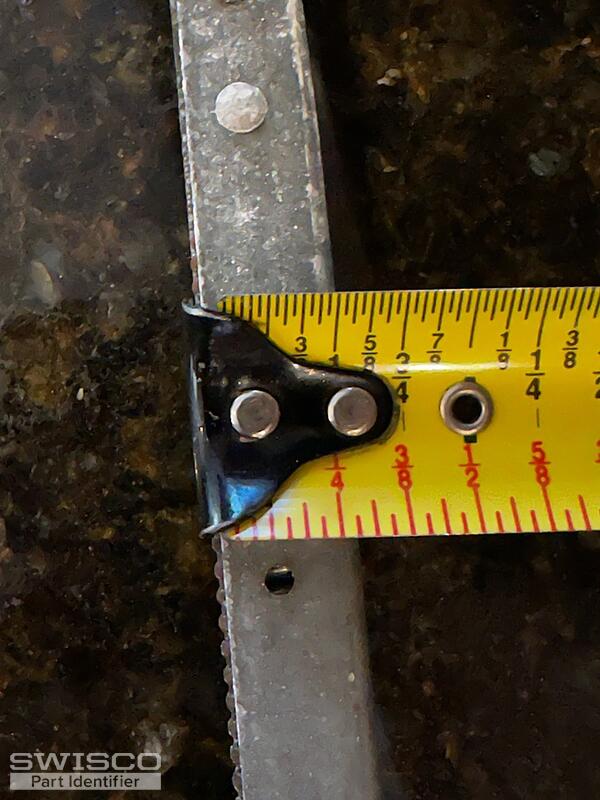

Thumbnail of the uploaded file named Channel-Wide.JPG
Profile picture of Emily
Emily from SWISCO responded:
April 5, 2023

Hey there, Robert!

I agree with the part you picked out. Our S795-36 with the 36B strength option looks like a great match for your hardware. If the specifications match up you should be good to go!

Please note, this balance comes attached with the 15-195 shoe by default but if yours has an open cam then you would want the 15-195B instead (sold separately).
36" Series 795 Channel Balance
36" Series 795 Channel Balance
S795-36
$18.19
1-1/4" T-Lock Balance Shoe, Closed Cam
1-1/4" T-Lock Balance Shoe, Closed Cam
15-195
$1.92
1-1/4" T-Lock Balance Shoe, Open Cam
1-1/4" T-Lock Balance Shoe, Open Cam
15-195B
$1.97
