I have a few sizes of balances that need replacing. I measured two sizes and want to make sure I get the correct ones. Attached are pictures of one: length 29", 1/2" frame and 2830 on the frame as shown. I believe they would be your (S395-29 / 2830). I also have a 23" with 2220 on the frame. Can you tell me if these are available? I have a few more but have to measure first. All the windows have the same style ends. I will need take out clips for some as well as top balance wings that are broken or missing. I see those as 16-002 and 19-005.
I guess the pictures wouldn't load.
Thanks,Glenn
Channel Balance replacements
Home Owner from CA
Jul 4, 2025 5:20 pm
6 Replies
Emily from SWISCO
Jul 8, 2025 9:20 am
Hi there Glenn.
Thank you for reaching out to us. It looks like your photos didn't come through. I'm sorry about that, our part identifier had some hiccups over the weekend. Can you re-upload them here for our review?
Home Owner from CA
Jul 8, 2025 11:09 am

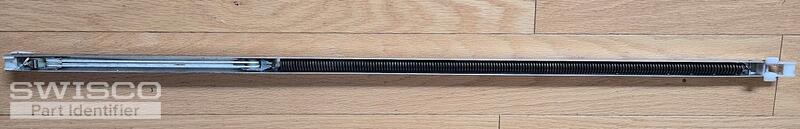

I'll try this again. Photos attached.
Thanks, Glenn
Thanks, Glenn
4 user uploaded images
Emily from SWISCO
Jul 8, 2025 12:50 pm
Thank you kindly! Your balance indeed looks like a match for the S395-29 with the 2830 stamp option. For the S395-23, you'd want to select the 2220 stamp based on your old one. Note that the bottom shoe for the Series 395 is 1-1/8" deep, so you'll want to make sure yours is too.
Please let us know if you have any questions.
Home Owner from CA
Jul 11, 2025 10:58 am
I went back to measure the bottom shoe and it is correct. I will place my order for these and then take more measurements on two other windows we have and order for them. Thanks for the heads up. I will be ordering some missing/broken take out clips as well.
Glenn
Glenn
Emily from SWISCO
Jul 14, 2025 8:16 am
Thank you for your order, Glenn. We really appreciate it. Good luck with the repair!
