Channel Balancer for Del Webb home in Sun City built 1975

A quick learner from Sun City, Arizona says:
October 26, 2020

Hi,

Need 8 of these for 4 windows. House is a Del Webb in Sun City Arizona, built in 1975. Couldn't find a match from your 1/2" wide channel balances. The windows are non-tilt vertical double-hung with aluminum frame, dual pane. Dimensions approximately 71" by 23". The guide stop tab for the screwdriver to pop out is about 3 inches from the top of the rail the window runs up in.

Please let me know what these are and if you have them in stock. I have more pix if it helps figure it out. Thanks!

John

Thumbnail of the uploaded file named IMG_20201026_101958.jpg
Thumbnail of the uploaded file named IMG_20201026_102027.jpg
Thumbnail of the uploaded file named IMG_20201026_102030.jpg

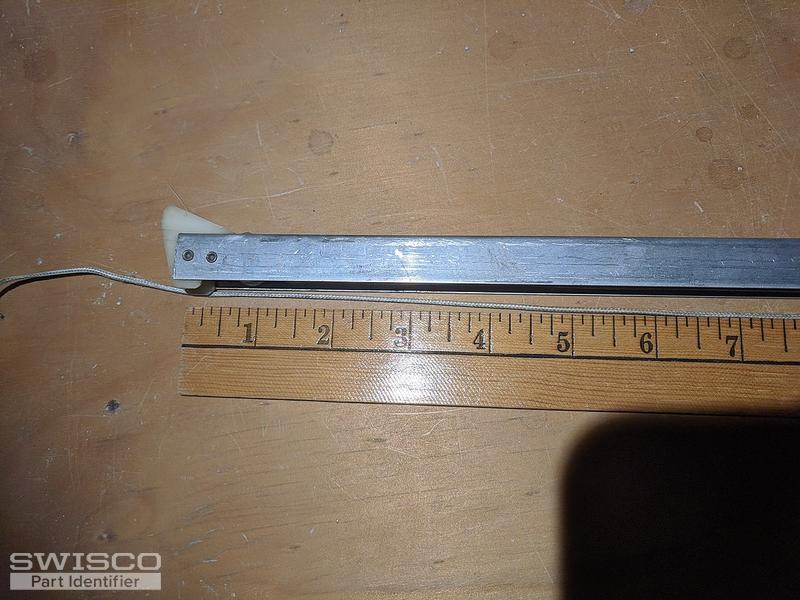

Thumbnail of the uploaded file named IMG_20201026_152954.jpg

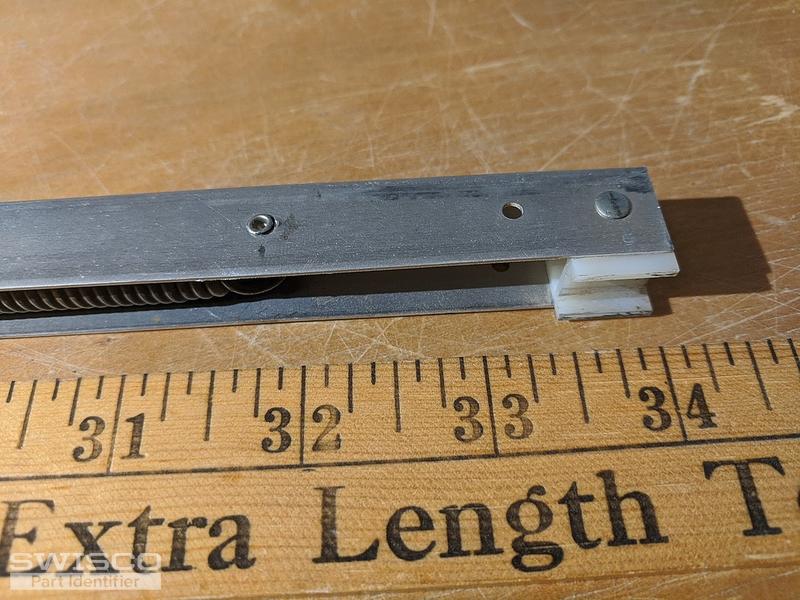

Thumbnail of the uploaded file named IMG_20201026_153002.jpg
A quick learner from Sun City, Arizona says:
October 28, 2020

Hi,

Got more pix of the clip and the rail holes for the clip. Attached. Thanks.

John

Profile picture of Casey
Casey from SWISCO responded:
October 29, 2020

Hi John,

We'd be happy to help but these balances will need to be custom made. To move forward, we'll need you to measure the depth of the bottom attachment as shown below.

Unfortunately, we do not carry a direct replacement for your top sash guide but take a look at our 18-010 and see how the dimensions compare to yours. Also, take a look at the 16-002 take out clip if you need those as well ans compare the dimensions to the cut out in your jamb. Thank you!

Comparison of 15-001 & 15-002
Comparison of 15-001 & 15-002
A quick learner from Sun City, Arizona says:
October 29, 2020
Hi,

You folks custom make them? And what is the cost, please?

Thanks!
John
Profile picture of Casey
Casey from SWISCO responded:
October 29, 2020

We can custom make it but as I mentioned, we'll need you to measure the depth of the bottom attachment to determine if your balance uses the 15-001 or 15-002.
A quick learner from Sun City, Arizona says:
October 30, 2020

Hi again,

How much will these cost to custom build?

Thanks,

John

Profile picture of Casey
Casey from SWISCO responded:
October 30, 2020

In order to price quote these balances for you, we need to know if your balance uses the 15-001 or 15-002.
A quick learner from Sun City, Arizona says:
October 30, 2020
Looks like the 15-002.
Profile picture of Casey
Casey from SWISCO responded:
October 30, 2020

Thanks for confirming, we just sent over an order link and price quote in a separate email for you to review. Take a look and let us know if you need anything else. Thank you!
A quick learner from Sun City, Arizona says:
October 31, 2020
Okay - updates. The bottom attachment matches the 15-001 (NOT the 15-002 like I shared before).

Here are all the dimensions:

Number on back: 33 30
Length of metal channel: 34 inches
Length of metal channel and bottom attachment (total length): 34 1/4 inches
Width of metal channel: ½ inch
Depth of metal channel: 9/16 inch

Depth of top of channel balance with top plastic sleeve: 11/16 inch
Length of top plastic sleeve attachment: ½ inch

Depth of bottom attachment plastic fitting: 1 1/8 inch
Width of bottom attachment plastic fitting: 1/2 inch
Length of bottom attachment plastic fitting: 1 inch
(Bottom attachment looks like the 15-001)

Hook Width: ¼ inch
Hook Length (including arc): 7/8 inch
Hook insert tab length: ¼ inch

Want to custom order four (4) in the first batch. If they work, will order another batch of four (4).

Thanks,
John
A quick learner from Sun City, Arizona says:
October 31, 2020
More pix of the top and bottom attachments:
Profile picture of Casey
Casey from SWISCO responded:
November 2, 2020

No problem, we just sent over an updated order link for four of these balances with the 15-001 bottom attachment. Thank you!
A quick learner from Sun City, Arizona says:
November 10, 2020

Hi,

Received my balances yesterday. Should I oil them or the tracks before installation? And if so, what type of oil, please? I have some silicon lubricant.

Any other things to do before install?

Thanks,

John

Profile picture of Casey
Casey from SWISCO responded:
November 10, 2020

Our balances come ready for installation, so there's really nothing that you need to do to prep them. If the balance becomes a bit noisy or stick a few years down the line, you can spray the springs with silicone spray for smoother operation.
A quick learner from Sun City, Arizona says:
November 11, 2020

Those balances worked like a charm! I was nervous since they were custom but they fit right in and I have two windows like new right now. Thanks!

Used the previous link and just ordered four more for the two identical windows in the other bedroom (3 pm AZ time, 11/11/2020).

Sincerely,

John

Profile picture of Casey
Casey from SWISCO responded:
November 12, 2020

I'm happy to hear it! Please let us know if there is anything else that we can help you with.
