Channel Balencer and attachment

Handy Person from West Springfield,MA

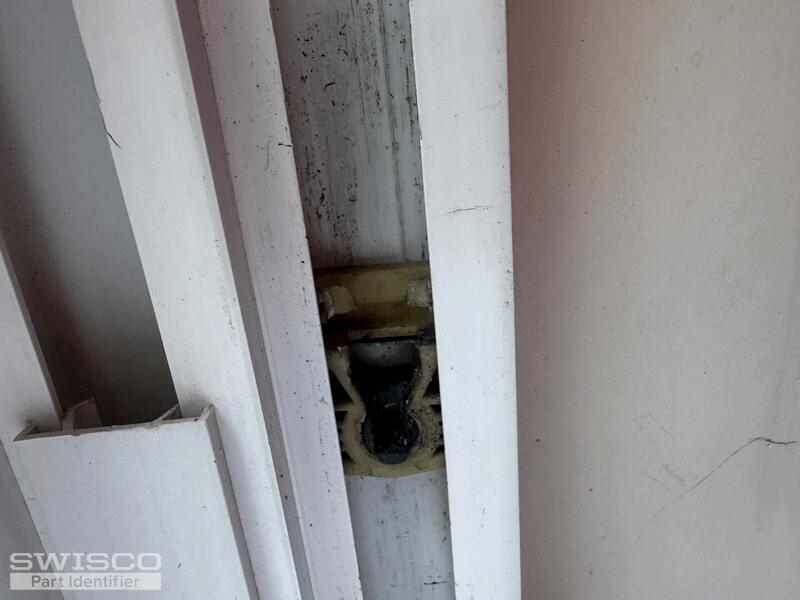

Just one side is broken can it be replaced?
4 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

We can supply this balance, but before I recommend anything I'd like to see a clear photo of the clip at the end of the cord, at the top. I'd also like to see a picture of the hole in the window frame where it installs. Would that be possible?

Handy Person from West Springfield,MA

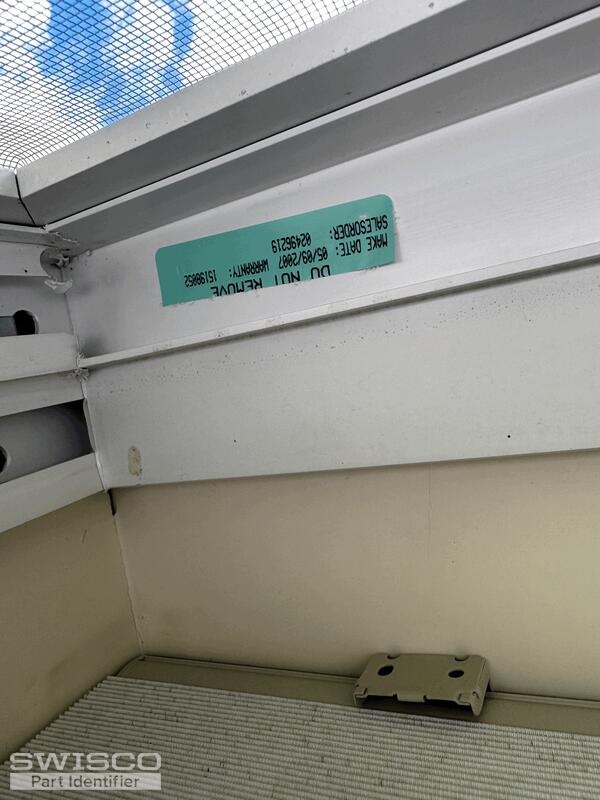

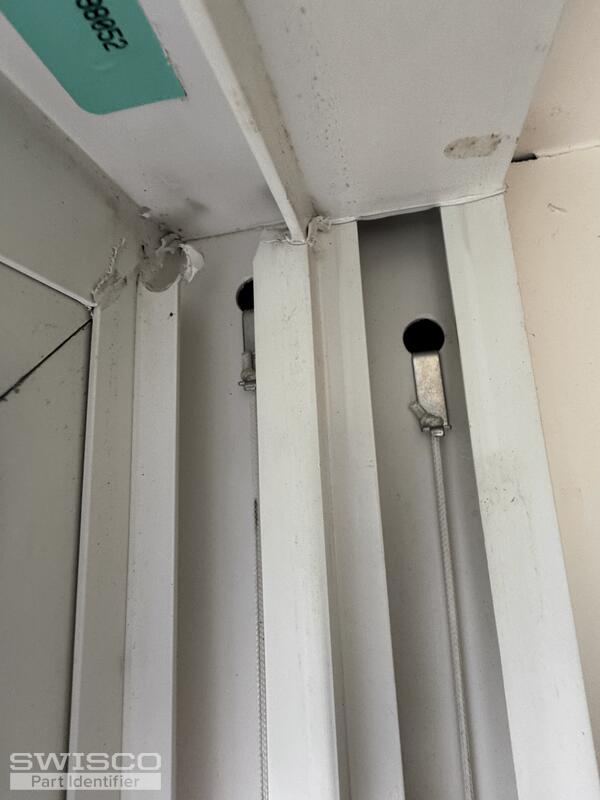

Here are pictures also a  sticker I found and the the hole location. Hope this helps?
2 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thank you, this information is a huge help. We can supply this balance, but unfortunately it will need to be a custom order due to the style of the hole in the track.

To summarize what we're doing, it will be a Series 795 channel balance but with the top screw clip swapped out for our 15-198 hook, and the bottom T shoe swapped out for our 15-224 peg.

Does that look good to you? If so, please tell me the length of the metal channel and the stamp printed on it. I also need to know how many you wanted to buy. Once I have that data, I'll email you a purchase link and price quote for that quantity. These custom balances will come pre-assembled and ready to install out of the box.

If you're handy, you can also buy these parts separately and assemble them yourself. It's ultimately up to you! Just let me know if you wanted us to make them for you here in our shop and we can get the ball rolling.
