Channel Window Replacement

Question

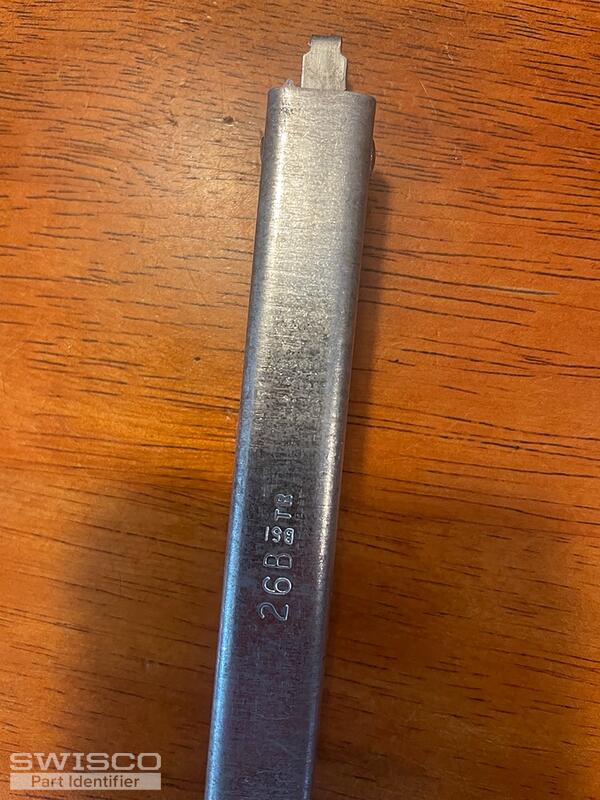

I have watched the videos and have gone through the process on your website to help identify the channel balance replacement that is needed. My balance is for a tilt window, with a plane channel balance. The balance that I have is stamped 26B, so it looks to match the Series 795. I have two questions. First my mount at the top is a circle hole instead of a square, so the 26-200 screw plug will not work. Second, the T-lock balance is stuck in the channel. How best would you recommend to remove the T-lock balance?

Jasmine · Accepted Answer

Thanks for reaching out to us! It sounds like you'll need the S795-26 Channel Balance with a 15-198 Balance Clip Attachment at the top. Although, since these will need to be a custom assembly, it would be helpful to see a photo of the existing hardware to ensure we are providing you with the correct replacements.

I'll also need to know the exact number of balances you intend to purchase; there is an order minimum of (2) for custom assemblies.

To remove the T-Lock Balance Shoe, you'll need to twist in the channel so that the "T" is turned to the side and then you should be able to remove it. Take a look at our video tutorial below, starting at the 3 minute and 14 second mark for a demonstration.
