Channel balances

Question

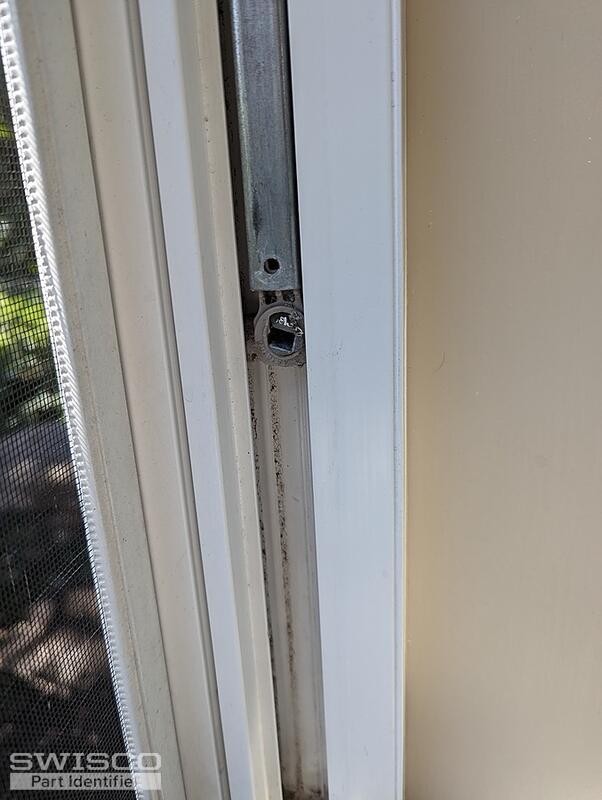

Hi there I'm looking to order 3 sets of channel balances for my 20 yr old Patriot windows. The balances have 36B stamped on them and they measure 9/16" wide and 36" length. Thank you for your time. Please let me know if you need more information. Thank you!

Jasmine · Accepted Answer

Thanks for reaching out! Your channel balances look a lot like our Series 795 balance which comes with a 15-195 1-1/4" Closed Cam, T-Lock pivot shoe. Specifically, you'll need the S795-36 with a 36B stamp. To confirm that the 15-195 is the shoe you need, carefully compare the design and dimensions below.

Dimensions for 15-195

Alternate view of 15-195

Your pivot bar looks like it could be the 26-021. However, to confirm that, you'll need to remove the pivot bar and carefully compare the dimensions below.

Alternate image for 26-021
