Channel window balance

Quick Learner
I need 2 channel balances.

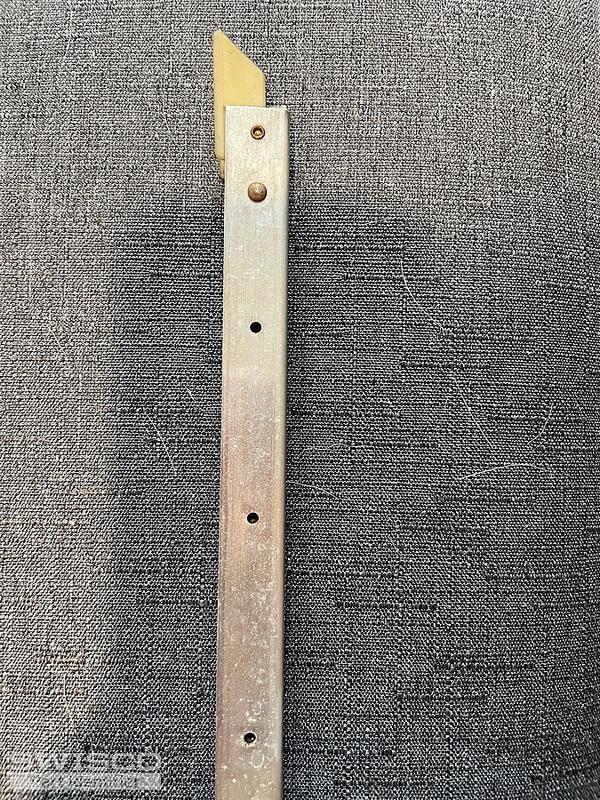

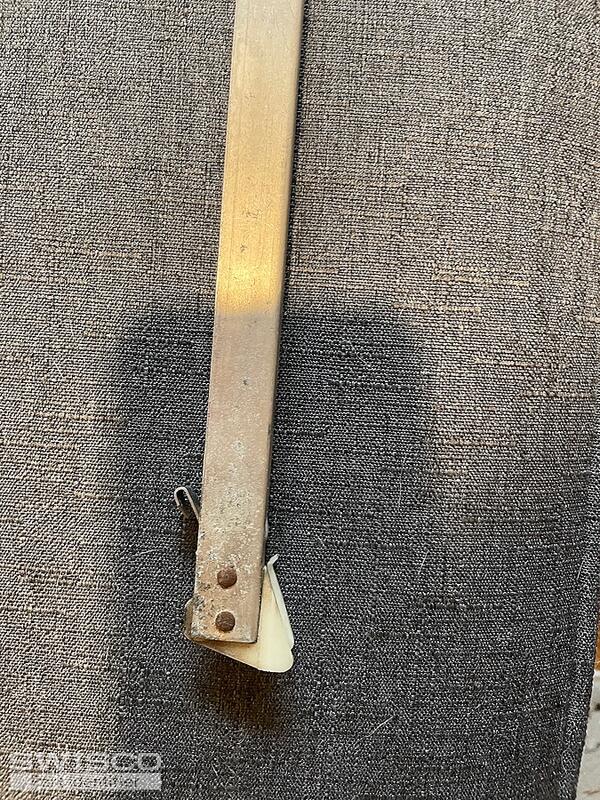

The part number listed on old one is 2230
However one measures 23 inches in length. The other is 20.5 inches long.
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out to us! Your channel balance appears to be the S351-23 with a 1" shoe or the S390-23 with a 1-1/8" shoe. To determine which of these is the correct replacement, you'll need to confirm the measurement for the depth of your bottom shoe.

You'll need to select the 2230 Stamp option.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Regarding the 20-1/2" long balance, I'll need a bit more information to confirm the correct replacement. This is an unusual length for the balance and we typically find that these are a custom assembly. May I please see a photo of this balance removed from the window? I'll also need to know the stamp from the metal channel.

Please feel free to reach out with any questions you might have.
