Channel and pivot bar replacement

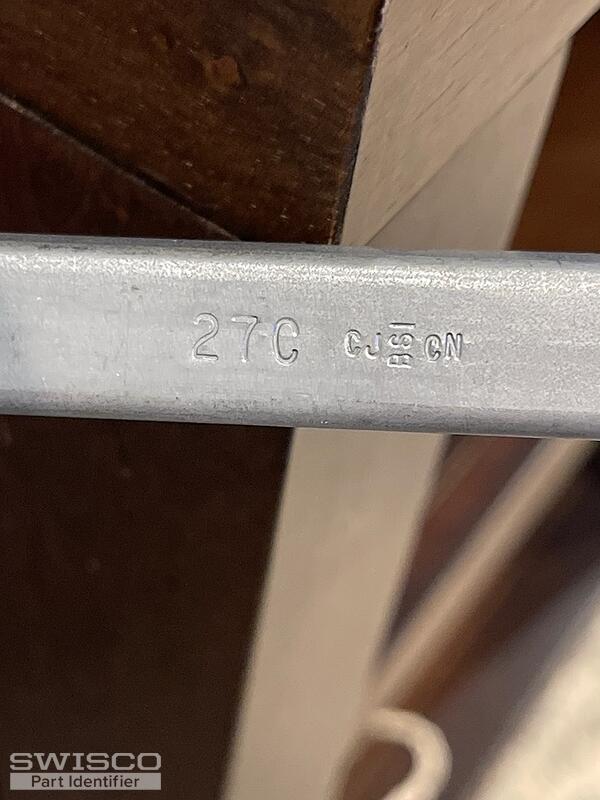

Thanks for writing in! The balance you have is the Series 795 Channel Balance assembled with a 15-195 T-Lock Shoe and a 15-198 Balance Clip Attachment. To determine the correct replacement, I'll need you to confirm the length of the metal channel and I'll need to know the stamp from the metal channel. It's a bit difficult to get an accurate length from the photo of the measuring tape.

If your windows have a square shaped hole that can accept the 26-200 Balance Screw Plug, you may not need the hook installed on the balance. This screw plug will allow the balance to screw into the top of the channel using the screw clip installed on our balances. Take a look at the tutorial below for an idea on how this part works.

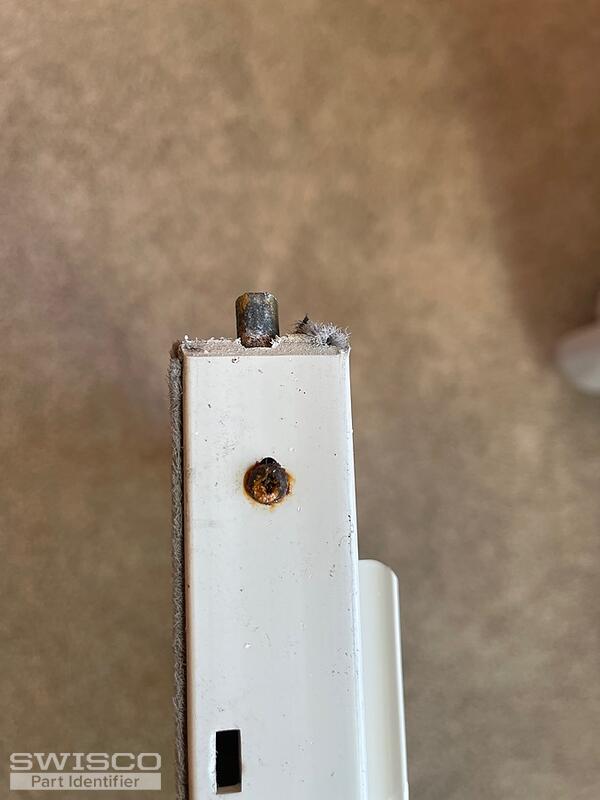

The pivot bar typically used with this balance assembly is the 26-021. Although, to confirm that this is the right replacement, you'll need to compare the dimensions to an existing pivot bar. I've included two other tutorials which can be found below this thread. They detail how to remove a rusted pivot bar and how to replace a damaged pivot bar.

If this pivot bar is not a match, I will need to see a photo of an existing pivot bar.

Alternate image for 26-021

The balance with the 15-198 Hook will need to be a custom assembly. I noticed that you went ahead and placed the order but I did want to let you know, that we do not advise attaching to the hook balance yourself. That said, if this is something your are comfortable doing, you may proceed with the order as is; if not, I would suggest reach out to our customer service team to have it cancelled.

I've forwarded a link with a quote for the (2) requested balances. You'll be able to use this link to review the quote and place the order from your online cart.

I also wanted to point out that the 26-021 Pivot Bar is not compatible with the T-Lock Balance Shoe.

Please feel free to reach out with any questions.

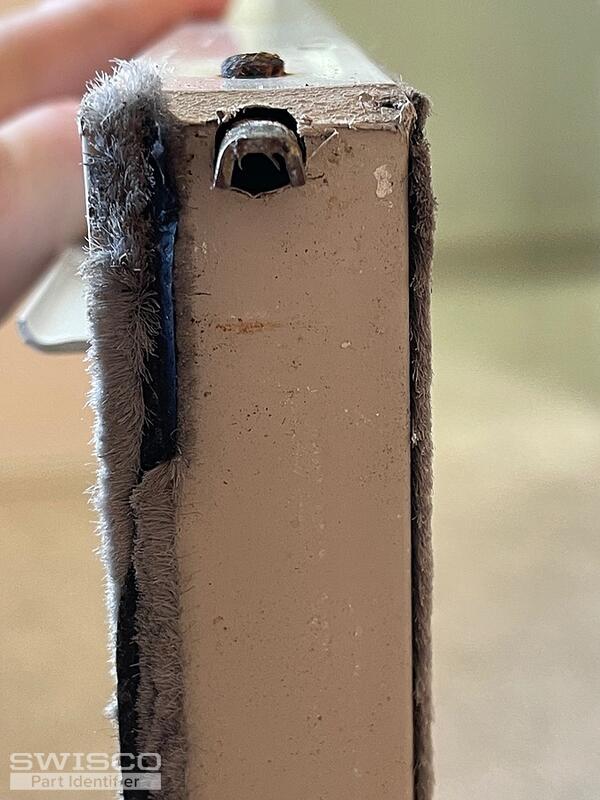

The U-shaped pivot bar you have is not one typically recommended for use with the 15-195 shoe on your balance. The 26-021 should work as a suitable replacement, you'll just need to be sure that the top installation hole has the same hole spacing.

If your measurement is not 1-3/8", I'll need to know your exact written measurement to match up the best possible replacement.

Hello,

We recommend using a #8 self tapping screw like the 33-055. You will need to choose the correct length for your sash to make sure it doesn't interfere with the glass. Let us know if you have any additional questions.
