Chrome casement handle cover

Quick Learner from Oregon

May 20, 2020 12:20 pm

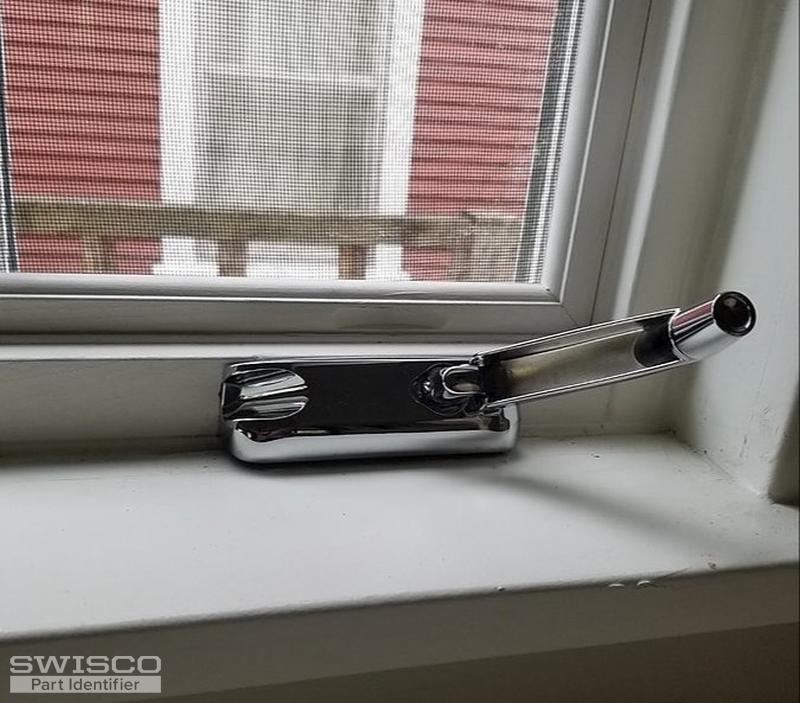

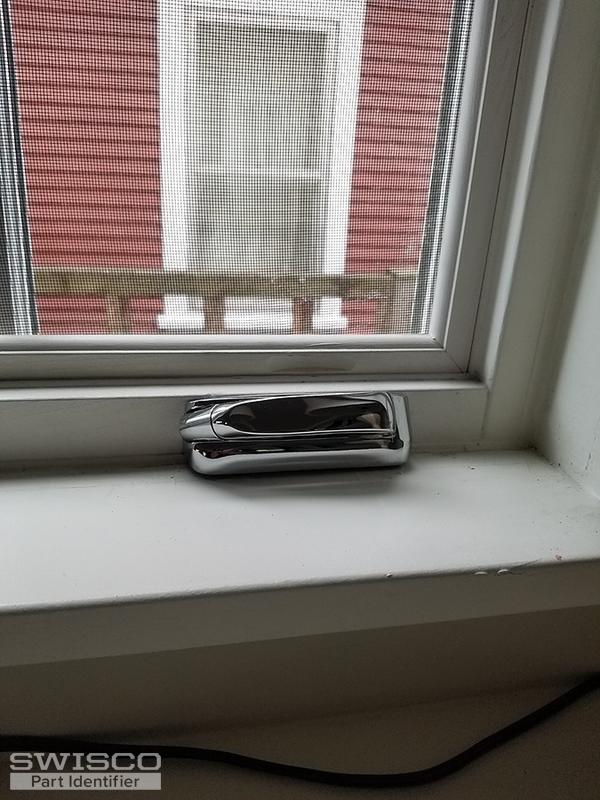

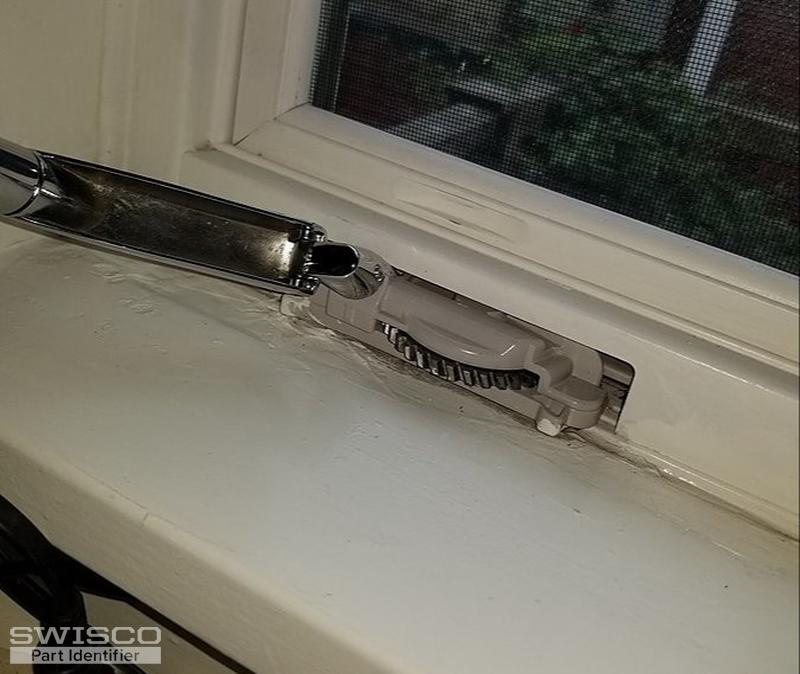

Hi I am missing the cover to this handle and believe its a wood window maybe Pella, Anderson or Marvin.Any help would be grateful

3 user uploaded images

4 Replies

Bob from SWISCO

May 22, 2020 2:26 pm

Can you give me a view that shows the entire window operator assembly, including the link arms? This can be done with the window open; I just want to properly identify what kind of operator this is, because that will determine what handle and cover you could use. Many thanks.

Quick Learner from Oregon

May 22, 2020 3:38 pm

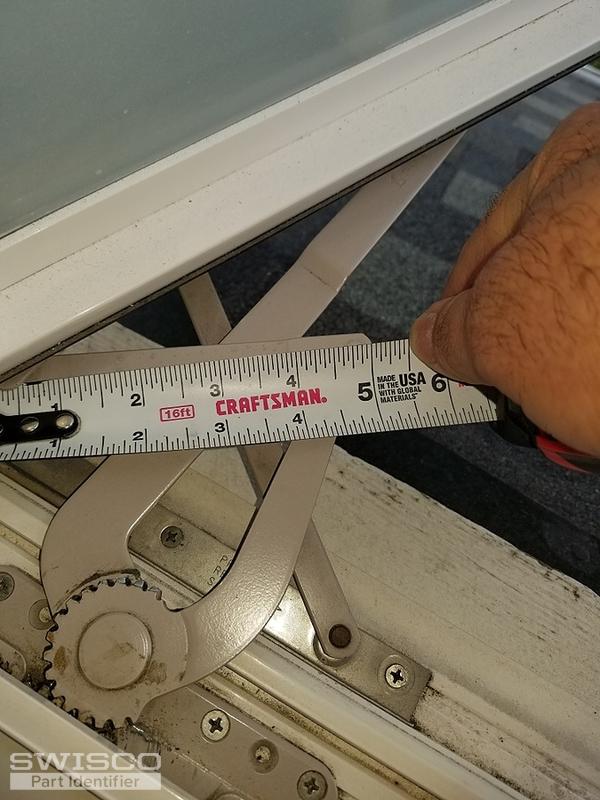

This is the best I have

1 user uploaded image

Bob from SWISCO

May 25, 2020 8:55 am

It looks like you have either the 39-253LB & 39-253RB, or the 39-438B & 39-439B, depending on what appendages these operators have at the end of the link arms. That's not visible in your photos.

In either case though, you could use the same cover & handle sets: see our 39-375 and 39-376, or our 39-451 and 39-452, depending on whichever style you prefer.
