Coil Balance Housing Replacement

Question

The pivot bar measures 2 7/8 inches overall length 5/16 of an inch wide inch and 7/16 to the first hole and 2 3/16 to the second hole.
The windows are 36 inches wide by 36 inches tall and manufactured by soft lite window company.

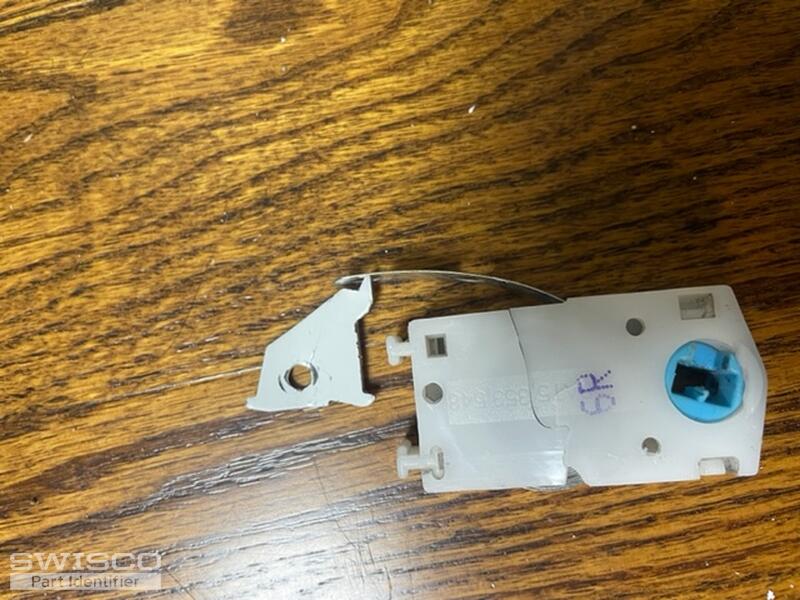

The coil housing has a number on it that says 6R. It also has a patent number that is PAT5, 353, 548. The metal coil itself has letters 6GE. It measures 2 7/16 inches tall half inch wide and inch and a quarter wide. The coil is fastened to the inside window track with a triangular metal piece that measures roughly 1 inch triangularly.

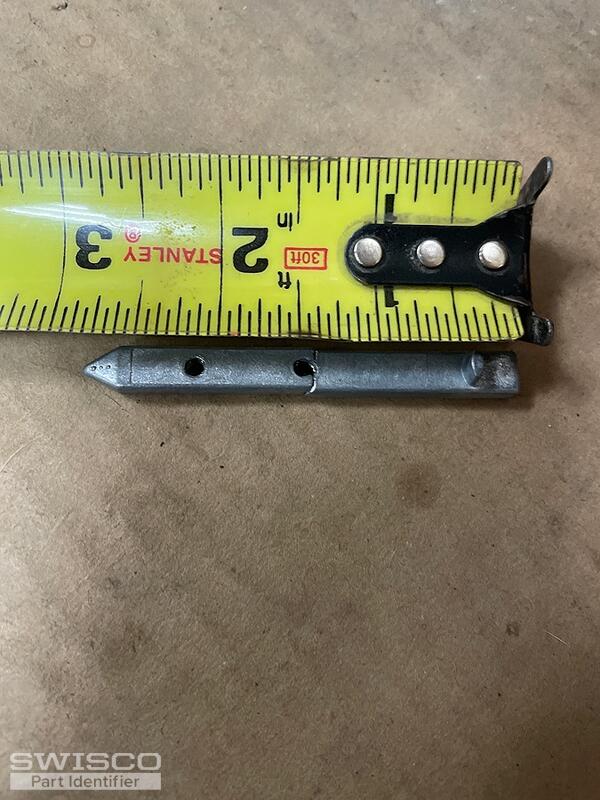

I sent a picture of my pivot bar with a tape measure next to it in the previous pictures but the overall length of it is 2 7/8 inches long from the end to the first hole is one and 7/16 inches and from the end to the second hole is 2 3/16 inches. It is 1/4 inch wide. The pivot bar you have shown will not work because the holes are not the same. Do you have any others?

Jasmine · Accepted Answer

Thanks for reaching out! Your coil balance housing looks similar to our 15-087 coil housing pivot. Carefully review and compare the dimensions to those shown below to determine if this is the correct replacement. I am confident these are the replacement you'll need.

Detail of 15-087

The coil housing pivot is compatible with the Series 180 coil balance spring. Specifically, you'll need the S180-6 Coil Balance Spring. The metal mounting bracket that secures the coil in the window channel is part 16-024.

Your pivot bar appears to be our 26-422. Again, take a look over the dimensions to confirm that this is the right replacement.

Alternate image for 26-422

Alternate image of 26-422
