Coil Balance Pivot Shoes

Question

What replacement Pivot Shoe Part Number do we require?
Aluminum portion of Pivot Shoe is cracking/breaking preventing the Pivot Shoe from travelling up & down. Each window pane is 22lbs and 29 inches wide by 35 inches tall. Dual Coil springs mostly look OK, they are 1/2" wide and the two coils attach to the Pivot Shoe with a screw (screw thru a hole in the coil ends and secured into the Pivot. The Pivot Shoe is 1-1/4" wide and 5/8" deep.
No Part Number or markings on the Vinyl Windows or the balance Coils.

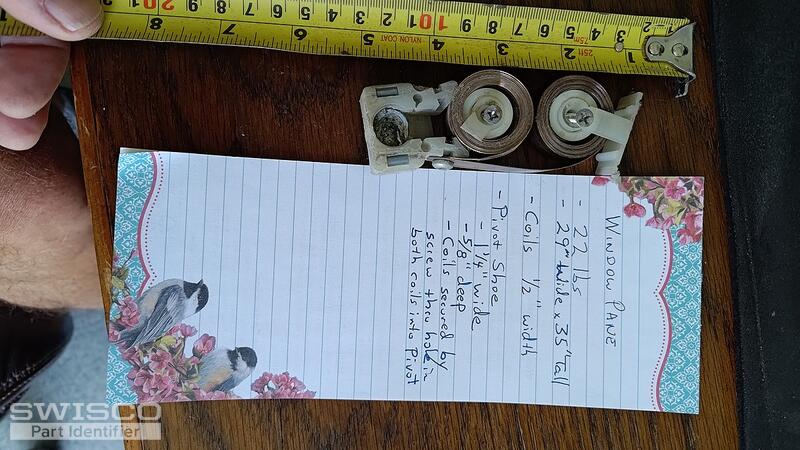

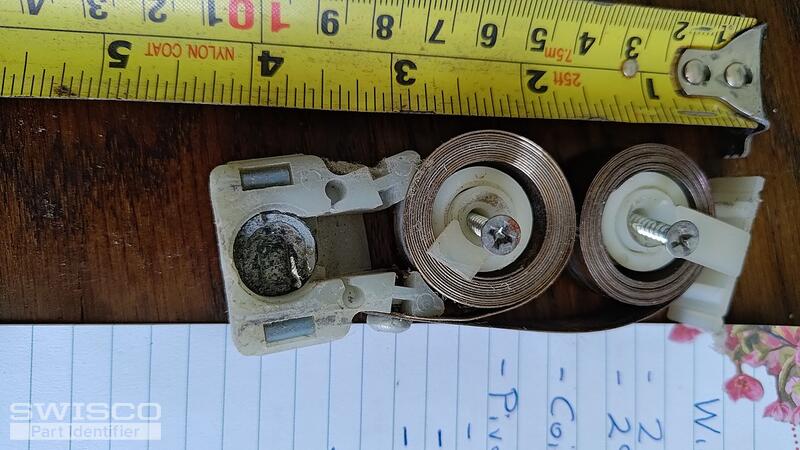

Pictures attached.

Bob · Accepted Answer

Hello there. This exact pivot shoe was recently discontinued and is no longer available, however we believe our 15-177 may work as a substitute. This shoe has similar dimensions to your old one, and is compatible with the same type of coil springs: our Series 152. If the sash weighs exactly 22 pounds, you'll want an S152-6 6 pound coil and S152-5 5 pound coil on each side of the sash. This will equal 11 pounds of support on either side of the window, for a total of 22 pounds of support overall. If you need new housing for these coil springs, see our 15-143, 15-144, and 15-145. These sandwich around each individual coil spring to form a housing assembly. Let me know if you have further questions, and if you give this a shot, let me know how you make out.
