Coil Balance Shoe for Tilt

Home Owner

Jun 23, 2025 1:07 pm

Hello Swisco

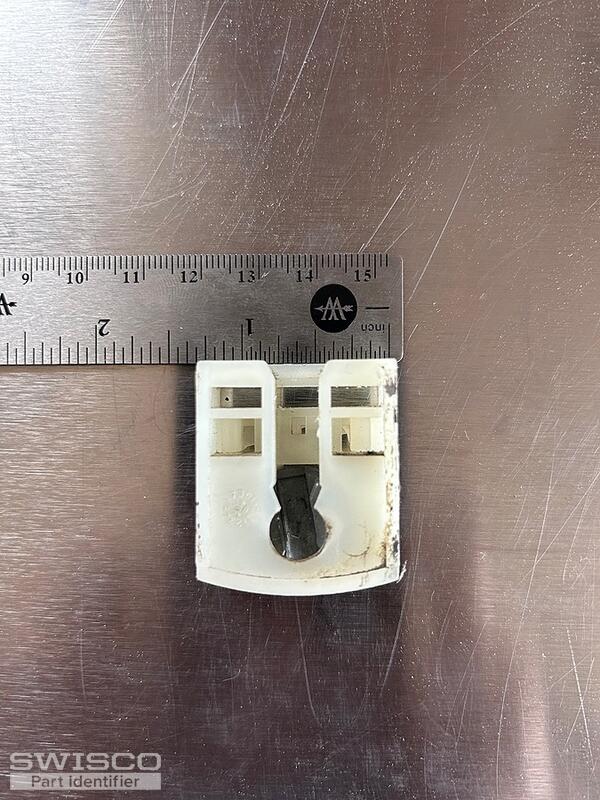

Here is the part I need please. If I measured correctly, here is what I got.
1 1/4 wide x 17/32 or 9/16 deep x just under 1 1/2 long from the arch at the top.
Looks like it matches Product Code: 15-177
Please let me know to place the order.
Thank you.
JPG

4 user uploaded images

6 Replies

Jasmine from SWISCO

Jun 24, 2025 4:08 pm

Hello,

Thanks for reaching out to us! The balance shoe you have here does not quite look like the series 15-177 Coil Balance Shoe but its difficult to make out exact what you have because the measuring tape obstructs the view.

May I see a photo of the shoe without the measuring tape?

Please feel free to reach out with any other questions you might have.

Home Owner

Jun 24, 2025 4:36 pm

Hello Jasmine

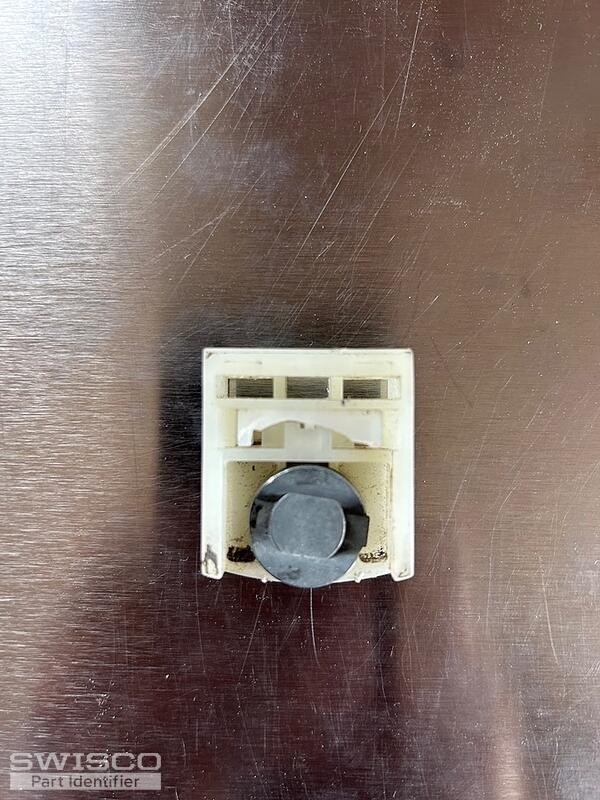

Thank you for getting back to me. Here goes the picture.

3 user uploaded images

Jasmine from SWISCO

Jun 25, 2025 8:30 am

My pleasure to assist! The shoe you have is the 17/32" thick 15-199 Pivot Shoe. It is compatible with either the 1/2" wide Series 160 or the 3/8" wide Series 165 Coil Balance. To confirm the correct series, you'll need to measure the width of your coil springs.

The stamp on the coil should tell you the spring strength you need. There is a video tutorial tagged below with instructions on selecting the correct coil springs, to use for reference.

Alternate view of 15-199

Home Owner

Jun 26, 2025 4:54 pm

This is the correct one (15-199). I will place an order.
Thank you too much, Jasmine!

Jasmine from SWISCO

Jun 27, 2025 8:46 am

Oh, good! It was my pleasure to assist! Please be sure to look at the video tutorials tagged below if you get stuck in the installation process. We're happy to answer any questions the videos may not address.

Best of luck with your repairs!
