Coil Balance Simonton

Question

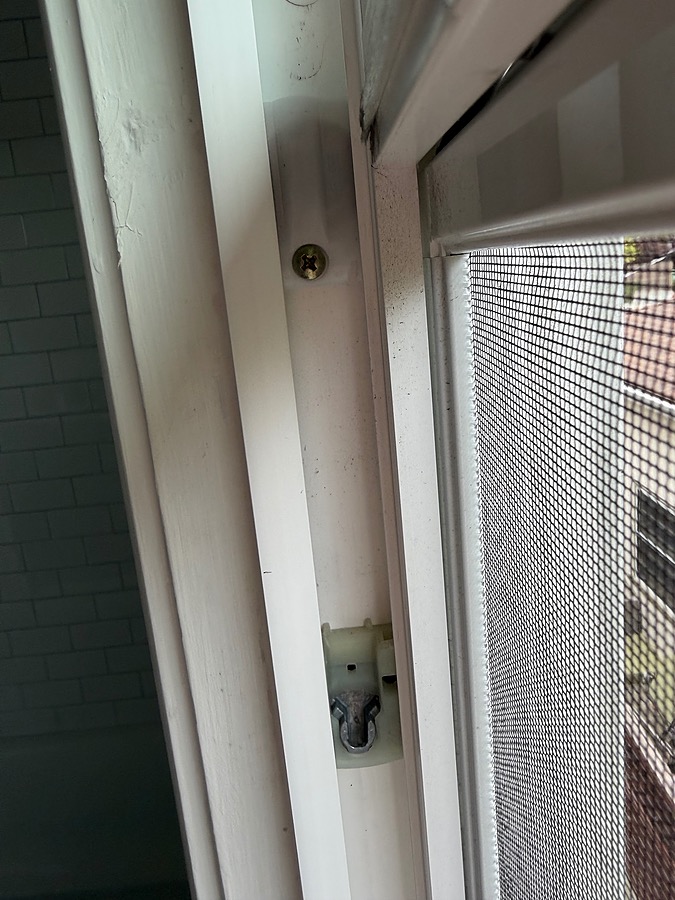

Hello I am trying to replace a coil balance for a small simonton bathroom window. I've attached photos of the parts I removed from the window and the installed part on the window itself. Can you help me find the replacement pieces in need to replace it? Thank you.

Jasmine · Accepted Answer

Thanks for posting! The 17/32" thick 15-199 Pivot Shoe should work to replace your Simonton balances. Carefully compare the specifications to confirm that this will be a fit.

Take a look at the 26-378 to replace the pivot bar at the bottom of the sash.

The coil support appears to be a match for the 15-150S Coil Single Support. These are compatible with the 1/2" wide Series 160 Coil Balance. Since yours appears to be marked with a 9, you'll need the S160-09.

Alternate view of 15-199
