Coil Balance for Simonton Window

Question

Hello

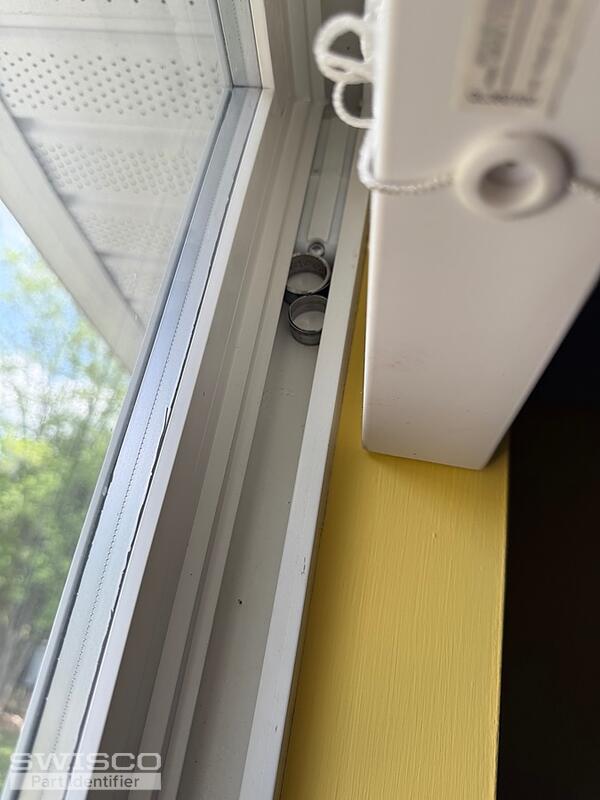

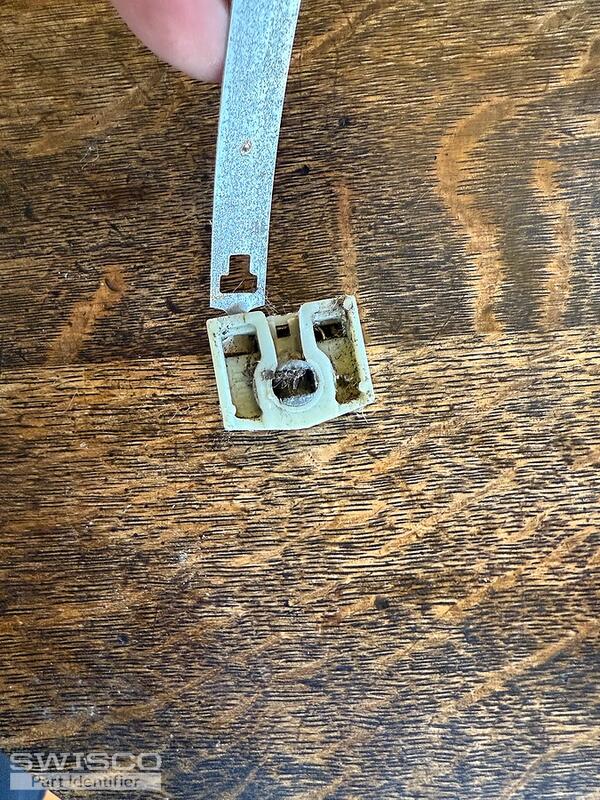

I have a few simonton windows with failed coil balance springs. I was hoping you could help me identify the part that I would need to replace. I have two windows that are exactly the same that have both sides completely broken. I've attached photos.

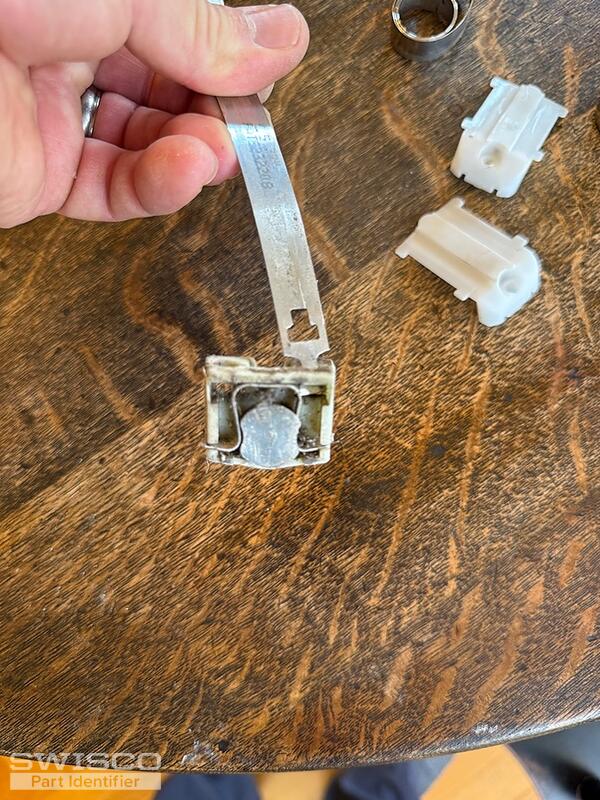

Also, one one of the windows the spring retaining clips have failed, (UV damage has made the plastic brittle and it cracked). I am not sure if this can be replaced, if so, only one window has this problem. I've included one picture of the part I'm discussing.
Thanks
Scott

Casey · Accepted Answer

Hello,

For the tilt latch shown in your first photo, you can start by comparing the specifications of the 26-243 and 26-244 tilt latches to yours.

Alternate view of 26-243

Profile view of 26-243

As for the coil balances, it's tough to be sure without seeing the front of the pivot shoe but the 15-111 comes to mind. Take a look and confirm if the style and dimensions below match yours. If so, see if your cils springs match the 1/2" wide S160 coils springs used with this assembly. Thanks for posting and let us know if you need anything else.

Alternate image for 15-111
