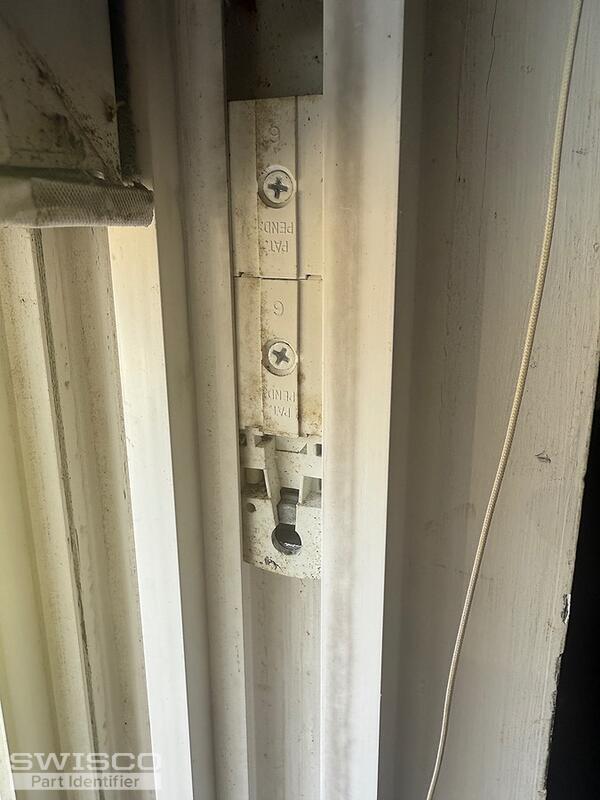

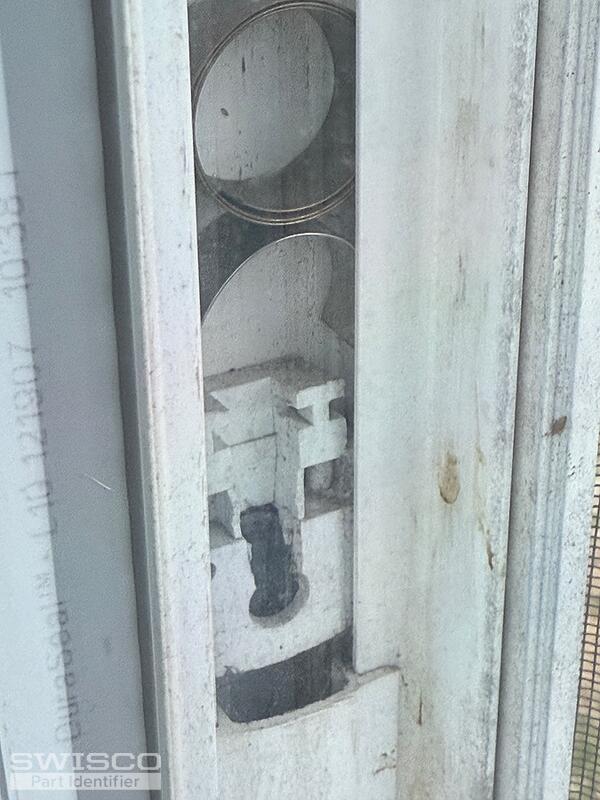

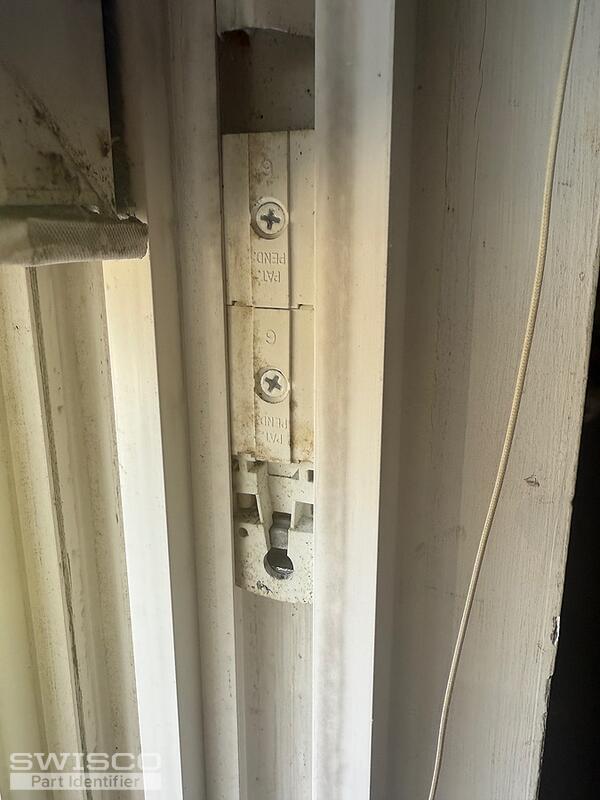

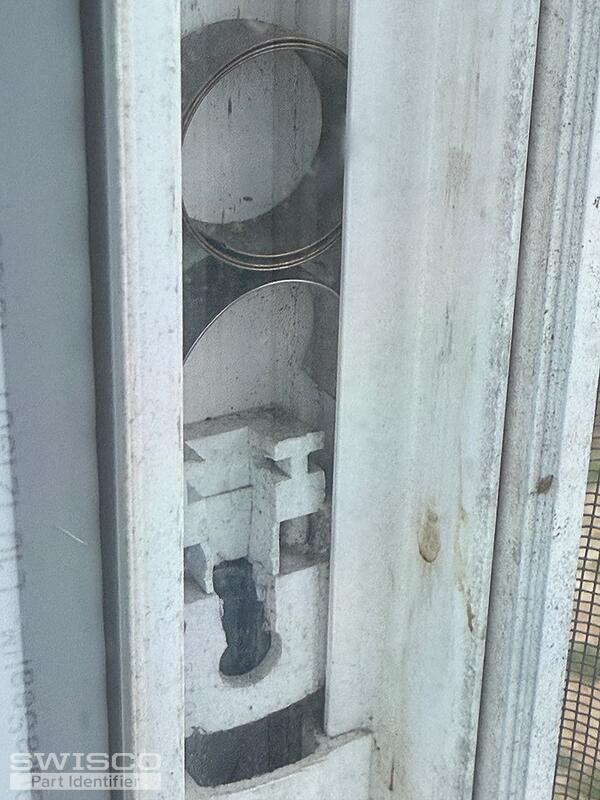

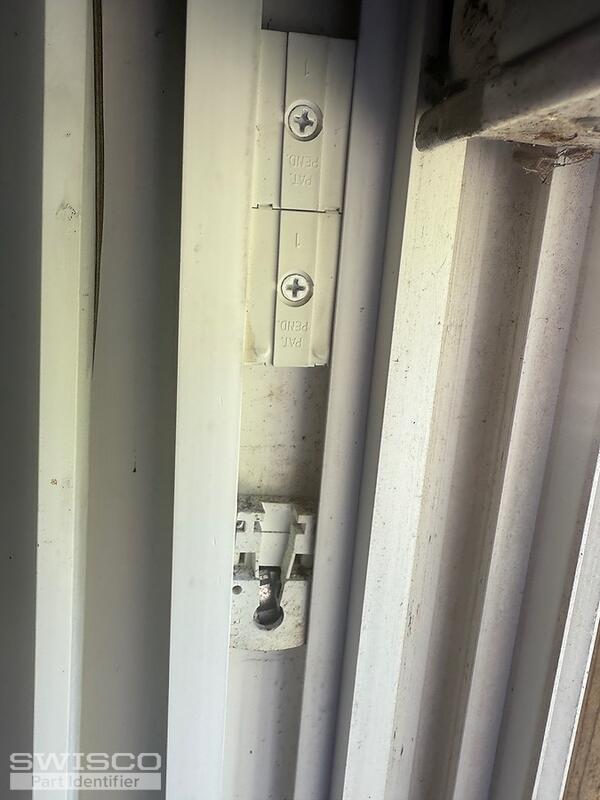

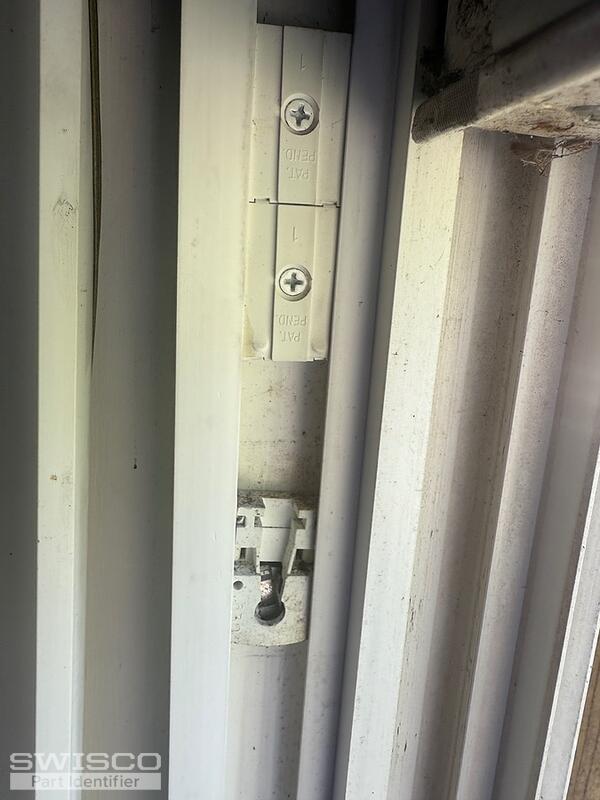

Coil Balances and pivot lock shoes

Hello,

Unforutnately, we do not carry an exact replacement for your coil balance pivot shoe but our 15-199 Pivot Shoe should work well as a replacement. You'll need to compare the dimensions below to yours to confirm that this would be a good fit for your window. Note that our shoe measures 17/32" thick.

Alternate view of 15-199

This pivot shoe is compatible with either the (1/2") Series 160 or the (3/8") Series 165 coil balance springs. To determine which series you have, you'll need to confirm the width of your coils. Then you'll choose the strength options that correspond with your original coils stamps.

If you need new pivot bars as well, see the 26-378 below. Thank you!

Alternate image for 26-378
