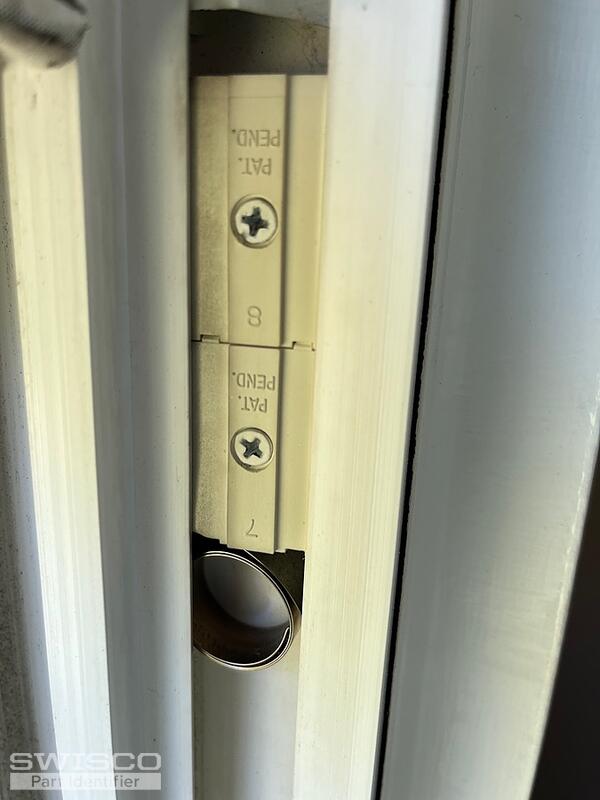

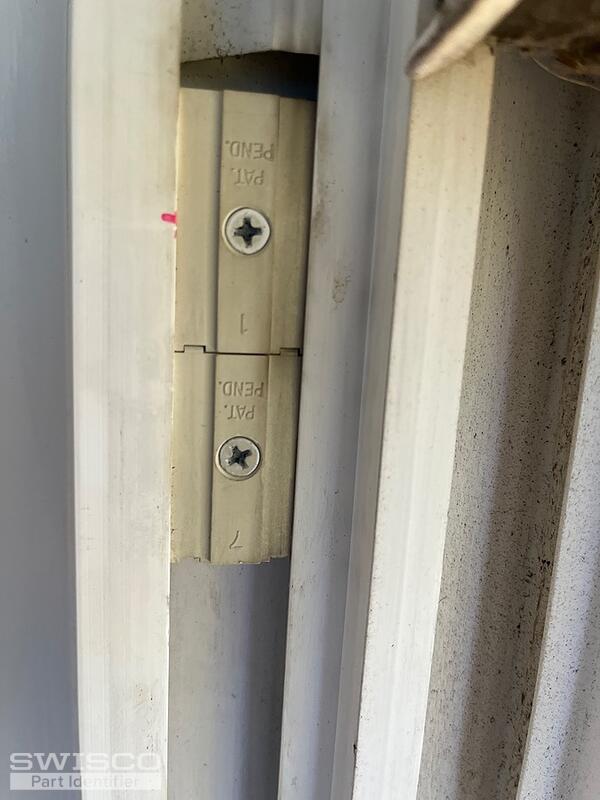

Coil balances broken. On the cover plate for the most part is showing numbers 1 and 7. Another one 7 and 8. Same size windows. The sash weighs 21,8 lbs. it will be for four windows total replacement of coil balancers. My name is Ray. Thanks.
Coil balance
Quick Learner from Lebanon NJ
Sep 14, 2023 12:32 pm
5 user uploaded images
4 Replies
Casey from SWISCO
Sep 14, 2023 2:30 pm
Hello,
Our records indicate that the company that made your pivot shoe is no longer in business. I believe our 15-177 could still work as a replacement, which uses the S152 coil springs. Just make sure that the dimensions below match up to yours.
Alternate image for 15-177
We would also need to see your pivot bar uninstalled to confirm if it would be compatible with the new pivot shoe. If it has two prongs sticking out, you will need to file them off to fit the new shoe. Take a look and see what you think.
Quick Learner from Lebanon NJ
Sep 15, 2023 2:32 pm
I checked my pivot shoes and spring covers and bushings they are all good. Can I change just the springs? If so what number springs to order and costs. It will be for 4 windows bottom sages only. They weighed 21.8 lbs. the pivot arms did have the lobes on the ends. I attached the pictures of them. Thanks Ray.
