Coil balance assembly ii only pring I only need the bottom part if possible I need for both sides bottom window

Home Owner from Brighton, illinois

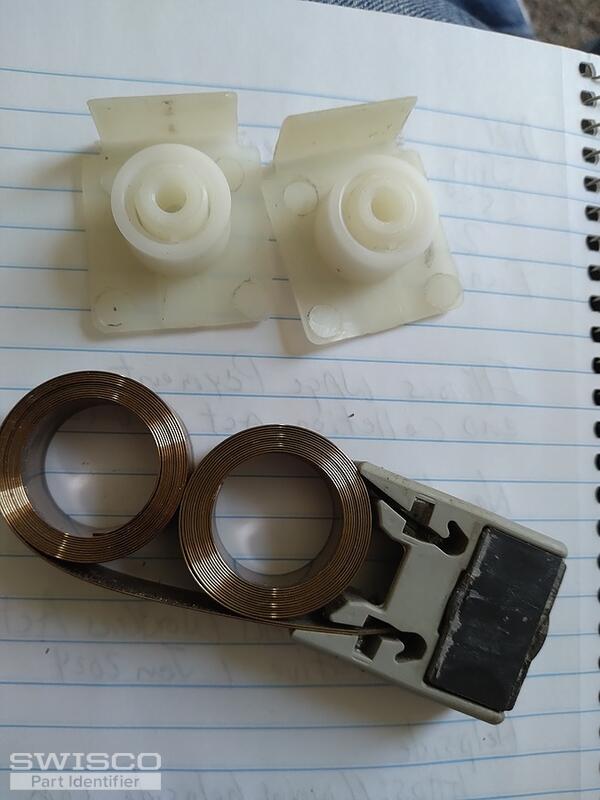

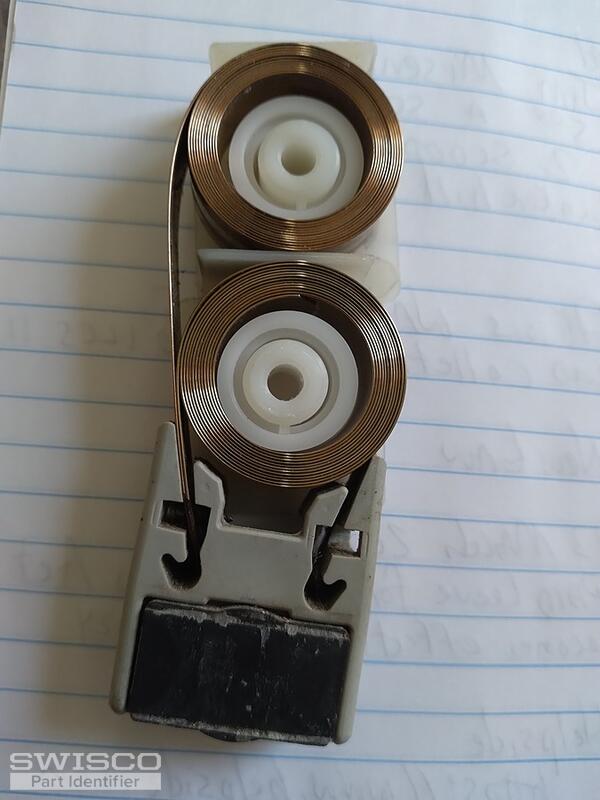

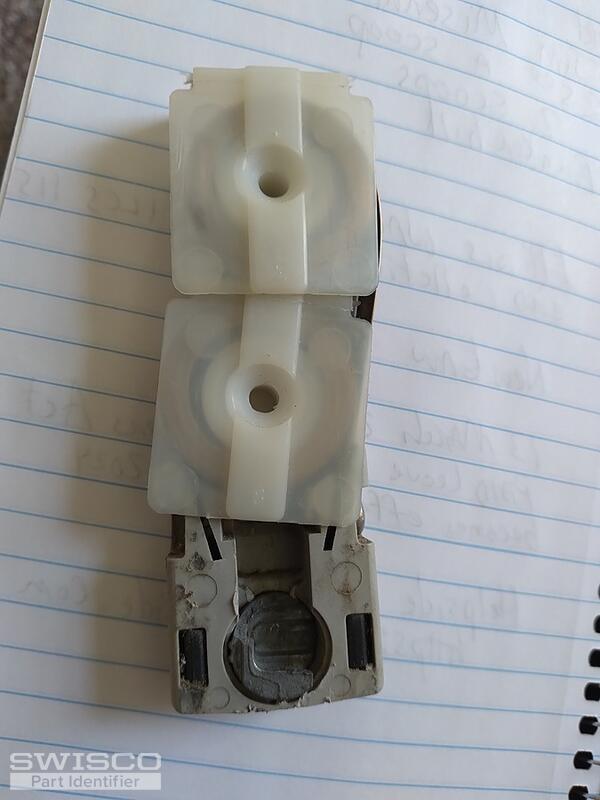

Coil balance assembly 6K stamped on the spring I only need the bottom part this is the bottom window both sides Can you help me in purchasing these parts please and thank you
3 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out! The part you are searching for is what we refer to as the pivot shoe. Take a look at part 15-177, compare the dimensions to your existing shoe to confirm that this is the right fit.

Alternate image for 15-177
Alternate image for 15-177

The compatible coil spring is the Series 152 Coil Balance. Since your is stamped with a 6K, you'll need part S152-6. Be sure to double check that both coil springs are stamped with a 6.

I've attached a few other compatible pieces of hardware in case you need to replace them as well.
