Coil balance replacement - CertainTeed Tilt and slide window

A quick learner from Maui says:
numbers/letters
on coil LA406
on plastic AI86160

need the hardware for the window (as shown in photo) also
Thumbnail of the uploaded file named IMG_9134.jpg
Thumbnail of the uploaded file named IMG_9135.jpg
Thumbnail of the uploaded file named IMG_9136.jpg
Thumbnail of the uploaded file named IMG_9137.jpg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for writing in. See our 15-192 Pivot Shoe. This shoe is compatible with our Series 170 and Series 171 Coil Springs. The Series 171 is used for the second spring on either side of the sash, since it has a longer "tongue" to reach around the Series 170 coil spring and attach to the pivot shoe. If one of your coils is stamped 406, then you need either the S170-406 or S171-406, depending on which coil has the stamp. Let me know if you have any other questions.

A quick learner from Maui says:

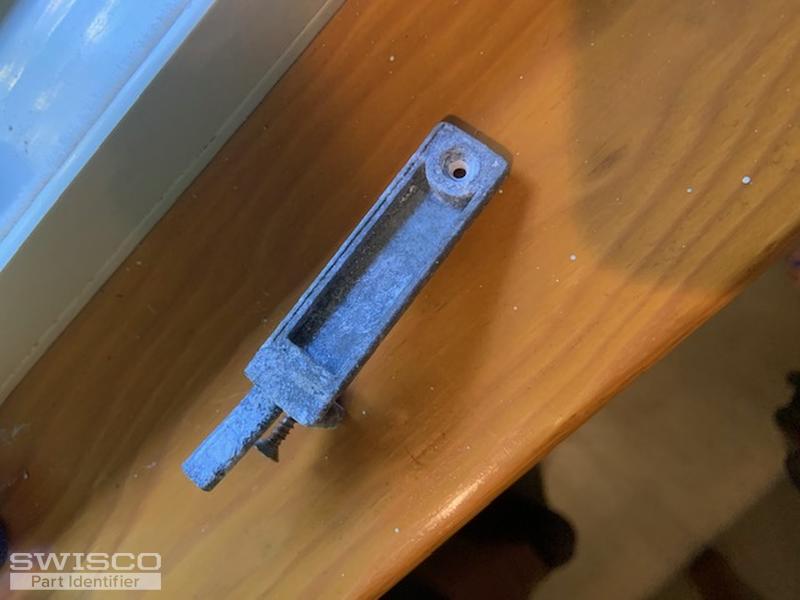

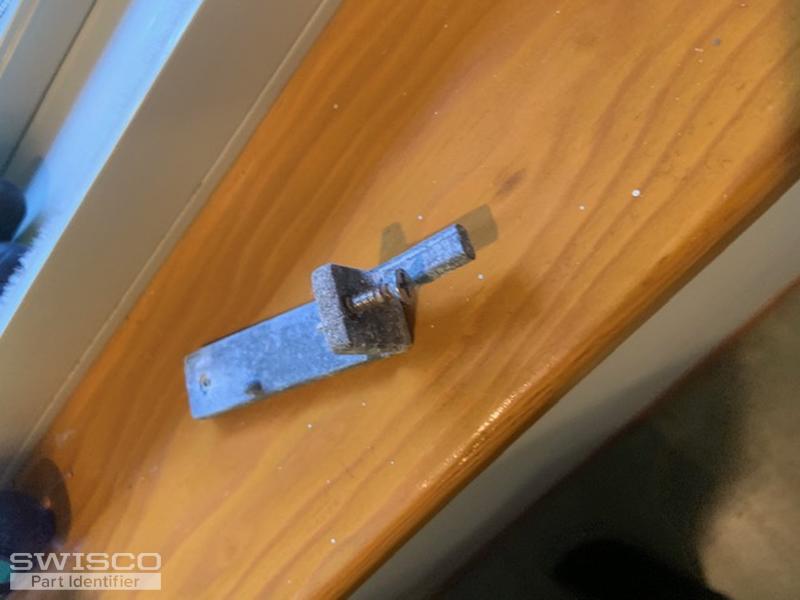

Thanks for all this. Got most of the parts to work although some were not the same and we managed to work with the old and get it back together mostly. Now I realize I am missing the pivot bars and need these as well (photos attached). Please advise for this!

Thanks and Aloha
Thumbnail of the uploaded file named IMG_9176.jpg
Thumbnail of the uploaded file named IMG_9177.jpg
Thumbnail of the uploaded file named IMG_9178.jpg
Profile picture of Bob
Bob from SWISCO responded:

Sure, we can help you with your pivot bar. Take a look at our 26-175. This look s like a good match.
