Product Code: S171-406

406 Series 171 Coiled Balance Spring, Long

Name: 406 Series 171 Coiled Balance Spring, Long
SKU: S171-406
Price: 6.55 USD
Availability: InStock

$6.55

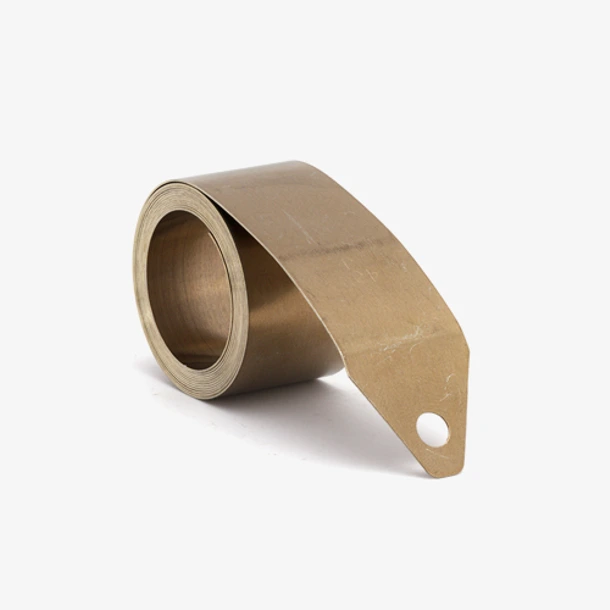

406 Series 171 Coiled Balance Spring, Long Image

Quantity	Price
1-4	$6.55/ea
5-9	$5.93/ea
10-24	$4.89/ea
25-49	$3.99/ea
50-99	$3.25/ea
100-199	$2.79/ea
200+	$2.52/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

This is a Series 171 spring for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window sash to stay open when raised and remain shut when closed.

Individually, this coil balance can hold 6 pounds. This is added together with the other coils to support the whole weight of the sash.
This coil is stamped with number 406.

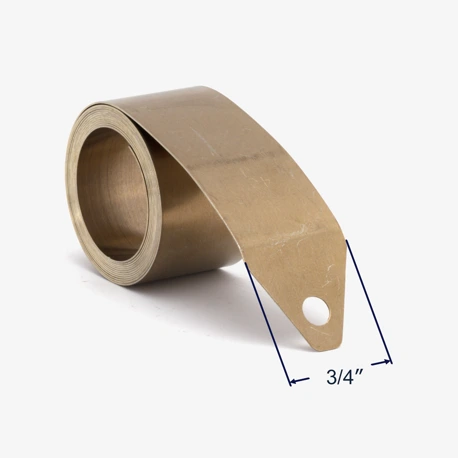

Measures 3/4" thick.
Designed to work with the 15-192 pivot shoe (sold separately).
This coil balance spring is sold individually, not in sets.
Can work for either the left or right side of the window interchangeably.
Coil balances are also known as constant force window balances.
Has a long tongue, meant to install on the top of a pair of coil balances. (If you have only one spring, see our Series 170 instead)
This constant force balance is used in CertainTeed double hung windows.

Good Idea!

For best results, replace window balances in pairs (though sold individually). An old balance will overwork a new one, causing faster wear and uneven operation. Paired replacement ensures optimal, lasting performance.

CertainTeed Replacement Parts

Hello, I'm trying to find out exactly what parts to order to replace the complete assembly on both sides of the window. I've attached pictures of the pivot shoe, the coil housings (M8637MXX), and the coils. One coil has "SA 406 500" imprinted on it and the other has "LA 406 500". ... (cont.)

series 170 409

the 409 is for a weight of 9lbs. we need this reference 170 409 to 9lbs, but we also need to 12lbs and 14lbs. It is possible?

upper window sash for double hung window

need this part for upper window of double hung window size of windos are 28 high x 44 wide frame wise.....the part has a retracable metal ribbon with a plastic holder with round metal disc in the center...pls advise ty

Need replacement for 2 #406 coils for left side window

How can I order replacement parts described and photographed above?

Certainteed coil balance assembly replacement

I need assistance in finding the right part for the coil balance assembly to a Certainteed window. The sash no longer stays up when the window is open lifting the sash. The each coil has a number 6 written on it and it is and half inch wide and the sash weight about 20.2 lbs. I am not sure which pa ... (cont.)
