Coil balance spring

Handy Person from Iowa

Aug 27, 2026 3:25 pm

Hi, I have a window where both of the coil springs snapped/broke. The rest of the assembly appears to be in fine working order. The bronze coil is exactly 1/2" in width and stamped with a "6" on it. I was thinking the S190 or S175 bronze is the right pick, but wasn't sure between short/medium/long. I'm hoping you can help guide me, thanks!

2 user uploaded images

6 Replies

Emily from SWISCO

Sep 2, 2026 10:13 am

Hello! I am very sorry for the long wait; we appreciate your patience during an incredibly busy season.

We're happy to look into this, but we'd like to see a photo of the pivot shoe first. If we can ID that, we can determine the compatible coil balances.

Handy Person from Iowa

Sep 2, 2026 11:33 am

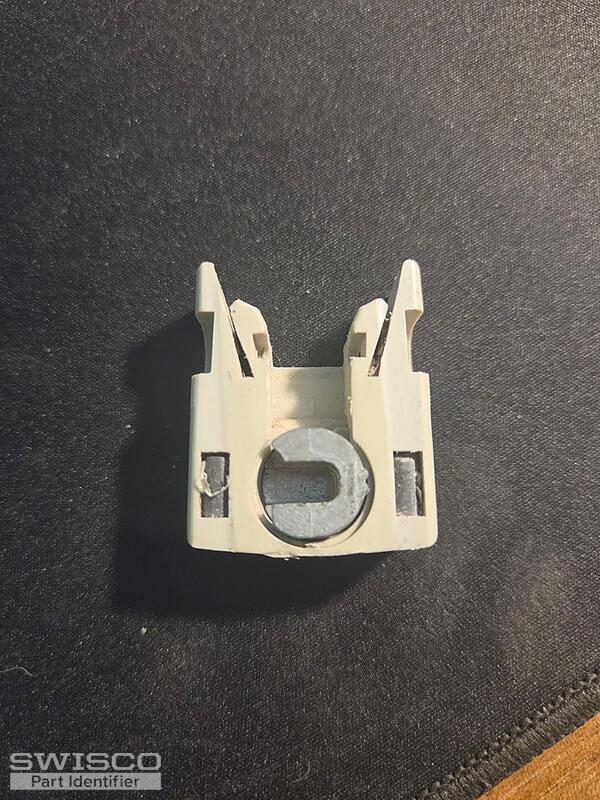

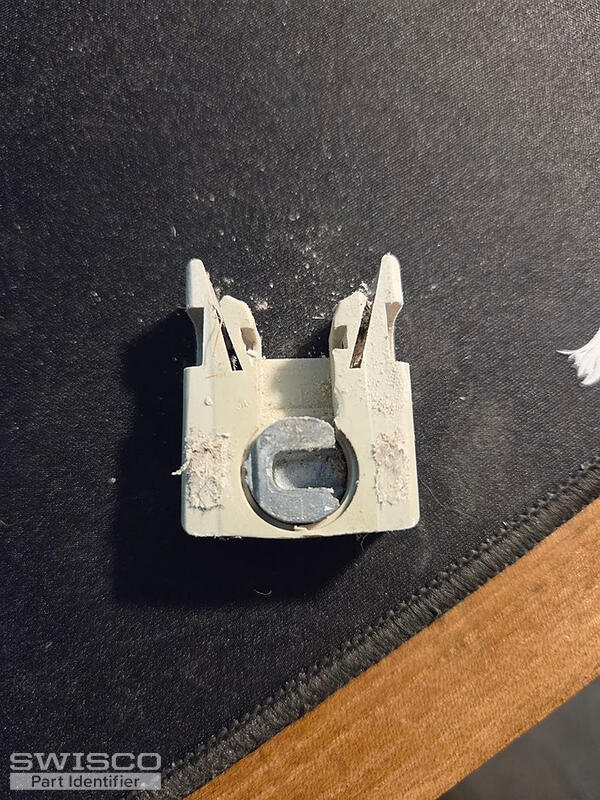

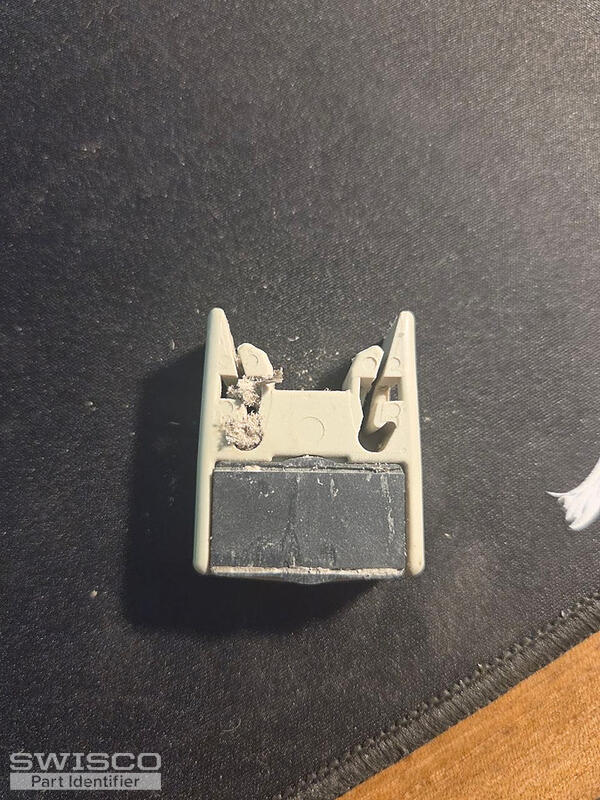

Hi Emily, thanks for the response! Here are some images. Please let me know if this shows what you need.

4 user uploaded images

Emily from SWISCO

Sep 3, 2026 8:32 am

Thank you kindly!

Your shoe is a match for the 15-177, which is designed for use with the S152 springs (sold separately). Since your spring is stamped with 6, see the S152-6 6-pound spring. Note that the spring is meant to screw to the side of the shoe. If you need a new screw, see the 33-072 (sold separately).

Please let me know if you have any questions.

Handy Person from Iowa

Sep 3, 2026 9:51 am

Thank you so much, Emily! Just placed my order.

Emily from SWISCO

Sep 3, 2026 2:00 pm

No problem! Thank you for your order; we really appreciate it. Good luck with the repair, and please don't hesitate to reach out if you need anything else!
