Coil balances

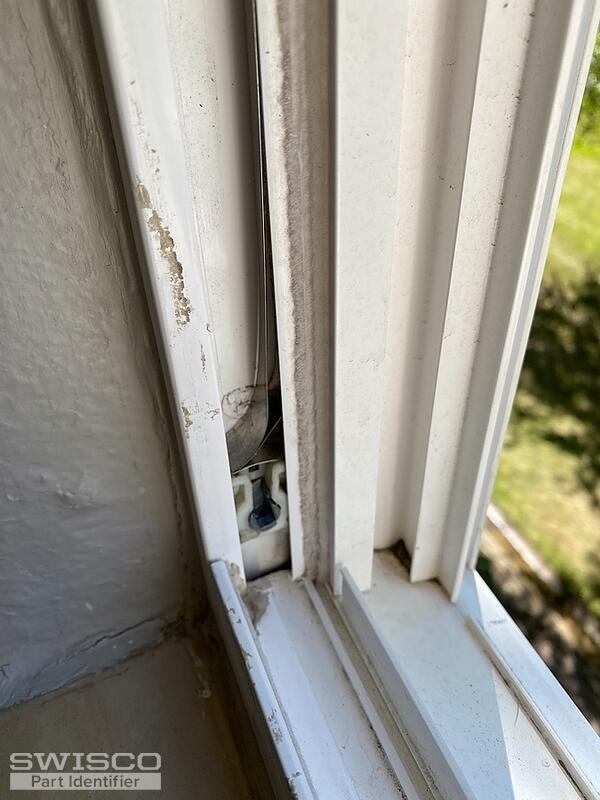

Thanks for your post! Your balance shoe can be replaced with the 15-111 Pivot Shoe. I'm confident this is the what you need but carefully review and compare the dimensions to confirm.

The compatible pivot bar is the 26-241.

Alternate image for 15-111

For the coil balance spring, you'll need the 1/2" wide Series 160 Coil Balances and 15-150D Coil Double Support. If yours are marked with a 3.5, you'll need the S160-03. Be sure to check the stamps from all of the springs to determine that they all have the same stamp.

If you aren't sure that is the correct weight option, my next best suggestion is to confirm the exact sash weight.

Hello,

I will need to know the weight of the sash, in pounds and ounces. The coils are what support the sash weight, so we'll need to know that to determine the correct replacement coils.

Thanks for confirming. You'll need the S160-04 to replace your coils; two for each assembly.

Please let me know if you have any additional questions!
