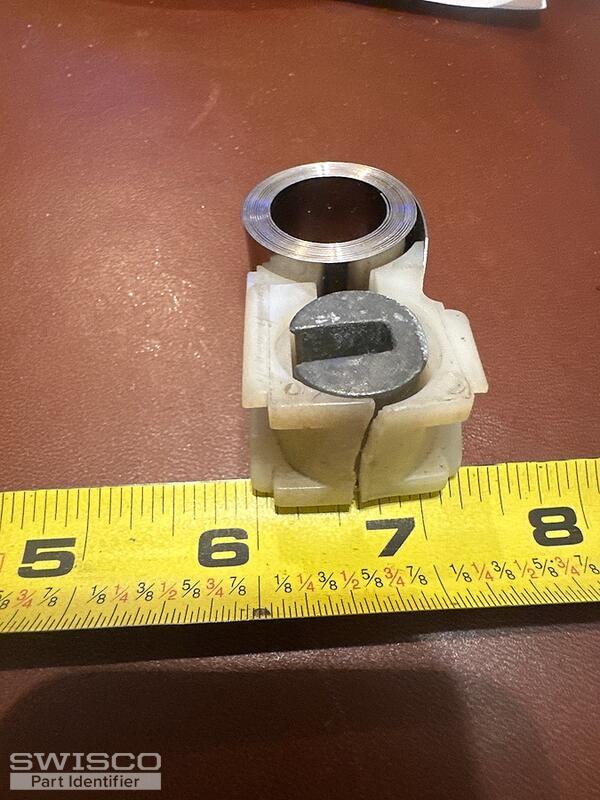

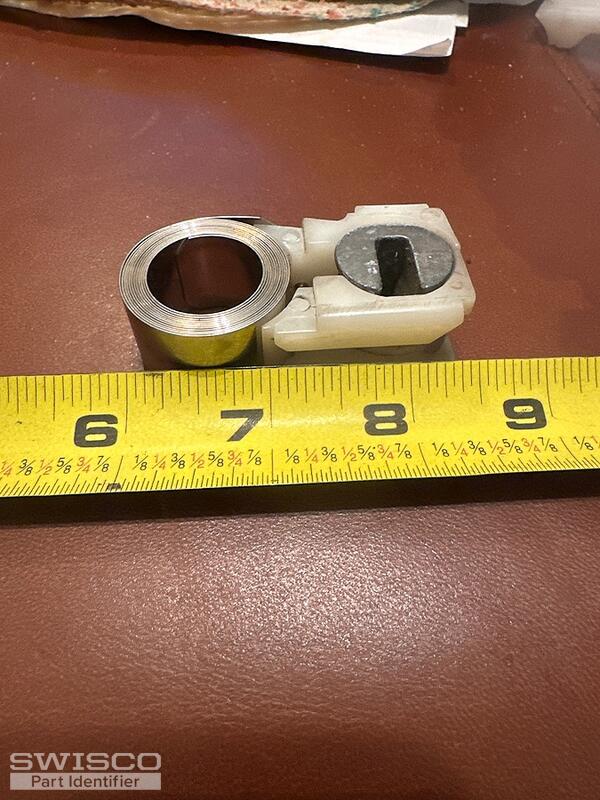

I need these type of coil balances. It seems to be (7/8") thick, 1 1/4" wide and 2 1/2" tall. I would need 7 sets (14 units). I would also like to get pins about 2 5/8" long and I would need 14 units. Please let me know if you can help me. My name is Helmer.
Coil balances
Quick Learner from Ashburn, VA
May 5, 2026 9:58 pm
5 user uploaded images
4 Replies
Jasmine from SWISCO
May 6, 2026 11:38 am
Hi Helmer,
Thanks for your post! I believe the 15-259 Coil Balance Pivot Shoe, Series 159 Coil Balance, and 15-255 Coil Single Support should work to replace your balance assemblies. The pivot bar will not be compatible with this shoe so you'll also need the 26-083 Pivot Bar.
You'll need to look for a stamp/marking on the coil to determine the correct coil spring. If there are none, please see the tutorial (tagged below this thread) for instructions on selecting the correct coil weight option. We show a different assembly in the video but the process is the same.
Quick Learner from Ashburn, VA
May 6, 2026 10:22 pm
Thank you for the quick response. I found a number 11 on the single coil support. It seems like everything you listed above is what I need. Please let me know what is the next step to place an order on the items listed. Thank you
Jasmine from SWISCO
May 7, 2026 9:47 am
My pleasure to assist. You'll need the S159-11 to replace your coil springs.
The order can be placed on the website when you are ready. If you need assistance placing the order, please call (888) 991-1929 to speak with a member of our customer service team.
Don't hesitate to reach out with any other questions you might have.
