Coil spring

Quick Learner from Saint Augustine, FL

Jan 16, 2022 8:55 pm

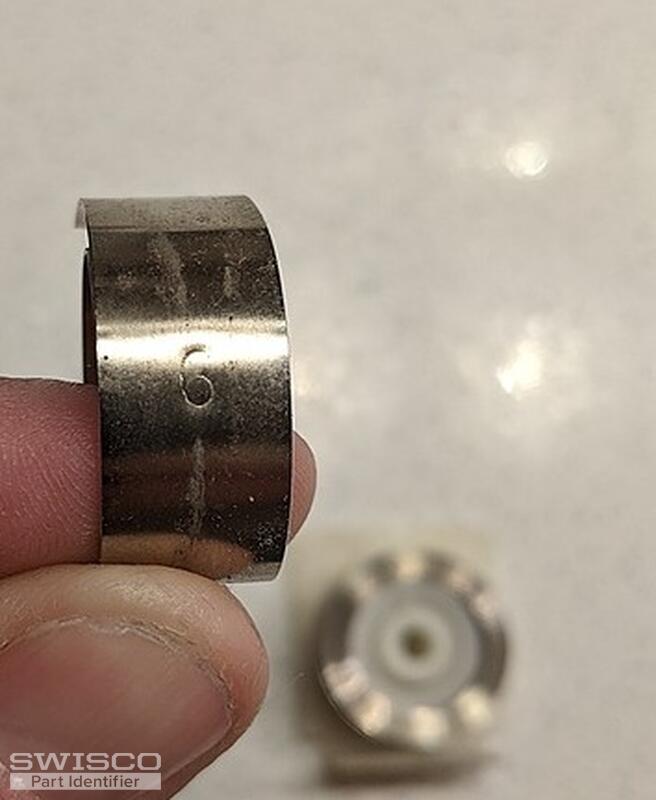

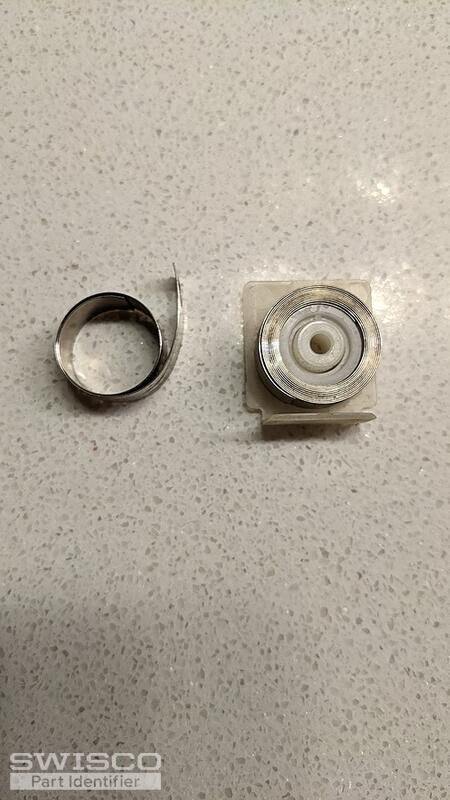

No markings on window, but a number 6 or 9 on the spring. The lower window weighs 11.4 pounds . The window is a double hung tilt sash window with both sections tilting in.

2 user uploaded images

4 Replies

Casey from SWISCO

Jan 18, 2022 3:32 pm

Hello,

If you could show us the pivot shoe that these coils anchor to, as well as confirm the width of your coil springs, we'd be happy to confirm your best replacement option. Thank you!

Quick Learner from Saint Augustine, FL

Jan 20, 2022 8:40 pm

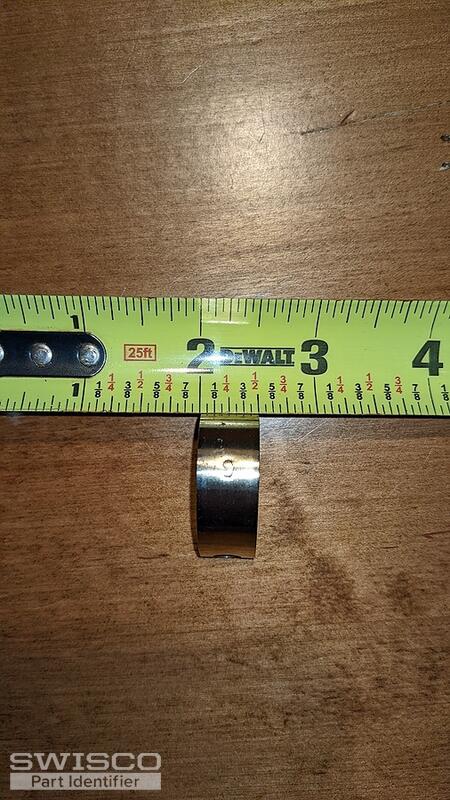

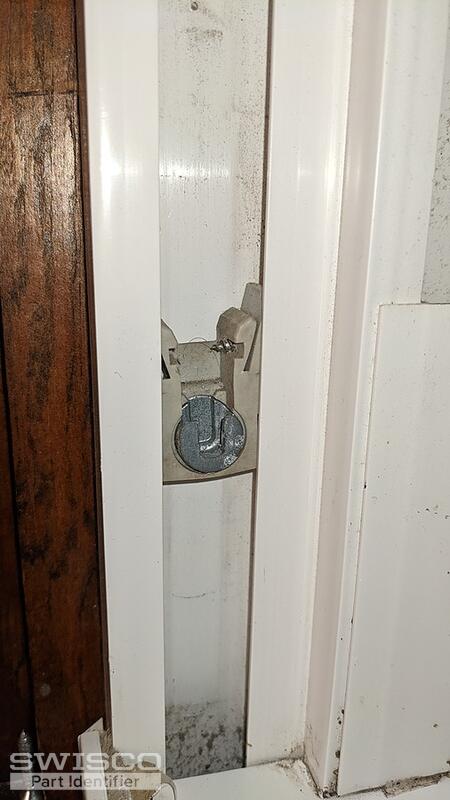

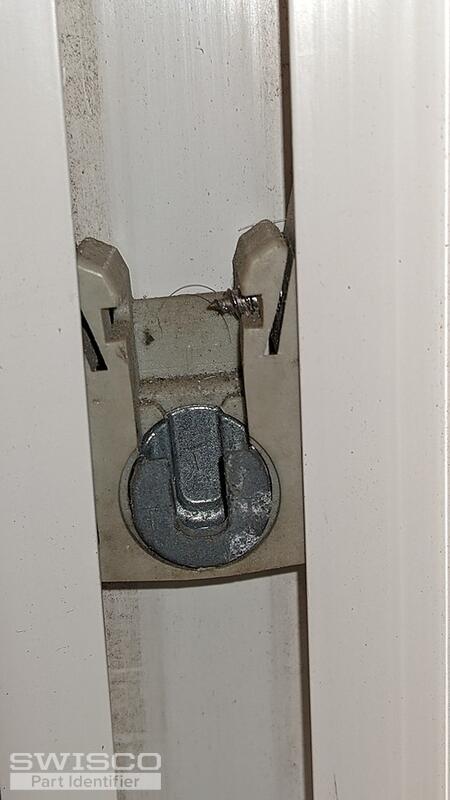

Here are photos of the pivot shoe and width of the coil spring.

3 user uploaded images

Casey from SWISCO

Jan 21, 2022 8:13 am

It's tough to be sure with it still installed but your pivot shoe resembles the 15-177, which uses the 1/2" wide S152 coil springs. For the sash weight you provided, I would recommend using one S152-6 on each side of the window. Thanks for posting.
