Coil spring balance replacement

A quick learner from Cincinnati, OH says:
August 6, 2022

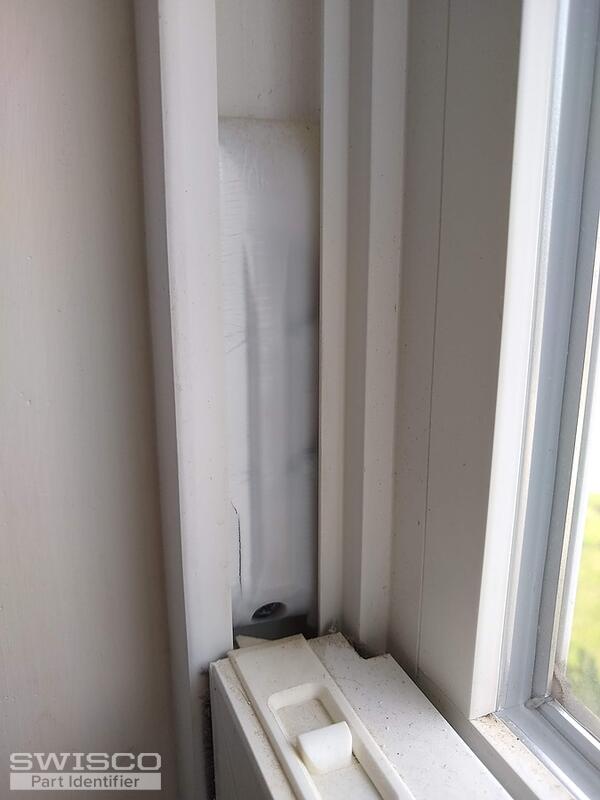

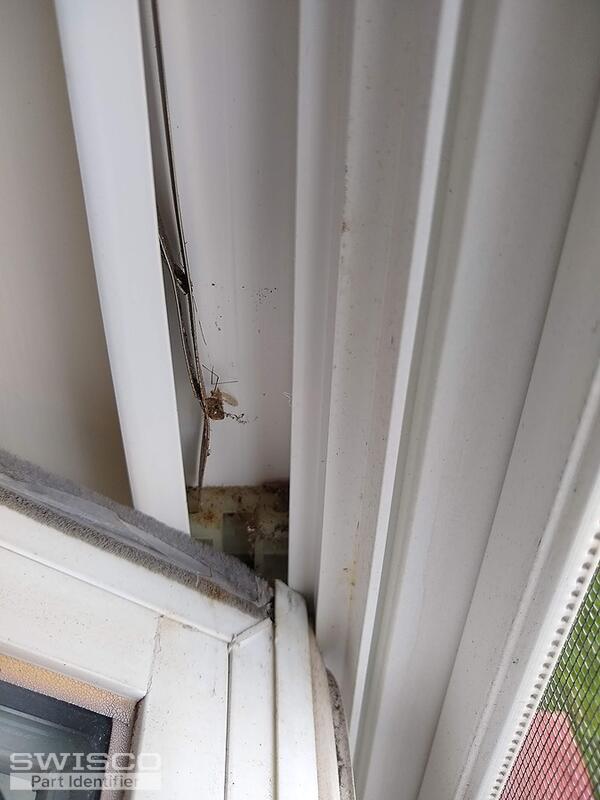

The spring unit is 4.5 inches long. There are no markings on it. Installed in 2002 when house was built. The coil cover allows the sash spring clip to slide over top of it. If the coil unit is too thick, it will catch on the spring clip and prevent the window from opening.
The sash weight is 21 pounds. The spring unit has broken on several windows and I'm looking for a suitable replacement.
Thank you!
Thumbnail of the uploaded file named IMG_20220806_171237986.jpg
Thumbnail of the uploaded file named IMG_20220806_171745217.jpg
Profile picture of Tom
Tom from SWISCO responded:
August 10, 2022

It's very difficult to make out your pivot shoe from these photos, as it is obscured by the sash, but it looks like it might be a match for our 15-199.

If I'm right, then this shoe is compatible with two different sized springs: either the 1/2" Series 160 or the 3/8" Series 165. You will need to remove one of your originals and measure it to confirm the better option.

I personally think you might have the Series 165. If I'm right then you can also use the 15-204 cover. Don't take my word for it, though. You should measure to be safe.
A quick learner from Cincinnati, OH says:
September 30, 2022

Your recommendation was great: the Series 165 hardware was a perfect fit.

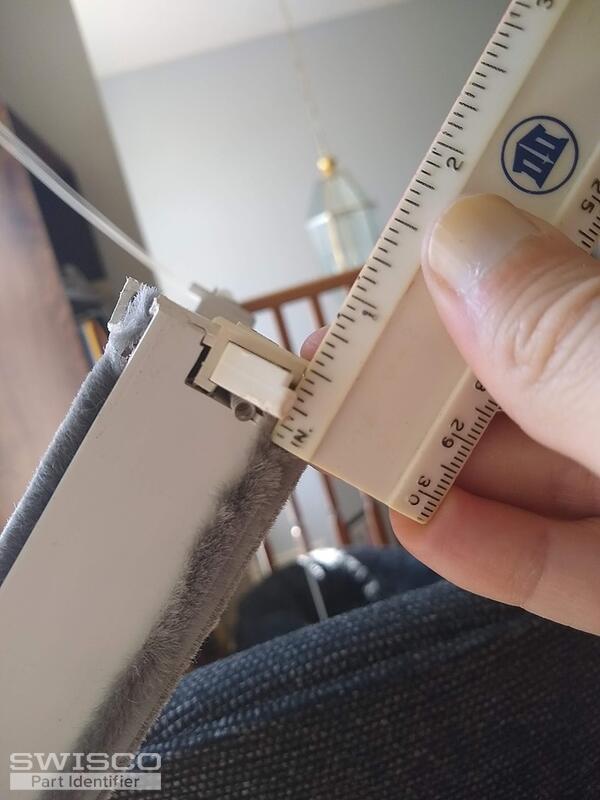

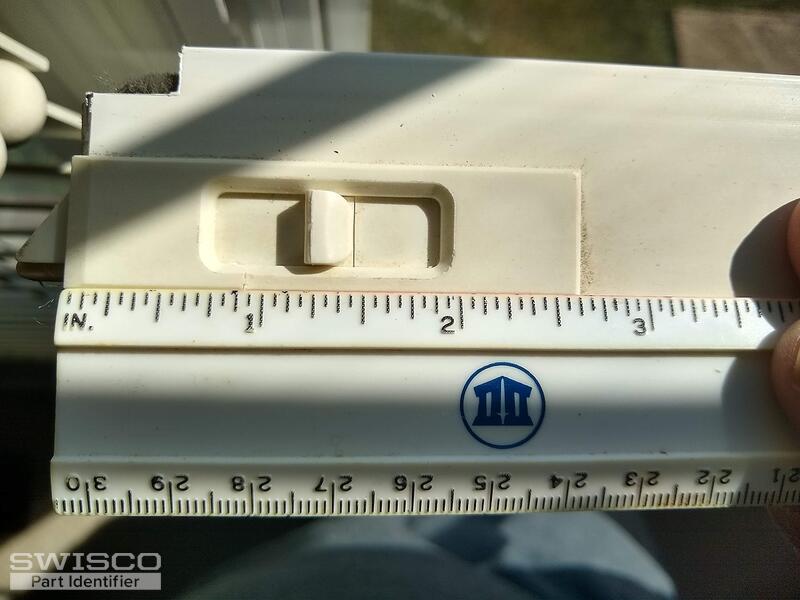

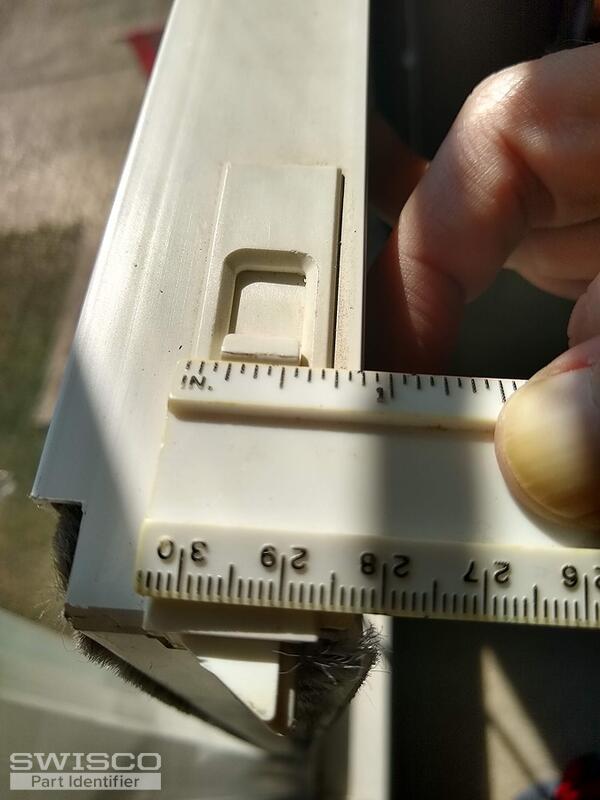

I need one more thing- a replacement for a cracked tilt latch. It is 2 5/8" long, 11/16" wide and 1/2" deep. I have attached photos. Please suggest a replacement.

Thank you!

-Chris

Thumbnail of the uploaded file named IMG_20220930_114859488_HDR.jpg
Thumbnail of the uploaded file named IMG_20220930_115024727_HDR.jpg
Thumbnail of the uploaded file named IMG_20220930_115132948.jpg
Profile picture of Tom
Tom from SWISCO responded:
September 30, 2022

Great! I'm glad to hear that our balance worked out for you.

As for this tilt latch, my recommendation would be our 26-243 and 26-244. Look these over and see what you think!
