Coiled spring on side of window

Quick Learner from Owego New York

Jan 26, 2024 2:03 pm

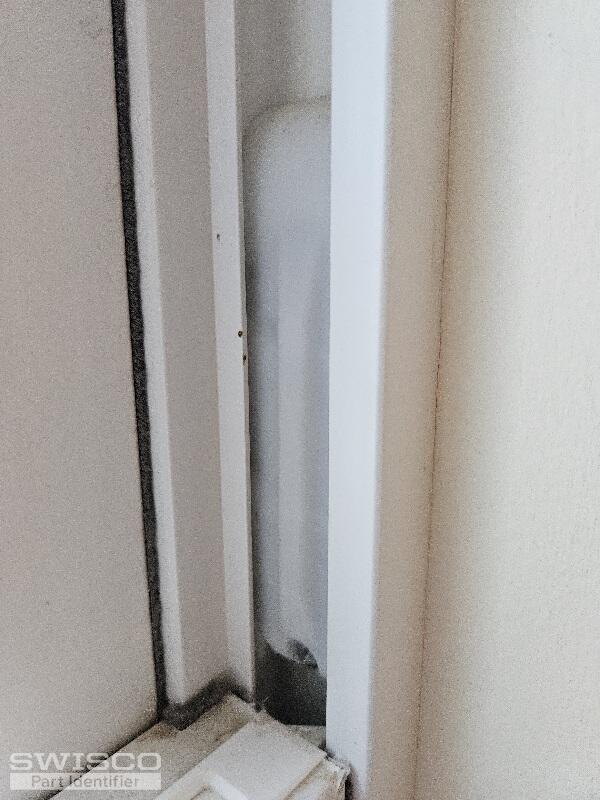

I have a A double hung 2852W purchased fall 2006. The coil spring (it is actually 3 loops) and cover. Cover broke and one spring is deformed. Need new part. And insturction how to install as the "opening" is too short. This part had to have been installed

1 user uploaded image

5 Replies

Quick Learner from Owego New York

Jan 26, 2024 2:43 pm

Each spring is marked #4.0 35" which I assume means 4 pounds and 35". For a total pull of 12 pounds per side.

Emily from SWISCO

Jan 29, 2024 9:28 am

Hello there!

I believe we can help with this. Can you flip the pivot shoe over and show us a photo of the front of it? Could you write out the width of the coil spring band as well?

You're also correct about the coil spring markings. The #4.0 represents the weight of each spring.

If your window doesn't have a cutout, see the video below and let us know if this helps.

Quick Learner from Owego New York

Jan 29, 2024 8:43 pm

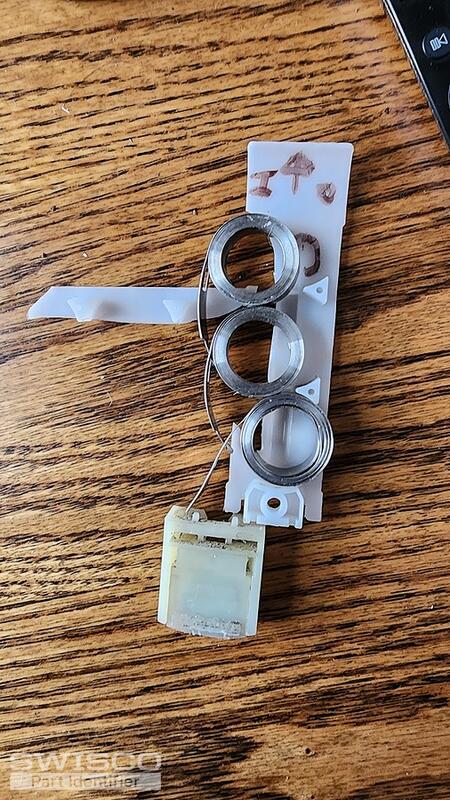

The springs are 3/8" wide.. The white plastic cover has no discernible markings. Picture attached

Window is a double hung 2852W purchased fall 2006

1 user uploaded image

Emily from SWISCO

Jan 30, 2024 9:51 am

I'm afraid this new photo doesn't show the pivot shoe. Our 15-199 came to mind when I saw your initial photo but this is just an educated guess. If our pivot shoe indeed matches up with yours, see the 3/8" wide S165-4 4-pound coil spring. The 15-205 is the compatible triple coil spring support. Take a look and let me know if you have any questions.
