Constant force balancer

Question

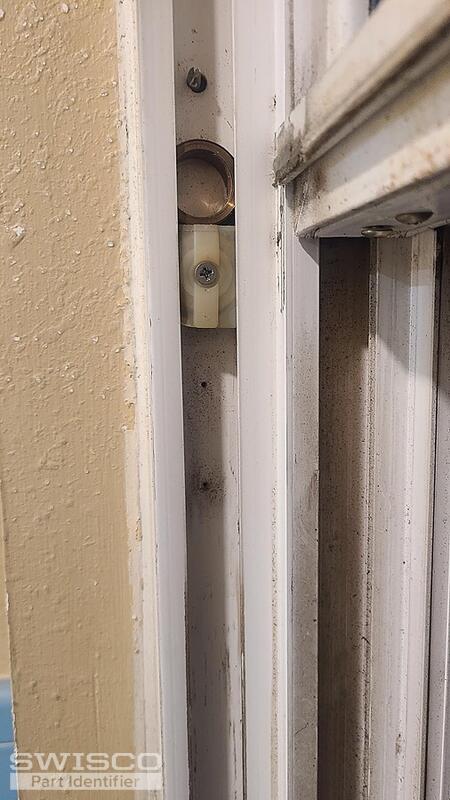

Hi. Looking for parts to replace entire coil balancer system. I have included several pics. Pic #1000014969 shows the coil housing/keeper but I believe there were 2 of them (I see 2x keepers on the other sash).
We have had the original window company service theses 2x since they were installed in 2009. I wasn't there for the last service, but my wife stated that the tech "tightened them." It looks like he may have removed a coil, then positioned it higher in the frame as evidenced by the 3 screw holes rather than 2. Ultimately, that repair failed soon after and we have just propped the window up with a paint roller cover.
Any help appreciated. I am best reached via email.
Thanks!

Jasmine · Accepted Answer

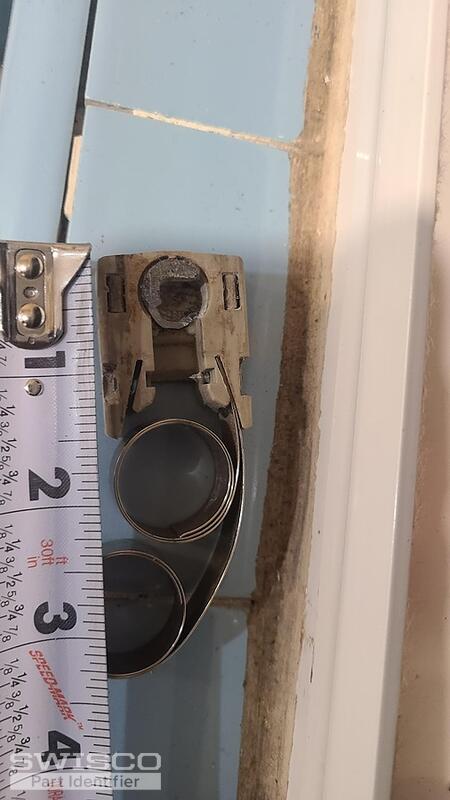

This coil balance shoe is a match for the 15-177 Coil Balance. I'm confident this is what you'll need but be sure to review and compare the dimensions.

Alternate image for 15-177

The compatible coils are the Series 152 Coil Balances, secured to the shoe using the 33-072 shoe. Yours appears to be stamped with the 6, so I believe you'll need the S152-6. However, it may be a good idea to double check the sash weight given the "repairs" previously made. He may have either removed a coil or you may need more that just the 6lb coil.

The pivot bar can likely be replaced with the 26-226 but you'll need to find an undamaged pivot bar to compare the dimensions.

End view of the 26-226 pivot bar
