Couldn't find this part

Contractor from Jacksonville, fl

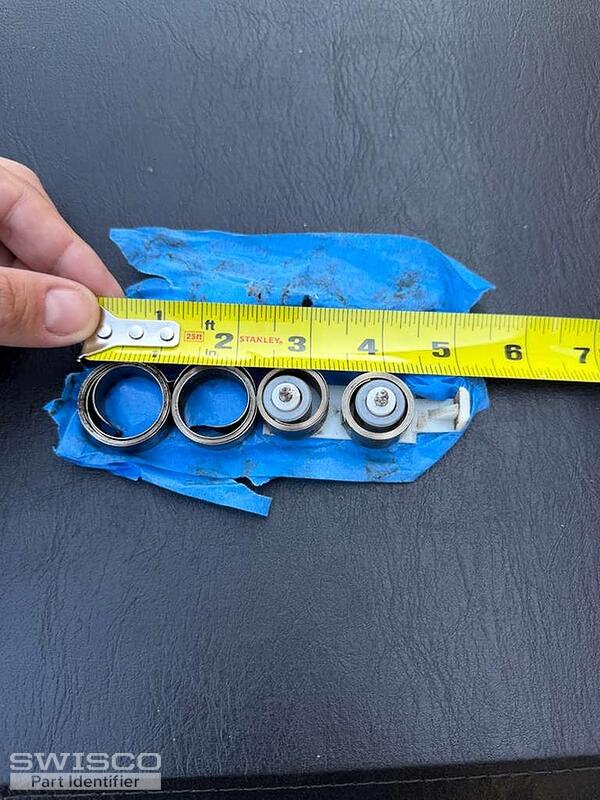

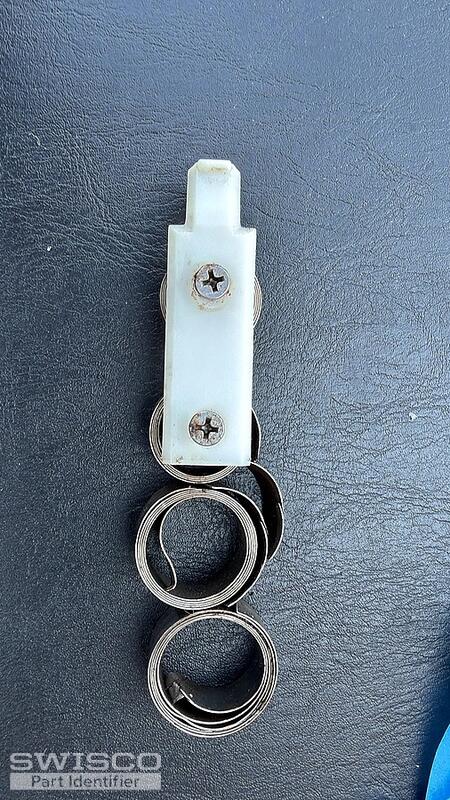

Hello, I was trying to identify those 2 window balances, could you help me with that?
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for reaching out to us! You'll need the 15-180 Coil Balance Shoe to replace your balance shoes. It is compatible with the Series 190 Coil Balances, attached using the 33-073 screw. You'll need the 15-181 Double Support Detent Clip, used along with the 15-182 Balance Bushing, to anchor the coils in the window track. The 15-186 is used for balances with a single coil.

The 26-040 or the 26-089 can be used to replace the pivot bar.

Alternate image for 15-180
Alternate image for 15-180

For instructions on selecting the correct coil weight option for your assemblies, take a look at the video tutorial below.
