Series 795 with Metal Hook?

A home owner from Dallas, TX says:
Can I have the 15-198 balance clip attachment placed on the S795-32D channel balance? Thanks in advance for your help.
Profile picture of Bob
Bob from SWISCO responded:

Sure, we'd be happy to do this for you. I just need a little more information to get this started for you.

  • To confirm, you have a 32" Series 795 with a stamp code of 32D. Correct?
  • What T-Lock Shoe is attached to this balance? Is it our 15-195, 15-195B, or 15-194? If you're uncertain, send us pictures.
  • In some cases, one can avoid needing custom balances with the hook attached if the hole in that window track is a certain shape. Can you show us the hole in the window track? If it's square-shaped, you can use our 26-200 Screw Plug along with our standard balances.
  • How many balances do you need?

From there, we'll get this going for you. Many thanks.

Profile picture of Bob
Bob from SWISCO responded:

Thanks for getting back to me. Good news! That square hole means you can use our normal S795-32. Just insert our 26-200 Screw Plug into that hole, then screw the balance in at the top. You will also need our 15-194 T-Lock Shoe, sold separately. It's very easy to swap this shoe out with the one that comes installed by default with the Series 795 (our 15-195). See the video below for details.

A home owner from Dallas, TX says:

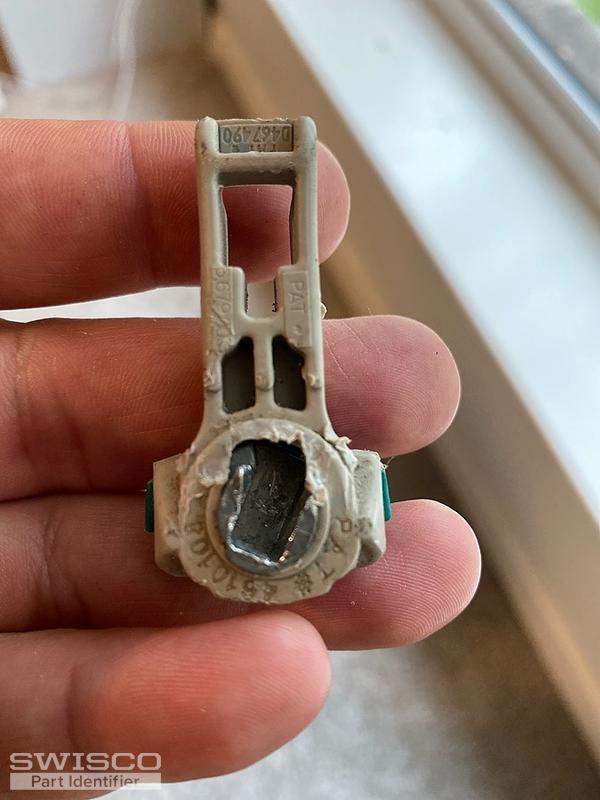

Here are the photos
Thumbnail of the uploaded file named CDE6DA97-9112-404E-983F-CA3F0A370A90.jpeg
Thumbnail of the uploaded file named BF398A75-41E9-4C79-AFBB-32D0912CF255.jpeg
Thumbnail of the uploaded file named 74A29FE3-4930-4258-9907-BE87CCFCA676.jpeg
Thumbnail of the uploaded file named image.jpg
How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
How to install the 26-200 Screw Plug
How to install the 26-200 Screw Plug
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
Classifying Channel Balance Fittings
Classifying Channel Balance Fittings
GUIDE
READ >
