Dashwood Casement Cranks
Hello,
Your operator resembles either the Caradco or Enturgard operator pairs related on this page depending on the length of your shorter link arm. The Caradco operators measure 3-13/16", while our nearly identical EntryGard operators link arm measures 4-7/16". Take a look at the dimensions below to determine which set of operators you need. If you need new hinges as well, see the 10" long 36-048 set. Thank you!

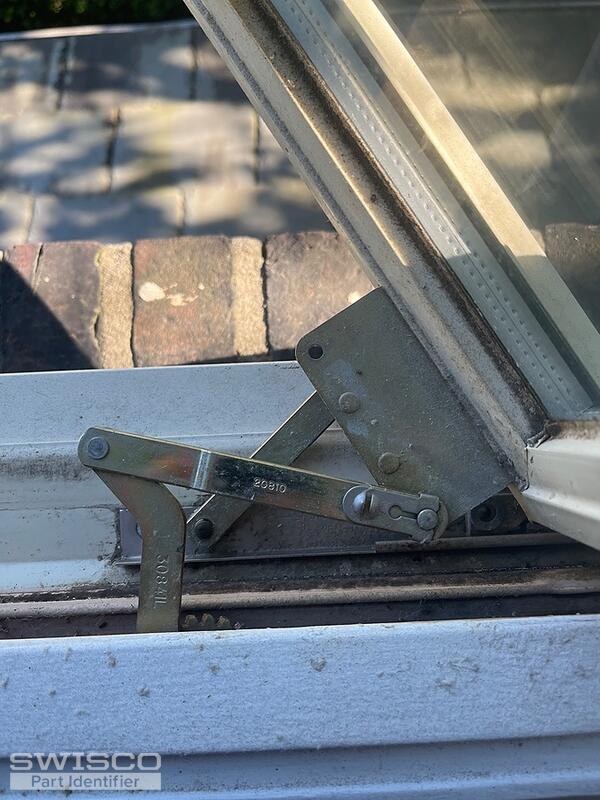

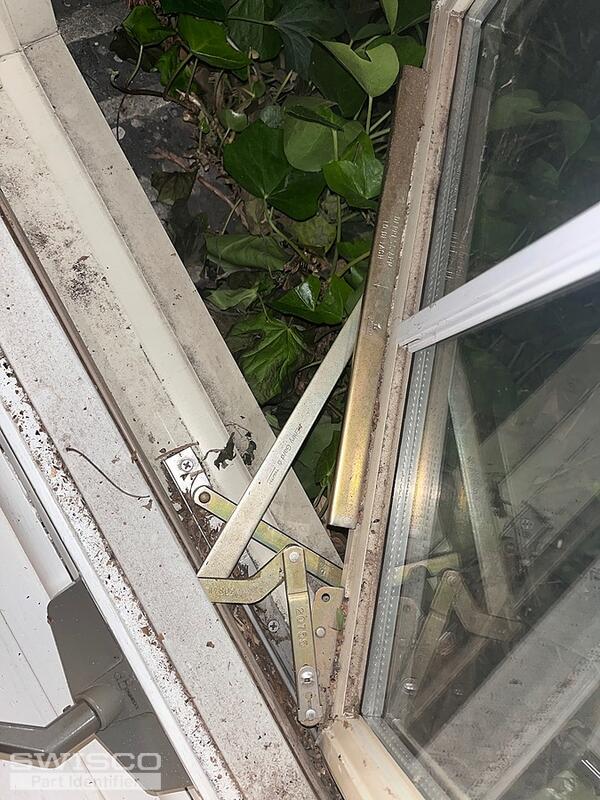

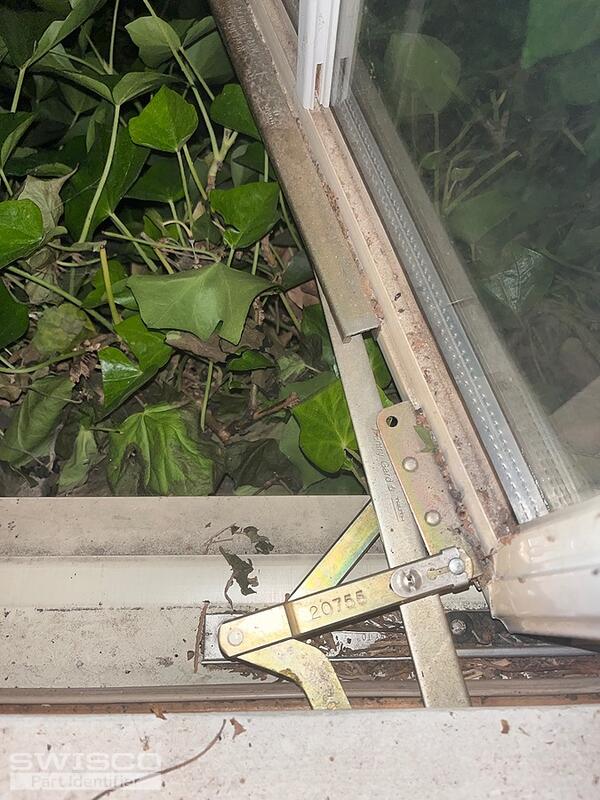

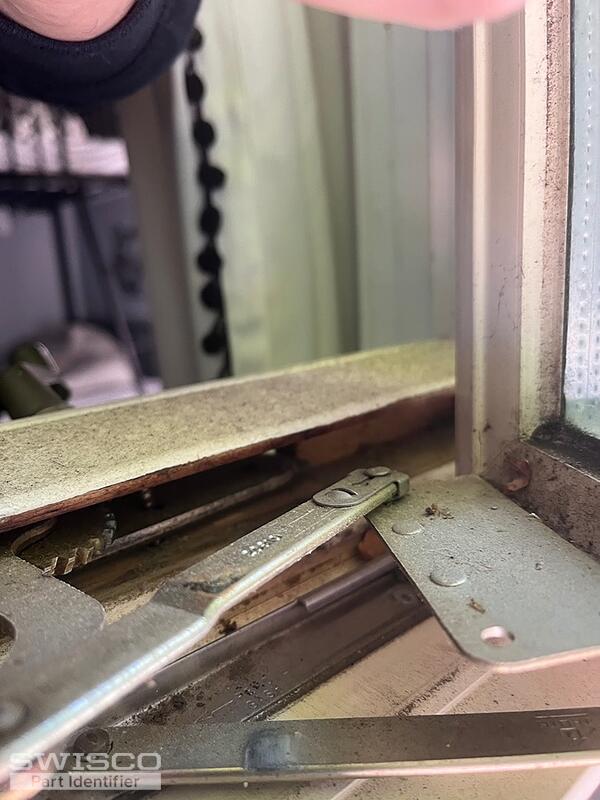

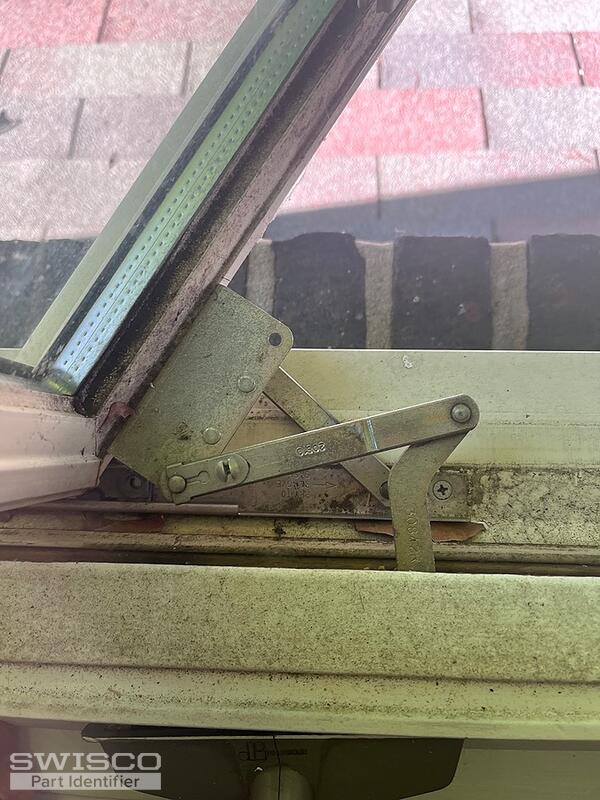

Some of the letters and numbers on there: 20810 and 30842R (this is from right window if you are on the outside looking in) and 20810 30841L (from the left window if you are outside looking in)

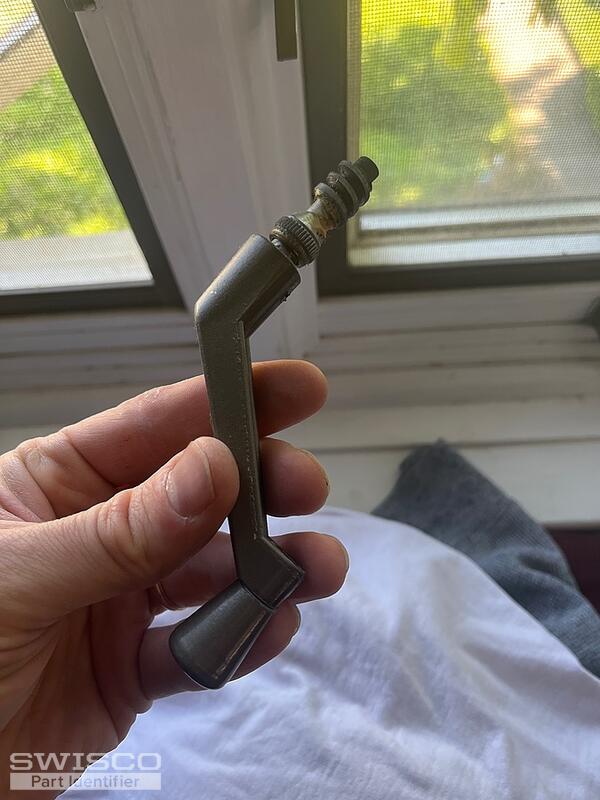

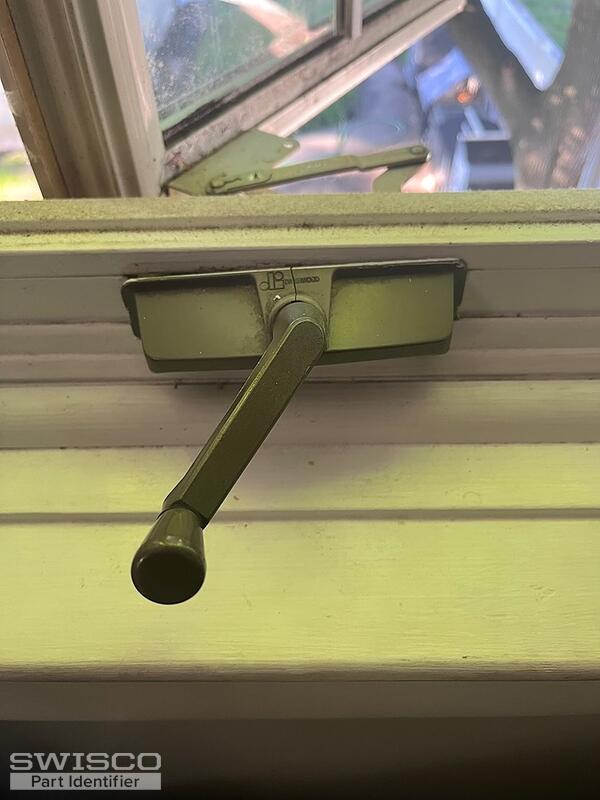

Also need help in replacing the crank handle and cover over the operator. I took a picture of it too.
It looks like this window uses the same type of 36-048 style hinges but the operator doesn't have the long arm. You most likely have an older version of the 39-035 and 39-036 operators. These use the same 39-107FK handle and cover kit as the other operators we discussed. Take a look and let us know if you have any other questions.
