Double Coil Balance

Tom from SWISCO

Jun 21, 2019 1:41 pm

Thank you for your picture submission.

It looks to me like your pivot shoe is similar to our 15-177.

Can you possibly send us a picture of the coil removed from the shoe? There are a few different coil series that this pivot shoe is compatible with.

12 Replies

Handy Person from Portland, Oregon

Jun 21, 2019 1:50 pm

Hello,

I searched your website for a similar model and found:
12 LB SERIES 140 QUICK-TILT, DUAL

My part is 1/2" wide coil, 1 1/4" X 9/16" block. The stamp number is 6.

Please let me know if the part I found above is compatible to my described part.

1 user uploaded image

Handy Person from Portland, Oregon

Jun 21, 2019 4:28 pm

See attached pics.

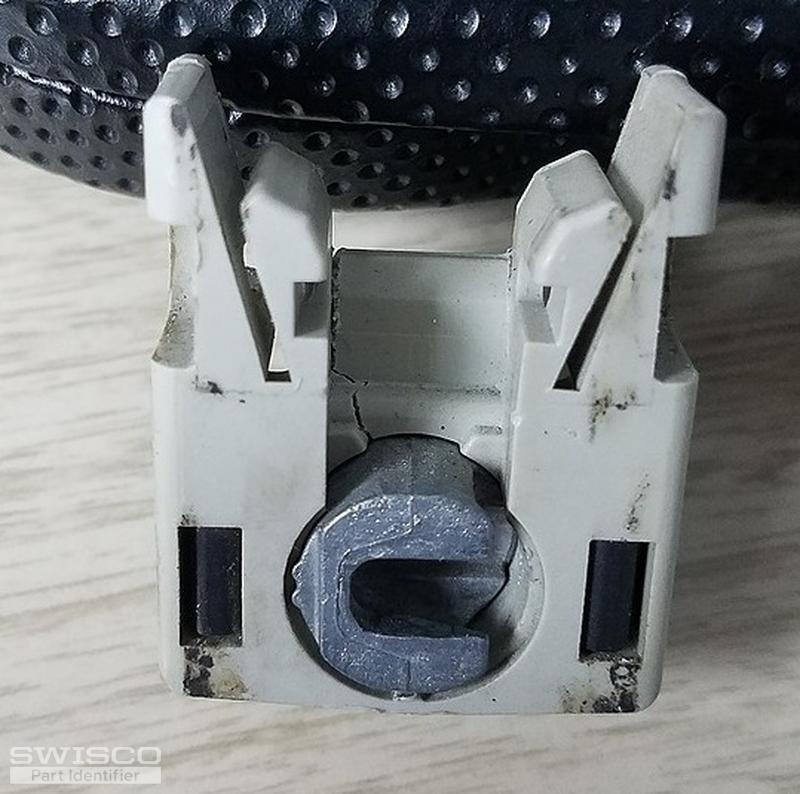

3 user uploaded images

Handy Person from Portland, Oregon

Jun 22, 2019 1:20 pm

Any further updates on this?

Tom from SWISCO

Jun 24, 2019 11:33 am

Thank you for the additional pictures.

Do you have any of just the coil springs? This will help us determine the proper series you need.

Handy Person from Portland, Oregon

Jun 24, 2019 4:57 pm

I have two different coils I need in replacement for. One of them has the number 6 stamped on it and the other. 5K.

All are 1/2" wide. The top coil if the double coil is smaller than the bottom one.

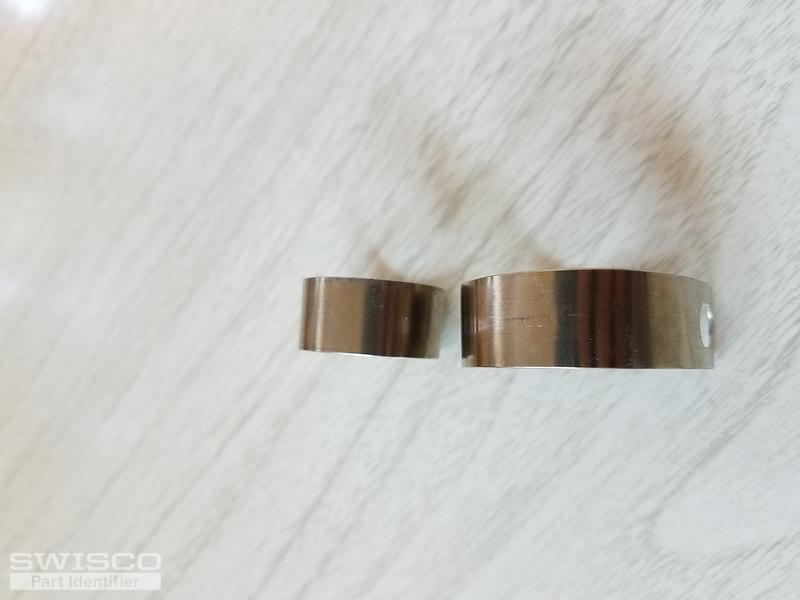

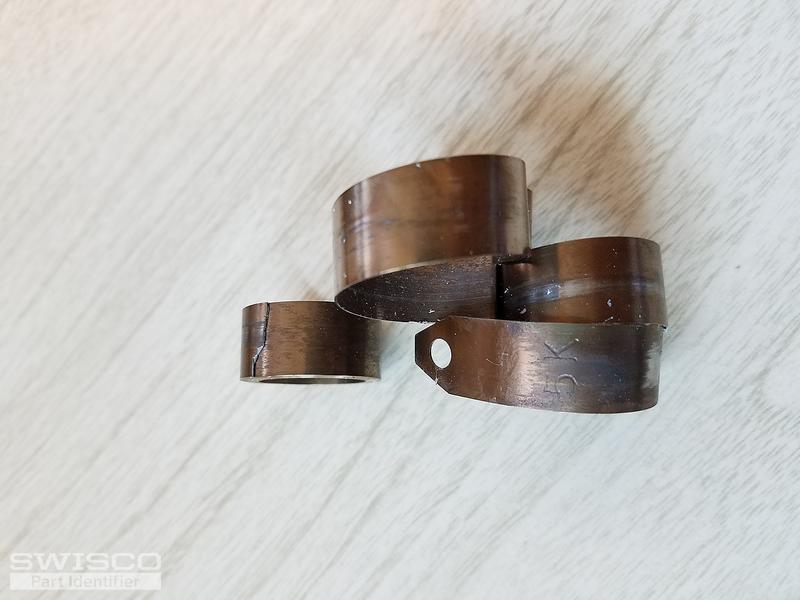

2 user uploaded images

Tom from SWISCO

Jun 25, 2019 8:31 am

Once again, thank you for the additional pictures.

It looks to me like you have our Series 152 coil balances and based on the information you provided, you will need both 5 and 6 lb coils.

If there is anything further I can do for you, please let me know.

Tom from SWISCO

Jun 25, 2019 4:05 pm

The only way to know that for sure will be to remove your window and physically weigh it.

Each coil can only hold so much weight so in order to know what that number is, you need the weight of your window divided by 2, and in your case divided by 2 again since there is more than one coil on each side.

If you can get this done, we will be able to lock down the coil options for you.

Handy Person from Portland, Oregon

Jun 25, 2019 4:52 pm

Hi,

Would the 1st coil actually be a 9lb? Because if compared in same direction as the 5k coil, it would actually be #9 stamp? Is this correct?

Handy Person from Portland, Oregon

Jun 25, 2019 5:10 pm

Hello,

How exactly do I purchase a double coil balance for the 152 series? I don't see it in your online store.

Handy Person from Portland, Oregon

Jun 25, 2019 11:44 pm

Never mind. I believe I have a single coil balance.

Yes. I measured the window to be 20lbs. So it's safe to say it's a #6 stamp.

Thanks.

Tom from SWISCO

Jun 26, 2019 10:53 am

If your window weighs exactly 20 pounds, you will need to order two 5lb coils for each side of the window in order to properly stabilize the window.

I believe that your current balances were holding too much tension and that is why they broke the way they did.
