Double hung vinyl window balancers

Landlord from Kalamazoo

Oct 14, 2020 10:30 am

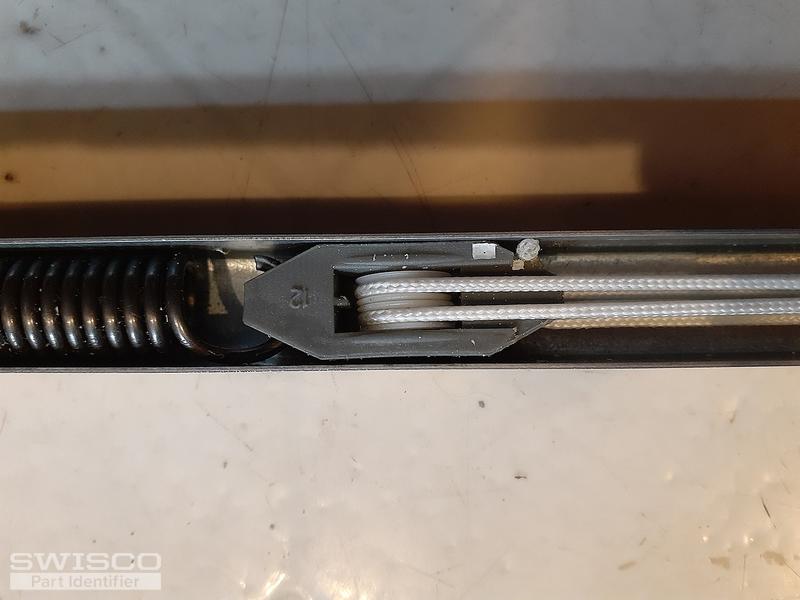

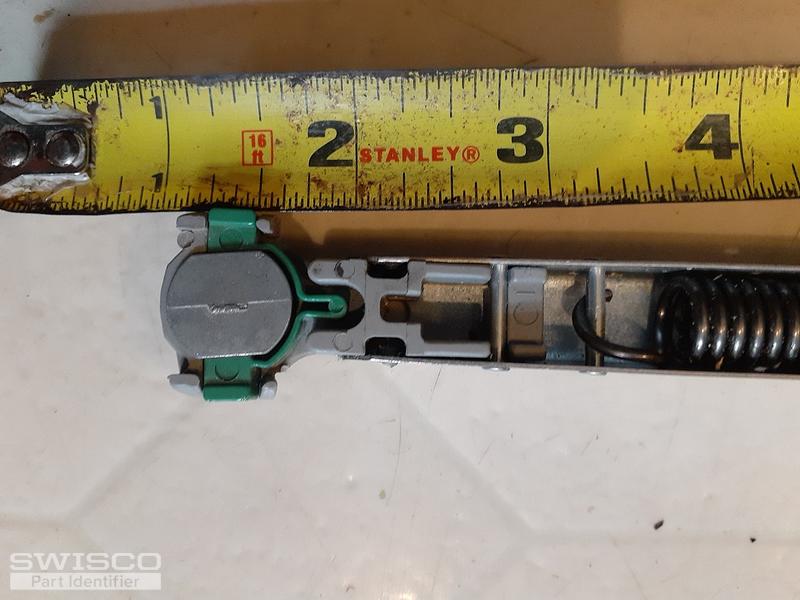

Need 2 replacement balancers for bottom sash. Pics are of top sash balancer. I don't have the bottom balancers so can't send pics of those - should they be same as the uppers? Bottom sash is same size as upper. I need supplies for full replacement: balancers , guides, clips, rivets, rivet set tool, etc.

5 user uploaded images

4 Replies

Casey from SWISCO

Oct 16, 2020 1:38 pm

Hello,

It looks like you need custom S795 balances with the smaller 1" wide 15-194 t-lock shoe and 15-198 clip. If you have another window that is the same size, I would recommend removing one of the balances for the bottom sash to confirm the length and stamp option you'll need for your balances. Thank you!

Landlord from Kalamazoo

Oct 20, 2020 10:58 am

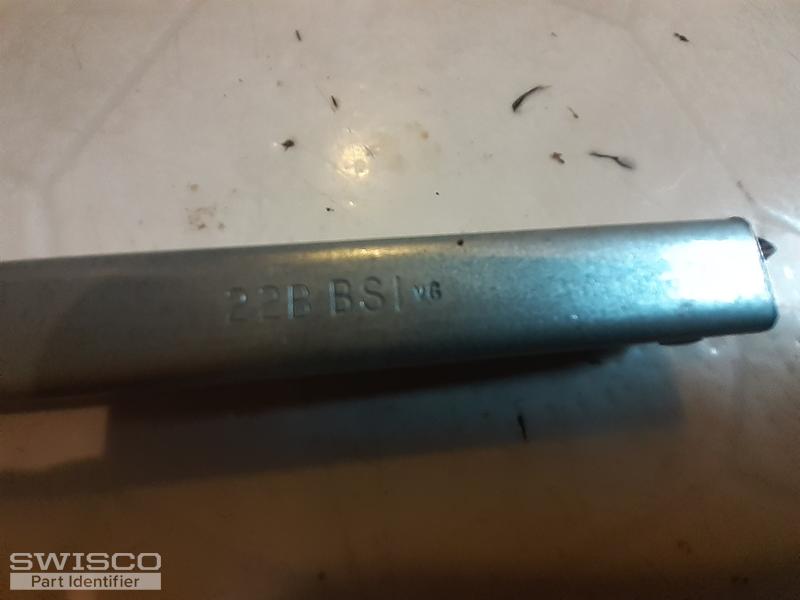

Thanks for the suggeation. I found another identical window. The bottom balancers appear to have the same hardware (guides, clips, etc.) as the uppers. They do have a different stamp, though: 24A BSI. The length of the balances without guides or clips is 24".

Please advise on what I need to complete the job including 2 balancers with any necessary guides, clips, and an appropriate number of rivets, and the rivet set tool. Thanks!

2 user uploaded images

Casey from SWISCO

Oct 21, 2020 1:13 pm

We appreciate your patience as we got your price quote and order link together. We just sent over a link for two replacement balances with the 1" wide 15-194 attachment and 15-198 clip. Take a look and please let us know if you need anything else. Thank you!
