Early 2000's Simonton Window Pivot Bars, Shoe and Coil Needed

Question

Hello,
I'm in need of around 6 sets of pivot bars, shoes and coil assembly parts for my windows.
I believe https://www.swisco.com/Simonton-Pivot-Bar/pd/Tilt-Window-Replacement-Sash-Pivot-Bars/26-336 is the pivot bars my windows use. And I'm unsure about the rest of the parts needed to repair my bottom sashes ability to operate normally again.
My windows are from around the year 2000.

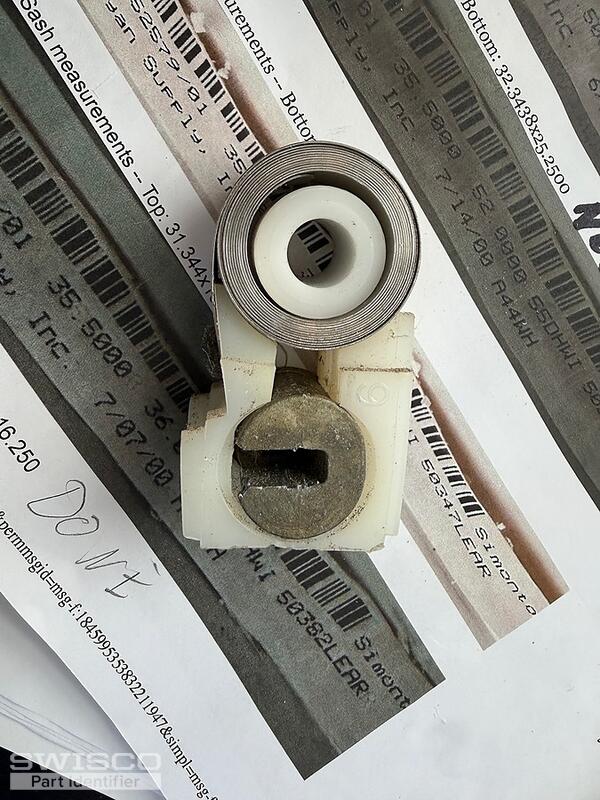

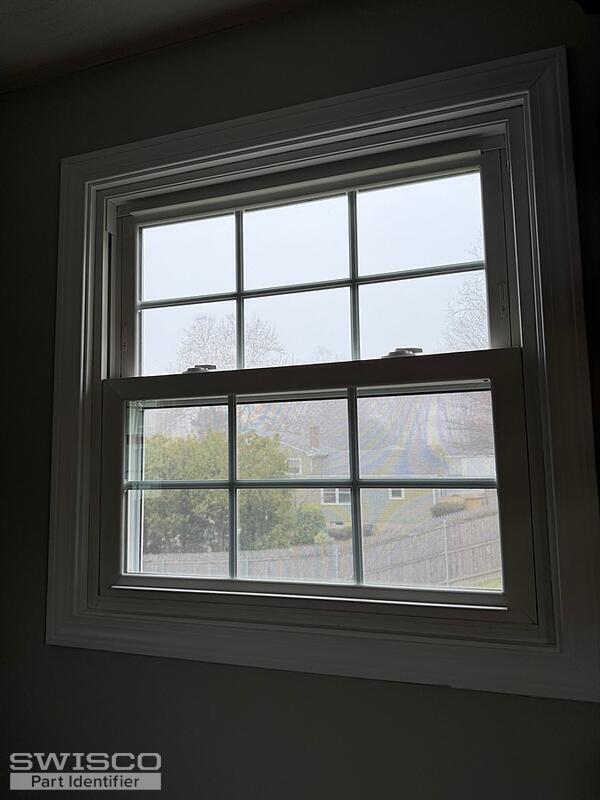

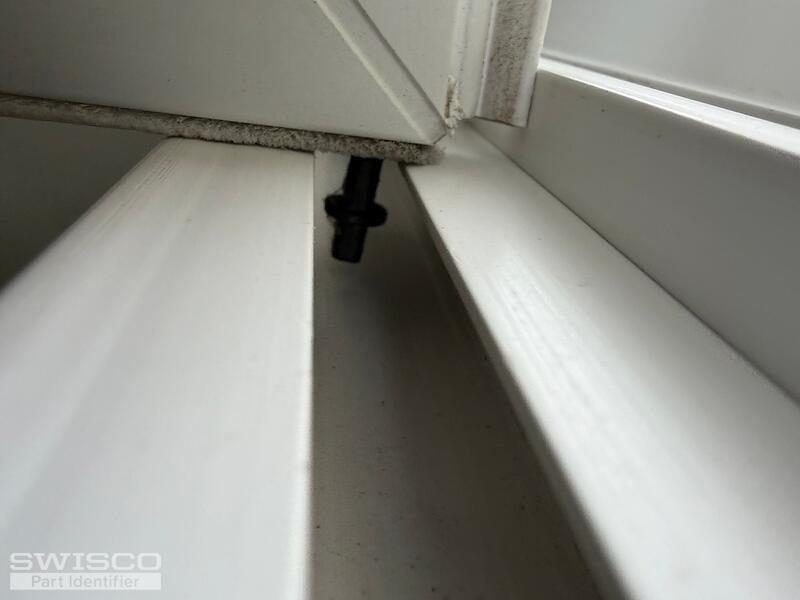

I've attached photos, but let me know if you need more details. Thanks!
-Ryan

Emily · Accepted Answer

Hi there!

Thanks for reaching out to us. We're familiar with the assembly shown here, but we don't have an exact match for it. What we recommend is the 15-259 pivot shoe and S159 coil balances. You will also need the 26-083 pivot bar and 15-255 or 15-256 supports. The video below will go over the replacement process.

Feel free to get back to us with the exact sash weight, and we can calculate the coil weights.
