Encasement window hardware replacement

Home Owner from Sitka,AK
Sep 13, 2024 6:23 pm
Truth brand, need new hardware for encasement windows.

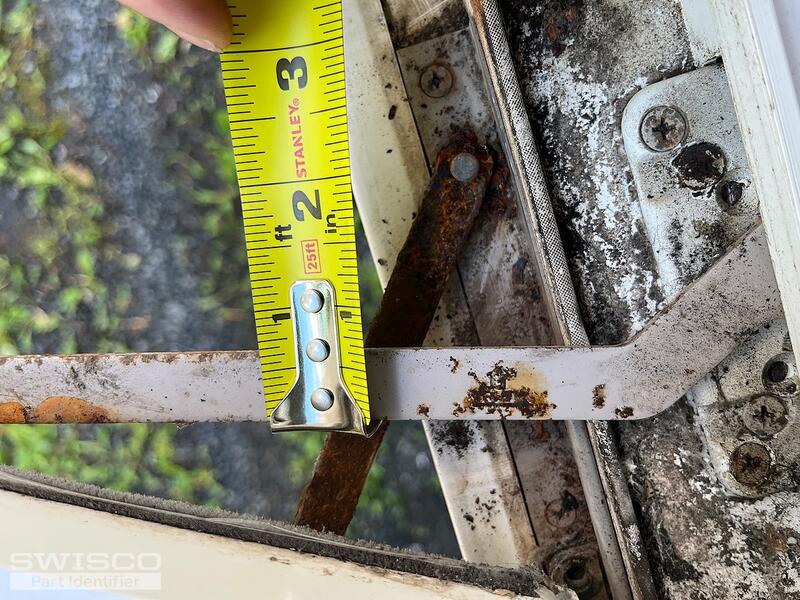

casement operator hinge shoe casement arm casement arm casement arm
5 user uploaded images
1 Replies
+ Add a Comment
Emily
Emily from SWISCO
Sep 18, 2024 8:31 am
SWISCO
EXPERT

Hello there!

Start by taking a look at the 39-013 and 39-014 operators along with the 36-048 hinge set. The arm for the operators is 13-1/2" long when measured from the center of the gear to the center of the roller wheel. Review the specifications and see if they match what you're searching for.

Dimensions for 39-013
Dimensions for 39-013

Dimensions for 39-014
Dimensions for 39-014

Detail of 36-048
Detail of 36-048

Additional dimensions for 36-048
Additional dimensions for 36-048

+ Add a Comment
Products and resources found in this discussion
Casement Window Operator, 13-1/2" Arm
Casement Window Operator, 13-1/2" Arm
39-013
$20.70
Casement Window Operator, 13-1/2" Arm
Casement Window Operator, 13-1/2" Arm
39-014
$20.70
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
How to identify casement and awning operators
How to identify casement and awning operators
VIDEO
READ >
How to Replace a 2-Bar Hinge Set on a Casement Window
How to Replace a 2-Bar Hinge Set on a Casement Window
VIDEO
WATCH >
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
