Entrygard casement operator
Home Owner
Aug 17, 2025 10:02 pm

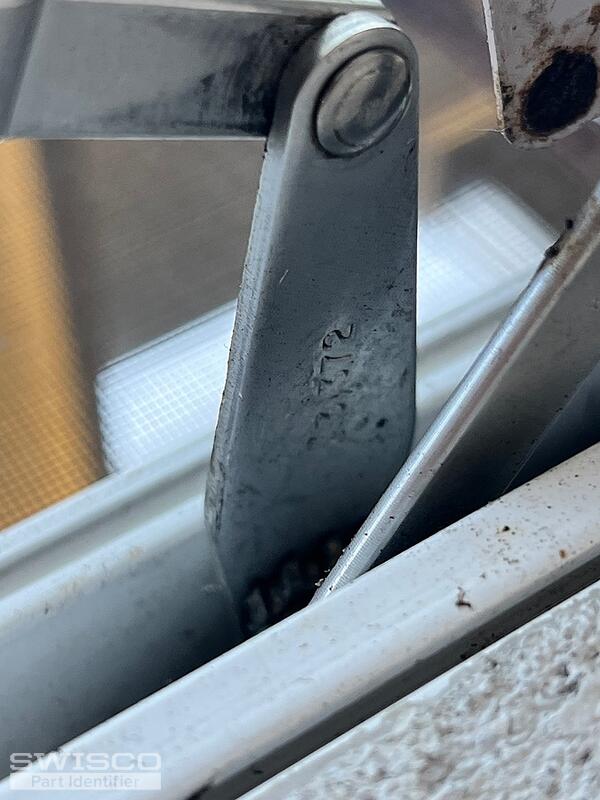

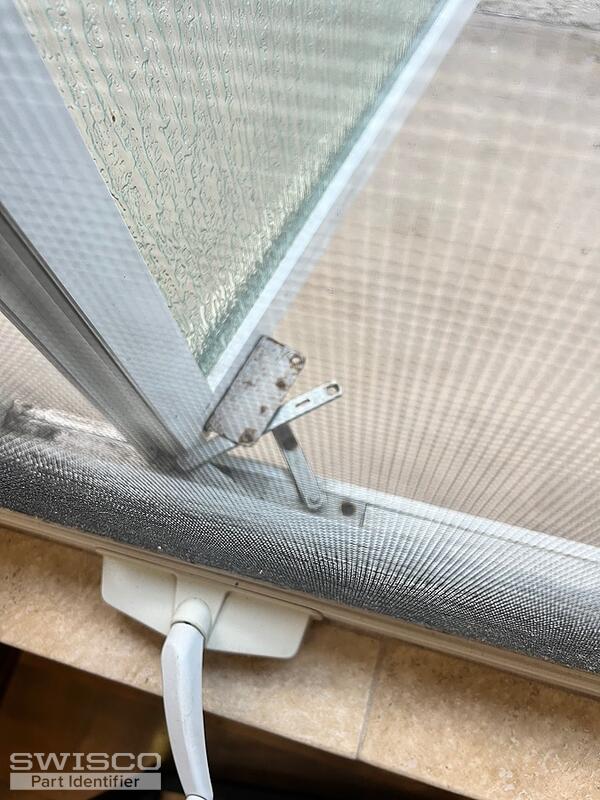

Hi we just moved into our house and this kitchen window is broken and missing some pieces it seems. Do you think you could help us identify which parts we need to buy? Looks like maybe the whole operator needs to be replaced ? Thanks so much
5 user uploaded images
2 Replies
Bob from SWISCO
Aug 17, 2025 11:59 pm
Thanks for posting. It looks like you have the 39-035 and 39-036 Dyad Operators. See their dimensions below. For new handles, see the 39-114L. For a new cover, see the 39-107. For new stud brackets, see the 39-560 and 39-561. Let me know if you have questions.
Dimensions for 39-035
Dimensions for 39-036
