GLW parts pictures

A quick learner from Monticello says:
December 20, 2016

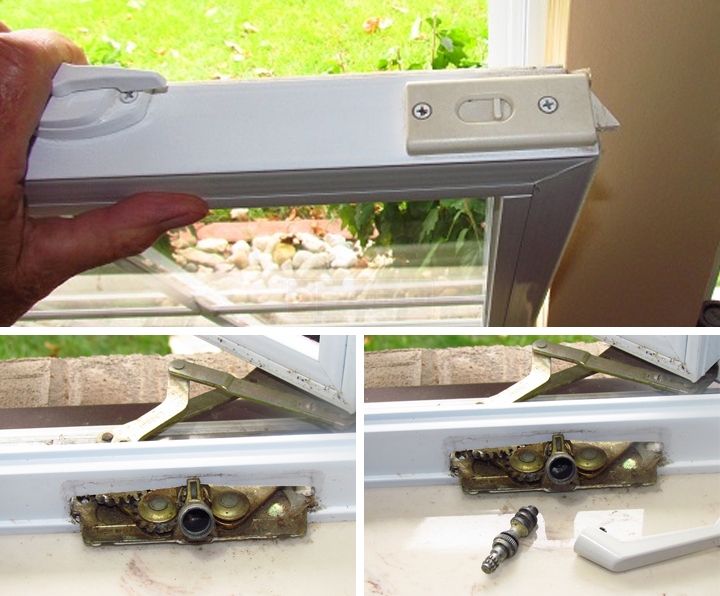

The picture of the tilt window lock for left side. The open and close mechanism for a casement window right side.The designation of left and right is from inside of the window. The GLW windows were installed 1991. No stickers on inside of windows. The arm part number is L30841 no number on the plastic tilt locks.

Hope this helps in identifying the parts.
User submitted photos of window hardware.
Profile picture of Paul
Paul from SWISCO responded:
December 22, 2016
Thanks for posting. Let's start with the tilt latches. Look at our 26-120 and 26-121 and carefully go over our dimensions to confirm that they match. As for the operator, see our 39-031 and 39-032. Again, I would just make sure our dimensions are the same as yours. If you also need a new cover and handle, see our 39-107 and 39-114L, respectively.
Profile picture of Tom
Tom from SWISCO responded:
December 22, 2016
I think you may also want to consider our 39-035 and 39-036 operators. The 39-031 and 39-032 that Paul recommended have long arms in addition to the link arm, but I can't tell from your photo of you also have this arm or not.
EntryGard Dual Arm Operator
EntryGard Dual Arm Operator
39-031
$29.70
EntryGard Dual Arm Operator
EntryGard Dual Arm Operator
39-032
$29.70
Truth Hardware Operator Cover
Truth Hardware Operator Cover
39-107
$3.30
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
LH Top Tilt Latch, 2-1/8"
LH Top Tilt Latch, 2-1/8"
26-120
$2.43
RH Top Tilt Latch, 2-1/8"
RH Top Tilt Latch, 2-1/8"
26-121
$2.43
