Help Identifying Hardware

Question

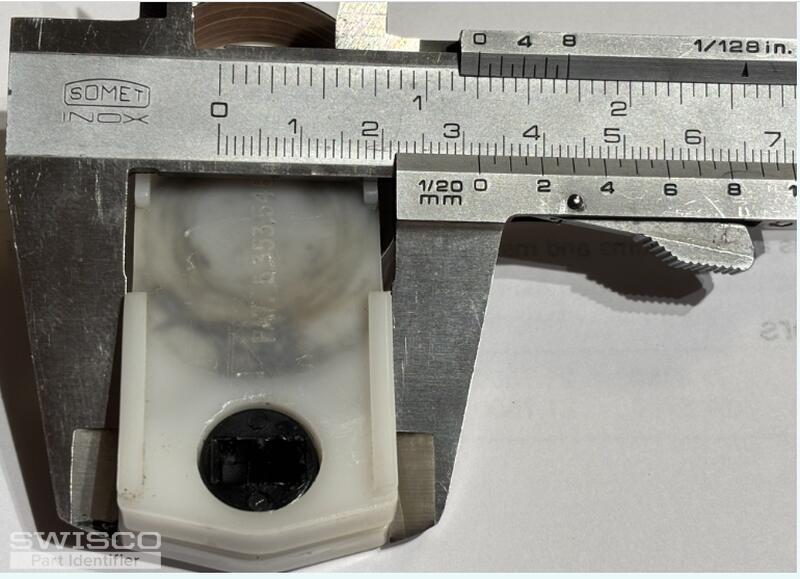

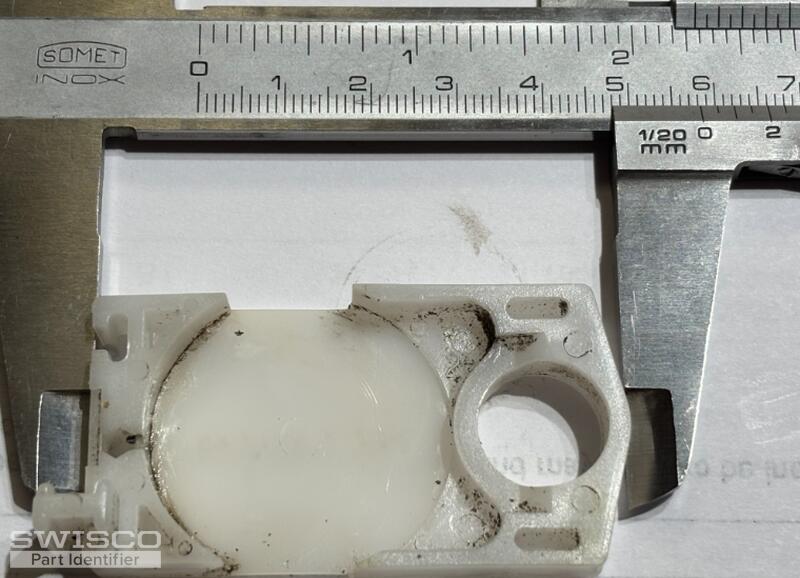

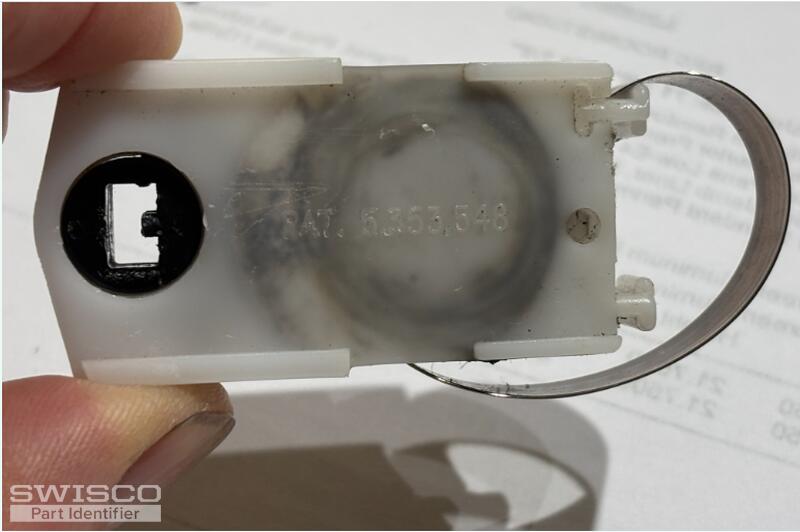

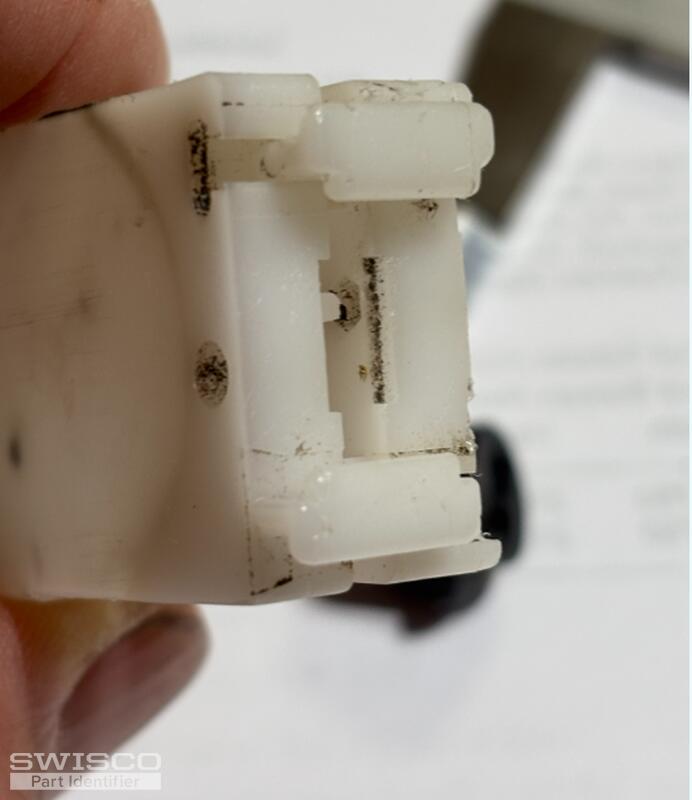

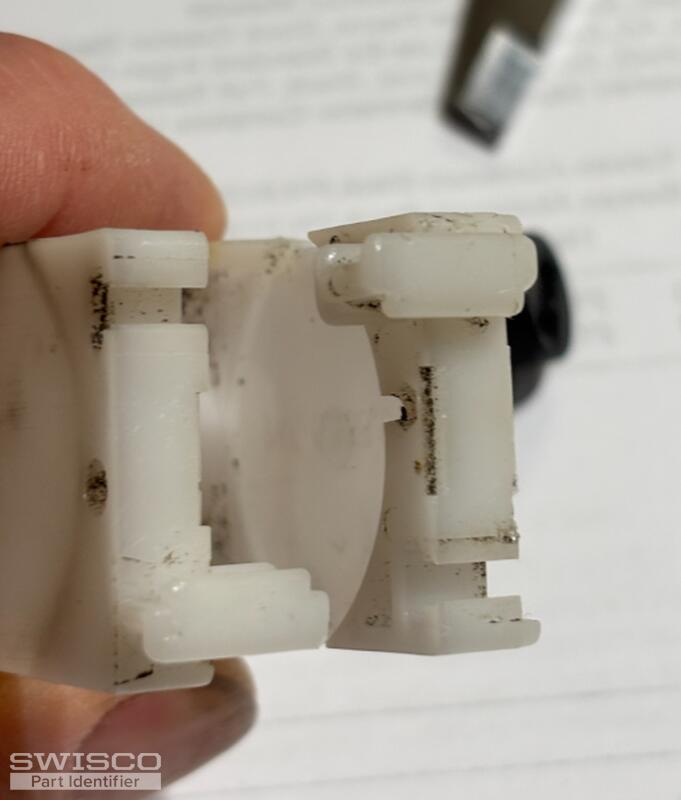

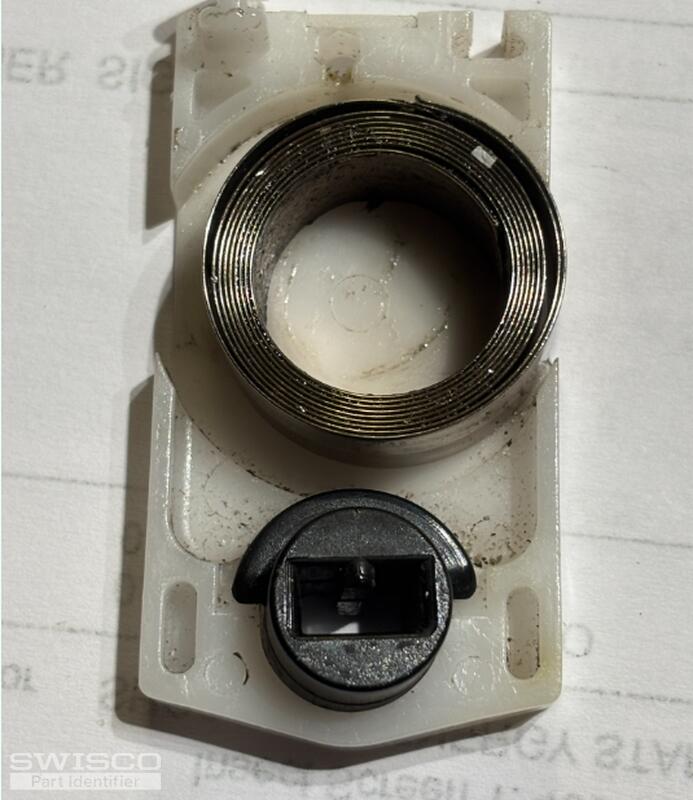

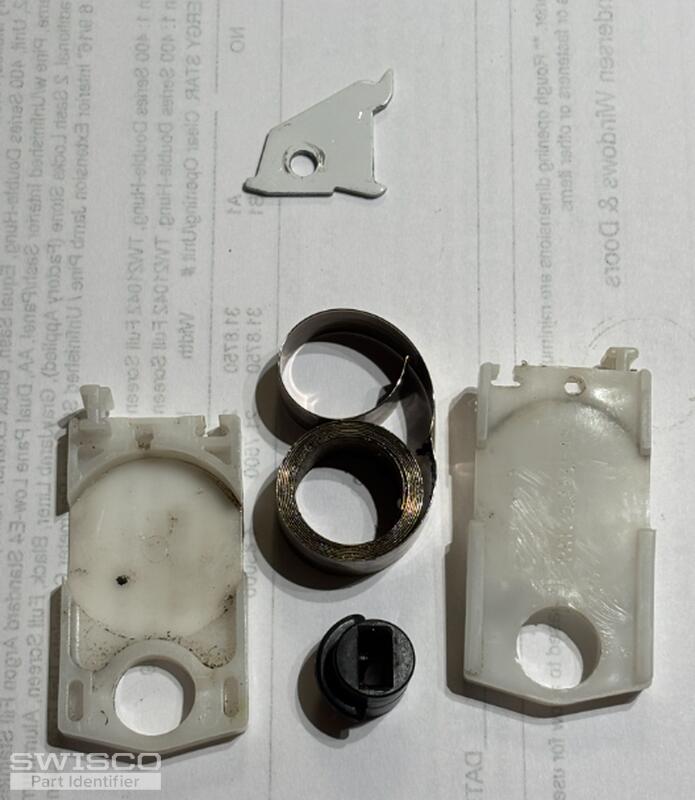

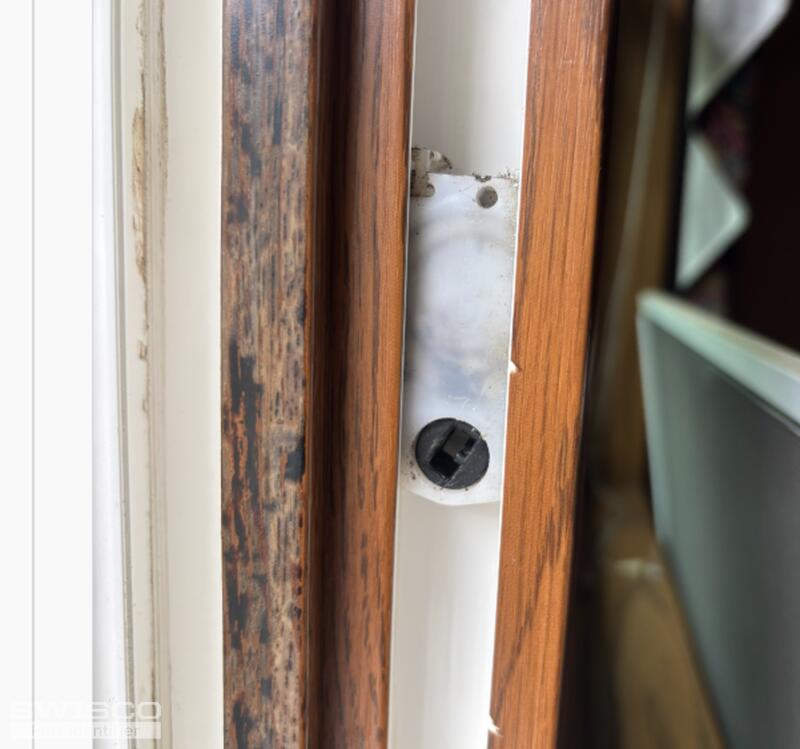

I was able to remove the balance with the broken spring. I attached additional photos with measurements of my balance. No manufacturer name on the part. Just a patent number. The number is 5.353.548. There is no screw or clip that holds the two half together. It looks like H shape “dovetail” connection. If you have a part that would fit, I would need 2 and it should be a 10 lbs. rating. Thank you.

Tom · Accepted Answer

Hello! I'm very confident that we can help with these parts. See our 15-087 shoe, Series 180 coil spring, 16-024 attach bracket, and 26-040 pivot bar.

Please let me know if you had any questions and I'd be happy to assist.
