Help to identify spiral window balancer

Home Owner from Goliad, Texas

Jun 6, 2022 1:32 pm

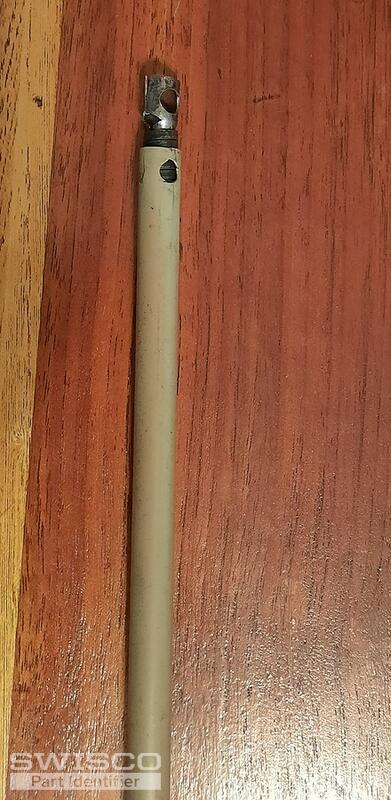

Please help to identify this spiral window balancer

The tube length is 28 1/4"
The tube width is 3/8"

The tube appears to be plastic with a tube spring inside.

Attached are pictures

4 user uploaded images

6 Replies

Casey from SWISCO

Jun 8, 2022 4:08 pm

Hello,

Take a look and compare the S400-28 spiral balance for non-tilt windows to your assembly.

I'd also recommend weighing your window sash and following the chart under the balance product description to choose the corresponding strength color option for your new balances. Thank you!

Home Owner from Goliad, Texas

Jun 12, 2022 10:48 am

If the brass pin at the tip can be removed, then that balancer might work. The balancers in my house all just have an open slot where that pin is in the red S400-28.

The window sash itself just has a hook. The slot on the end of the balancer slides onto that hook on the windows sash. (You can see that in the 2nd photo on the original post)

Casey from SWISCO

Jun 13, 2022 9:54 am

Unfortunately, we can't supply balances with just a hole at the end of the spiral. The S400 and one of the related sash brackets shown on the spiral balance product page would be our best option for the parts shown in your photos.

Home Owner from Goliad, Texas

Jun 14, 2022 8:58 am

Hmmmmm... maybe I'm missing a bracket... I haven't found any in the existing windows (house build in 1970, but I just bought it). Maybe something like the #S 32 Bracket fell out long ago and were lost?

Casey from SWISCO

Jun 14, 2022 9:14 am

That is certainly possible. They can also be hard to see since they sit flush to the side. You may want to double-check any windows that use this kind of hardware to confirm how they are supposed to attach to the sash.
