Quick Learner

Oct 10, 2022 11:38 am

Hello,

I am looking to purchase some Window Balancer Hardware and need some guidance making sure I am selecting the proper style. Details on my Window type are below along with some images of the Balancer mechanism.

Window Manufacturer: HURD
Year of Manufacturer: 2004
Window type : Tilt style

Based on reviewing your website I believe the one I would purchase to replace these is the Series 795 Channel Balancer. Looking for you confirmation this is correct, or if there is another product I should be using.

Thanks

3 user uploaded images

10 Replies

Casey from SWISCO

Oct 13, 2022 1:04 pm

Hello,

I agree that you would use the S795-35 channel balance to replace your balance but it will need to be a custom order since your balance appears to use the 15-198 clip to attach the balance to the window jamb. This clip is not available with our stock S795, but we can have it specially attached for you and attach the 15-224 inverted link at the same time.

To get an order link and price quote together for you, we'll need to confirm the stamp on your metal balance change, as well as the number of balances you need with the minimum being two. If you need new pivot shoes as well, see the 15-216 for this assembly.

Home Owner from Dexter, MI

Nov 4, 2022 12:50 pm

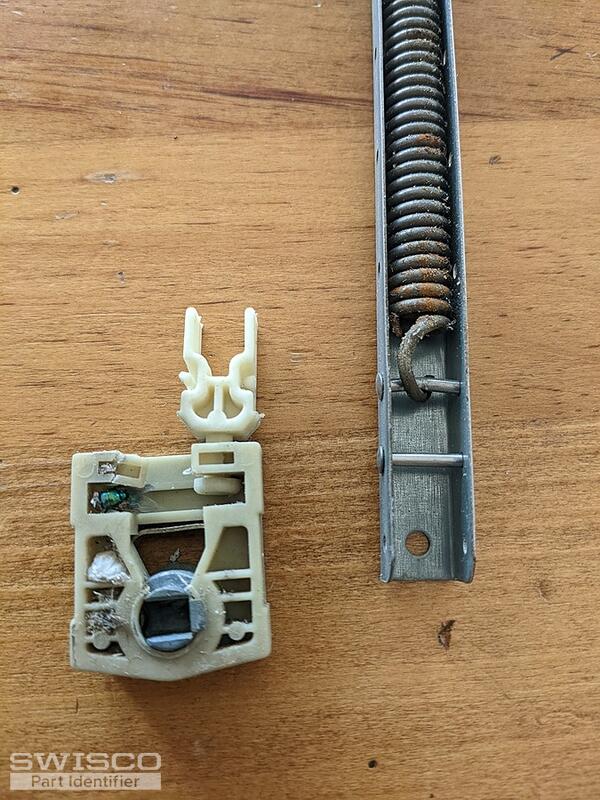

Hello ! The Stamp on my Metal balancer is 35D. After reviewing my situation, I think what I really need is replacement Pivot Shoes and inverted links. If I can get a quote for 10 of each of these items, that would be great.

Thank you!

1 user uploaded image

Casey from SWISCO

Nov 4, 2022 1:06 pm

Luckily, the 15-224 inverted link and 15-216 pivot shoes are available for purchase as stock items. Pricing and bulk discounts can be found directly on our product pages. Thanks for posting.

Home Owner from Dexter, MI

Nov 7, 2022 8:52 am

Thanks, what about the Little Metal Feet used on these windows at the bottom that lock into the Pivot shoe and allow the window to tilt? I need to purchase some of those as well. Thanks!

Casey from SWISCO

Nov 7, 2022 8:57 am

It sounds like you're referring to the pivot bars, which we may be able to supply but we'd need to see an undamaged version of yours removed from the window to compare to our selection.

Home Owner from Dexter, MI

Nov 8, 2022 9:55 am

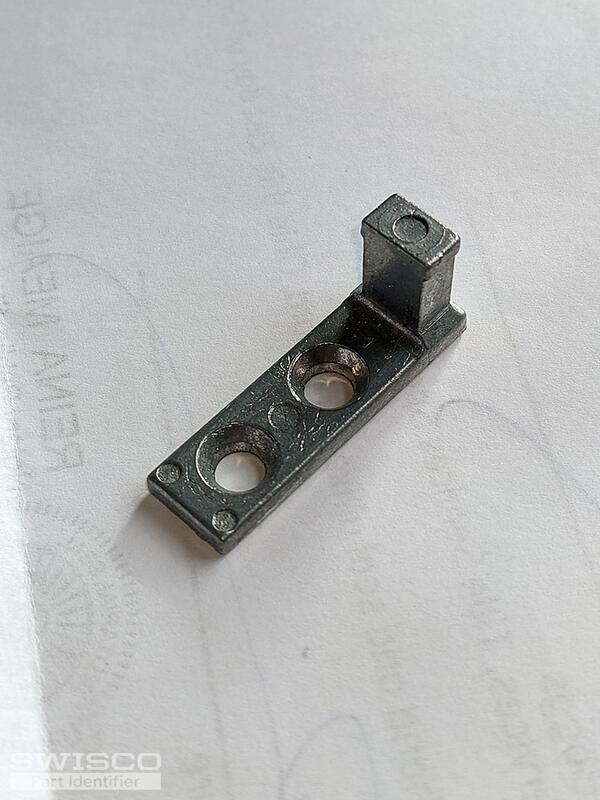

Hello, please find attached metal piece. Hope you can please advise on the Part Number so I can order. Thanks!

1 user uploaded image

Casey from SWISCO

Nov 8, 2022 11:22 am

Take a look and compare the dimensions of the 26-402 pivot bar to yours.

Alternate image for 26-402

Alternate view of 26-402

Home Owner from Dexter, MI

Nov 8, 2022 1:59 pm

The dimensions are different. Do you have other options?

For example, the overall length of 1.25 is actually 1 7/16. Please let me know and I can provide a dimensional comparison if needed. Thx

Casey from SWISCO

Nov 8, 2022 3:55 pm

Unfortunately, the 26-402 would be our best replacement option but the overall height isn't necessarily a deal breaker if you can use at least one of the installation holes to install them. If you decide to give it a try and run into any problems, our return policy can be found here.
