A quick learner from Connnecticut says:
Hi, I think I need the spiral and the parts to attach it to window.
Thumbnail of the uploaded file named 20200523_151145.jpg
Thumbnail of the uploaded file named 20200523_153540.jpg
Thumbnail of the uploaded file named 20200523_155134.jpg
Thumbnail of the uploaded file named 20200523_155252.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

We'd be happy to help but we'll need to see an undamaged spiral balance and pivot shoe removed from the window, as well as the diameter of the balance tube, to identify a replacement for you. Thank you!

A quick learner from Connnecticut says:
Hi there, does this help? (see pictures)

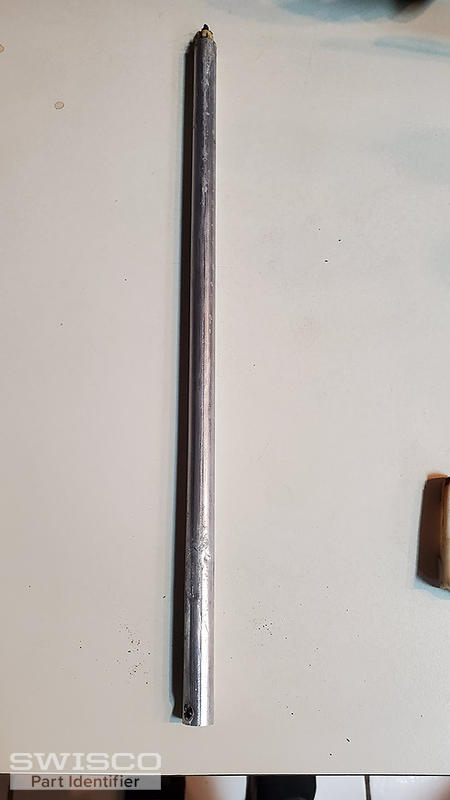

The balance is 15" long and 5/8" wide, with white tip. I think it's the S600-15

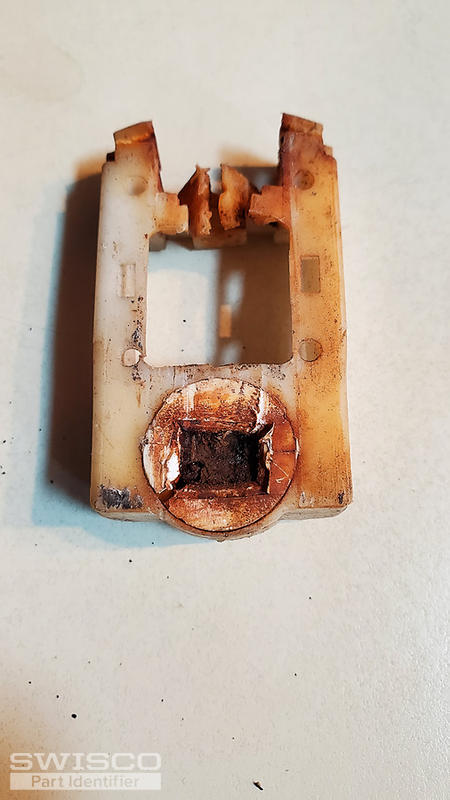

The shoe is 2", 1 1/4", 1/2".
I think it's the 15-046

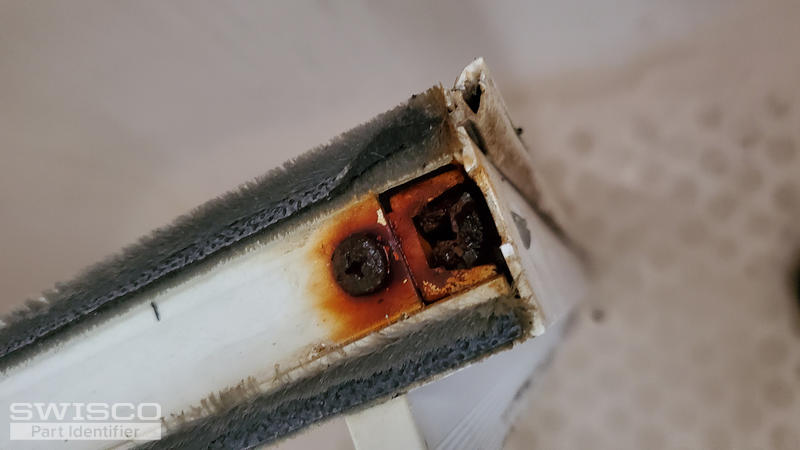

I am guessing the pivot bar is 3", but cannot tell because it's rusted to pieces. In other windows in my house (which are a bit larger), the measure 3"

Please let me know what to do.

Thank you.
Thumbnail of the uploaded file named 20200710_154923.jpg
Thumbnail of the uploaded file named 20200710_154938.jpg
Profile picture of Casey
Casey from SWISCO responded:

Great. Based on your photos and the dimensions you've provided, I agree that the S600-15 with a white tip that supports a sash between 4-11 pounds and the 15-046 pivot shoe would be the way to go. I can't guarantee which pivot bar you need without seeing an undamaged one but you can start with our 26-040 and see if the installation hole placement would work in your sash. Thank you!
