Housing for Triple Spring

A home owner from Sarasota, FL says:

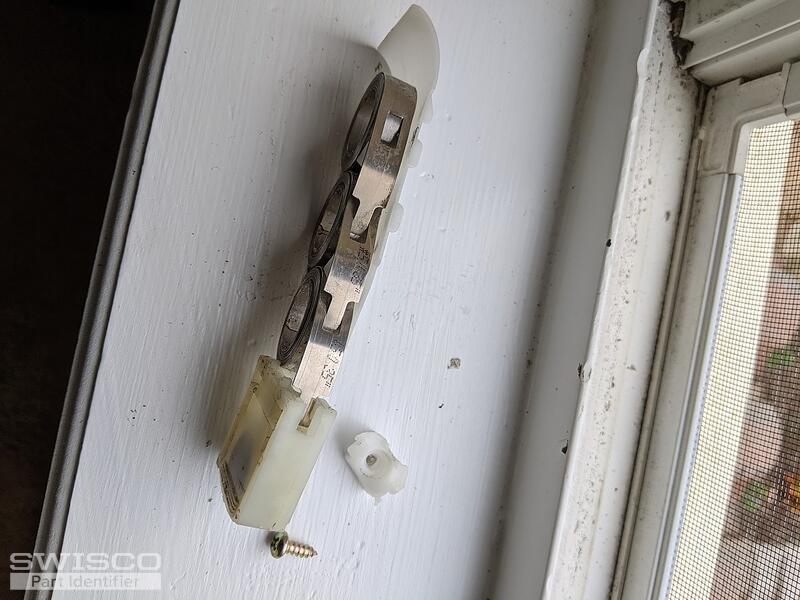

I have a Simonton single hung tilt window with a triple spring balance on each side. Springs are good, shoe is good, the spring housing needs replacement. The housing is 4.5" high x 1.25" wide x 0.5" deep. The springs have #5.0 35" marked on them. Can you provide a part number for the spring housing?
Thank you
Thumbnail of the uploaded file named PXL_20211118_175038224.jpg
Thumbnail of the uploaded file named PXL_20211118_175055046.jpg
Thumbnail of the uploaded file named PXL_20211118_175105510.jpg
Thumbnail of the uploaded file named PXL_20211118_175115870.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello! Take a look at our 15-199 pivot shoe, 3/8" thick Series 165 coil spring, and 15-205 triple spring cover. I think these may be just the parts you want but look them over and let me know what you think.
