Housing for balance support

A quick learner from Pennsylvania, USA says:
October 3, 2022
I need to locate the parts for a Simonton Window, the balance coil assembly housing for triple coil. The coil is 3/8" wide, and it's a triple coil. Everything from the balance assembly housing looks to be intact, except for the housing. Also, if you happen to know what size pan head screw is needed that would be helpful as well. Thanks!
Thumbnail of the uploaded file named 0C929E86-CD8A-4EB4-AFE2-07B9691B6C13.jpeg
Thumbnail of the uploaded file named 45BCB70F-2297-4546-82DE-32B841E9047F.jpeg
Thumbnail of the uploaded file named 0BF775A1-4519-4FBA-92FF-5CB012530461.jpeg

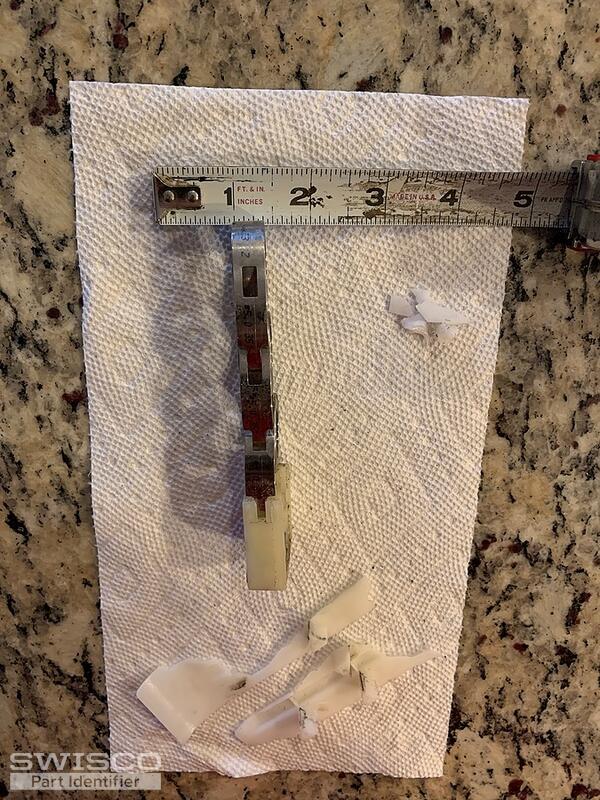

Thumbnail of the uploaded file named ECD10ADD-8872-4943-8D61-7DF5A72EEE8B.jpeg
Profile picture of Tom
Tom from SWISCO responded:
October 6, 2022

Hello! We should definitely be able to help with these parts. See our 15-199 pivot shoe, Series 165 coil spring, and 15-205 triple coil support.

The 15-205 uses a #8 screw, if memory serves, but length tends to be variable. You should take one of the old ones to a local hardware store to have them match it up.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
3/8" Egress Coil Triple Support
3/8" Egress Coil Triple Support
15-205
$2.10
